Amphenol RF 222195 Equivalent & Substitute Parts

Part Overview

The Amphenol RF 222195 is an F Type Connector Plug with male pin configuration, designed for 75 ohm coaxial cable applications. This free hanging (in-line) crimp connector operates at frequencies up to 2 GHz and is compatible with RG-11, 11A, 391, 392, Belden 1620, 1859, 7731, 8213, and 9292 cable groups. The connector is currently in active product status with 965 pieces in stock. Substitute parts are identified to provide alternative sourcing options when the primary part number is unavailable or when inventory requirements necessitate additional suppliers.

Substiute Parts

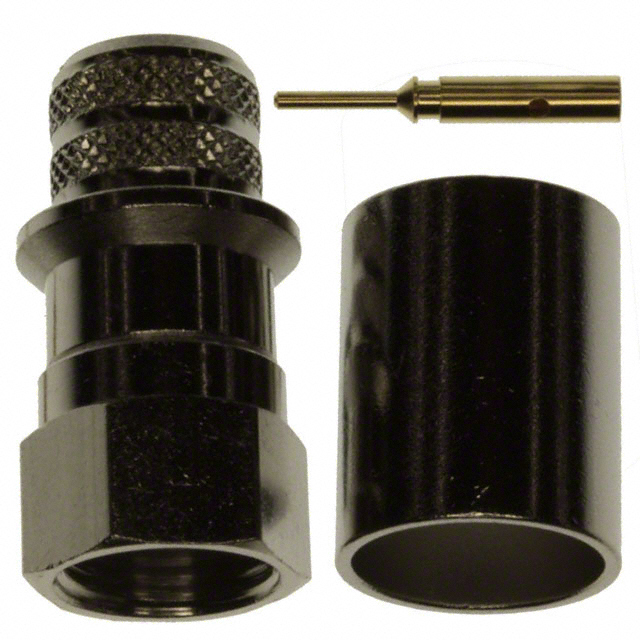

222195

Amphenol RFIn Stock: 1054222195 Datasheet

Current PartRFQ

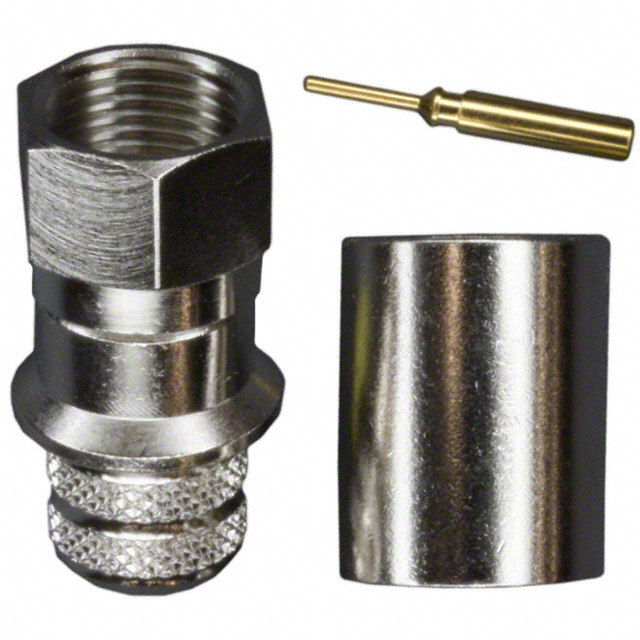

222175

Amphenol RFIn Stock: 1026222175 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Amphenol RF 222195 are identified based on strict electrical and mechanical parameter equivalence. The following parameters determine substitution eligibility:

Critical Matching Parameters:

• Connector Style: F Type
• Connector Type: Plug, Male Pin
• Impedance: 75 Ohms
• Contact Termination: Crimp
• Shield Termination: Crimp
• Mounting Type: Free Hanging (In-Line)
• Frequency - Max: 2 GHz
• Cable Group Compatibility: RG-11, 11A, 391, 392, Belden 1620, 1859, 7731, 8213, 9292
• Fastening Type: Threaded
• Number of Ports: 1

All substitute parts listed maintain identical specifications across these parameters, ensuring direct functional and mechanical compatibility without modification or additional qualification.

Parameter Comparison

Engineering Selection Recommendations

The Amphenol RF 222175 is a direct parametric equivalent to the 222195 and functions as a complete substitute. Both parts are manufactured by Amphenol RF, maintain active product status, and carry identical electrical, mechanical, and material specifications. Both connectors are ROHS3 compliant and REACH affected, meeting current regulatory requirements for electronic component manufacturing and distribution.

Selection between these two part numbers is based on inventory availability and procurement logistics rather than technical performance differences. The 222195 currently maintains higher inventory levels at 965 pieces, while the 222175 has 958 pieces available. Both parts are suitable for immediate deployment in 75 ohm coaxial cable applications requiring F Type male plug connectors with crimp termination.

Frequently Asked Questions (FAQ)

Q: Can the Amphenol RF 222175 be used as a direct replacement for the 222195?

A: Yes. The 222175 is a parametric equivalent with identical electrical and mechanical specifications. All critical parameters including connector style, impedance, termination method, frequency rating, and cable compatibility are identical.

Q: Are there any compatibility issues when substituting the 222175 for the 222195?

A: No compatibility issues exist. Both connectors are F Type male plugs with 75 ohm impedance, crimp termination, and identical cable group support (RG-11, 11A, 391, 392, Belden 1620, 1859, 7731, 8213, 9292).

Q: Do both parts meet the same regulatory and compliance standards?

A: Yes. Both the 222195 and 222175 are ROHS3 compliant, REACH affected, and carry the same ECCN (EAR99) and HTSUS (8536.69.4010) classifications.

Q: What is the maximum frequency rating for these connectors?

A: Both connectors operate at a maximum frequency of 2 GHz, making them suitable for standard RF and coaxial cable applications within this frequency range.

Q: Are the material compositions identical between the two part numbers?

A: Yes. Both connectors feature brass body and center contact materials with nickel body finish and gold center contact plating. The dielectric material is polyoxymethylene (POM) acetal in both cases.

Q: What is the mating cycle rating for these connectors?

A: Both the 222195 and 222175 are rated for 500 mating cycles, indicating their durability for repeated connection and disconnection operations.

Q: How should these connectors be terminated to the cable?

A: Both connectors use crimp termination for both the contact and shield. The connector package includes one connector body, one contact, and one ferrule per unit.

Q: Are there any moisture sensitivity concerns with these connectors?

A: No. Both parts carry a Moisture Sensitivity Level (MSL) rating of 1, which indicates unlimited shelf life without special moisture control requirements.
