TE Connectivity 2-215079-0 Rectangular Connector Equivalent & Substitute Parts

Part Overview

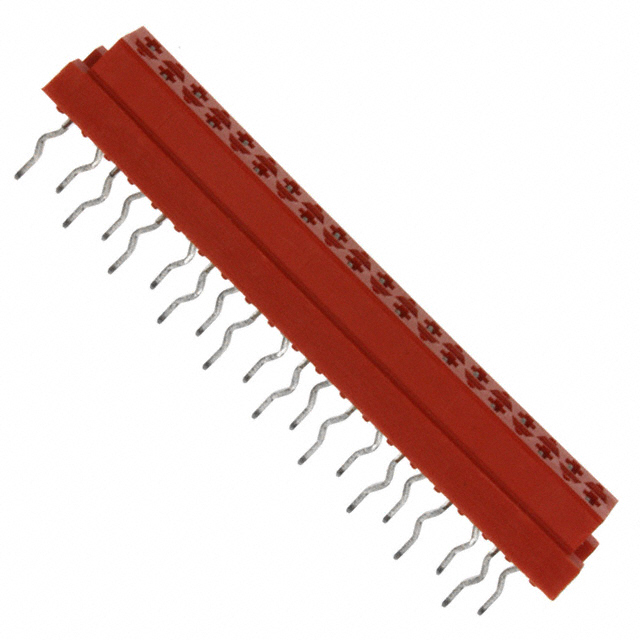

The TE Connectivity 2-215079-0 is a 20-position receptacle connector from the Micro-MaTch series, designed for board-to-board or cable applications. This through-hole mounted connector features a 0.100" (2.54mm) pitch and is rated for automotive and general-purpose use. The part is currently active in production with 2400 units in stock. Substitute parts are identified to provide alternative sourcing options while maintaining electrical and mechanical compatibility with the original specification.

Substiute Parts

2-215079-0

TE Connectivity AMP ConnectorsIn Stock: 24182-215079-0 Datasheet

Current PartRFQ

9-215079-0

TE Connectivity AMP ConnectorsIn Stock: 31179-215079-0 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 2-215079-0 are identified based on strict equivalence across the following critical parameters:

Electrical Compatibility Parameters:

• Connector type (Receptacle)
• Number of positions (20)
• Pitch specification (0.100" / 2.54mm)
• Voltage rating (100VDC)
• Operating temperature range (-40°C ~ 105°C)

Mechanical Compatibility Parameters:

• Number of rows (2)
• Row spacing (0.100" / 2.54mm)
• Mounting type (Through Hole)
• Termination method (Kinked Pin, Solder)
• Fastening type (Push-Pull)
• Insulation height (0.157" / 4.00mm)
• Contact length - post (0.122" / 3.10mm)

Material & Compliance Parameters:

• Contact material (Phosphor Bronze)
• Contact finish (Tin)
• Insulation material (Polybutylene Terephthalate, Polyester, Glass Filled)
• Flammability rating (UL94 V-0)
• RoHS compliance (ROHS3 Compliant)

Substitute parts must match all parameters listed above to ensure direct interchangeability without circuit redesign or mechanical modification.

Parameter Comparison

Engineering Selection Recommendations

Both the 2-215079-0 and 9-215079-0 are active production parts manufactured by TE Connectivity and are fully compliant with ROHS3 requirements. The parts are electrically and mechanically identical across all specified parameters, including connector configuration, pitch, voltage rating, temperature range, and material specifications.

Selection between these parts is based on availability and supply chain requirements. The 9-215079-0 substitute offers higher inventory availability at 3100 units compared to 2400 units for the main part number. Both parts carry identical compliance certifications and are suitable for automotive and general-purpose applications.

No design modifications, circuit changes, or mechanical adjustments are required when substituting between these part numbers. The parts are direct replacements in terms of form, fit, and function.

Frequently Asked Questions (FAQ)

Q: Are the 2-215079-0 and 9-215079-0 connectors electrically interchangeable?

A: Yes. Both connectors are identical in electrical specifications, including 20-position configuration, 0.100" pitch, 100VDC voltage rating, and -40°C to 105°C operating temperature range. They can be used interchangeably in the same circuit without modification.

Q: Can I substitute 9-215079-0 for 2-215079-0 on an existing PCB design?

A: Yes. The connectors are mechanically identical with matching through-hole mounting specifications, insulation height, contact post length, and fastening type. No PCB layout changes are required.

Q: What is the difference between these two part numbers?

A: The part numbers differ only in their prefix designation (2- versus 9-). All electrical, mechanical, and material specifications are identical. Both are manufactured by TE Connectivity in the Micro-MaTch series.

Q: Are both parts RoHS compliant?

A: Yes. Both 2-215079-0 and 9-215079-0 are ROHS3 compliant with tin contact finish and phosphor bronze contact material.

Q: Which part should I order if both are available?

A: Selection can be based on inventory availability and supply chain lead times. The 9-215079-0 currently has higher stock levels at 3100 units. Both parts are active production items with identical specifications.

Q: Do these connectors require any special handling or storage?

A: Both parts carry Moisture Sensitivity Level (MSL) 1, indicating unlimited shelf life with no special moisture control requirements during storage or handling.

Q: Can these receptacle connectors be used for both board-to-board and cable applications?

A: Yes. Both connectors are specified for board-to-board or cable style applications with push-pull fastening and kinked pin solder termination.
