TE Connectivity AMP Connectors 2213301-2 Equivalent & Substitute Parts

Part Overview

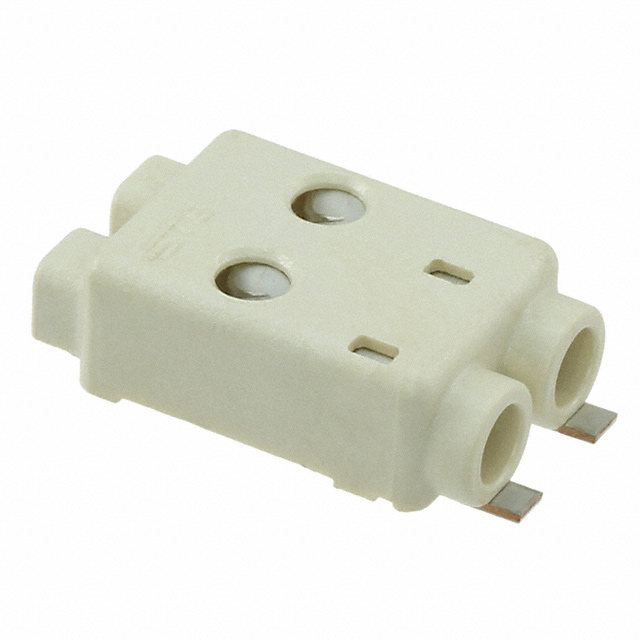

The TE Connectivity AMP Connectors 2213301-2 is a Solid State Lighting (SSL) Connector classified as a 2 Position Receptacle with Poke-In Wire termination. This connector is designed for Board to Cable/Wire applications with a 0.157" (4.00mm) pitch and solder termination method. The part is currently listed as Obsolete, necessitating identification of active equivalent alternatives that maintain functional compatibility within the specified electrical and mechanical parameters.

Substiute Parts

2213301-2

TE Connectivity AMP ConnectorsIn Stock: 9182213301-2 Datasheet

Current PartRFQ

2834006-2

TE Connectivity AMP ConnectorsIn Stock: 393972834006-2 Datasheet

MFR RecommendedRFQ

2834385-2

TE Connectivity AMP ConnectorsIn Stock: 17972834385-2 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete 2213301-2 connector is determined by strict alignment of the following critical parameters:

Mandatory Matching Parameters:

• Connector Type: Receptacle, Poke-In Wire
• Number of Positions: 2
• Pitch: 0.157" (4.00mm)
• Termination Method: Solder
• Wire Gauge Compatibility: 18 AWG, 20 AWG, 22 AWG
• Contact Material: Copper Alloy
• Contact Finish: Tin
• Operating Temperature Range: -40°C ~ 105°C
• Moisture Sensitivity Level: 1 (Unlimited)

Acceptable Parameter Variations:

• Housing Material: Original uses Liquid Crystal Polymer (LCP); substitutes use Resin
• Housing Color: Original is White; substitutes are Natural
• Voltage Rating: Original is 600V; substitutes are 400V (lower rating acceptable for equivalent applications)
• Current Rating: Original supports 5A and 9A; substitutes support 5A/6A or 6A (lower ratings acceptable for equivalent applications)
• Mounting Type: Original specifies Surface Mount, Right Angle; substitute 2834385-2 specifies Surface Mount only
• Product Status: Original is Obsolete; substitutes are Active

The substitute parts 2834006-2 and 2834385-2 maintain functional equivalence through identical connector geometry, termination method, and wire gauge compatibility while offering active product status and improved availability.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: 2834006-2

The 2834006-2 is the manufacturer-recommended primary substitute for the obsolete 2213301-2. This part maintains full compatibility across all critical connector parameters including connector type, position count, pitch, termination method, and wire gauge specifications. The part is currently in Active product status with substantial inventory availability (39,373 pieces). It carries ROHS3 Compliant certification and REACH Unaffected status, meeting current regulatory requirements. The voltage rating reduction from 600V to 400V and current rating adjustment from 5A/9A to 5A/6A are acceptable for equivalent SSL connector applications. The housing material change from LCP to Resin and color change from White to Natural do not affect electrical or mechanical compatibility.

Secondary Substitute: 2834385-2

The 2834385-2 serves as an alternative substitute with Active product status and Tape & Reel packaging suitable for automated assembly processes. This part maintains identical connector geometry, termination method, and wire gauge compatibility. The current rating specification of 6A and voltage rating of 400V are consistent with the primary substitute. The mounting type specification lists Surface Mount without explicit right-angle designation, requiring verification of mechanical fit in applications requiring right-angle orientation. RoHS Compliance is confirmed; however, operating temperature range is not specified in available documentation.

Selection Criteria:

For applications requiring confirmed right-angle mounting geometry and specified operating temperature range documentation, 2834006-2 is the preferred selection. For high-volume automated assembly applications, 2834385-2 with Tape & Reel packaging offers manufacturing efficiency. Both substitutes provide active product status, eliminating obsolescence risk associated with the original 2213301-2 part.

Frequently Asked Questions (FAQ)

Q: Can 2834006-2 or 2834385-2 directly replace 2213301-2 in existing designs?

A: Both substitute parts maintain functional equivalence through identical connector type, position count, pitch, termination method, and wire gauge specifications. The housing material and color differences do not affect electrical or mechanical performance. Designs operating at voltages below 400V and currents at or below 6A are fully compatible. Designs requiring the original 600V or 9A ratings require electrical circuit review.

Q: What is the difference between 2834006-2 and 2834385-2?

A: Both parts are functionally equivalent SSL connectors with identical connector specifications. The primary differences are packaging format (2834006-2 uses Cut Tape; 2834385-2 uses Tape & Reel) and mounting type specification (2834006-2 explicitly specifies Surface Mount, Right Angle; 2834385-2 specifies Surface Mount only). Inventory levels differ significantly, with 2834006-2 offering substantially higher availability.

Q: Are there any compliance or regulatory differences between the main part and substitutes?

A: All three parts are RoHS Compliant. The 2834006-2 carries ROHS3 Compliant certification and REACH Unaffected status, representing current regulatory alignment. The 2213301-2 and 2834385-2 show RoHS Compliant status with REACH status listed as Vendor Undefined. For applications requiring REACH documentation, 2834006-2 is the preferred selection.

Q: What wire gauges are supported by the substitute connectors?

A: Both 2834006-2 and 2834385-2 support 18 AWG, 20 AWG, and 22 AWG wire gauges, matching the original 2213301-2 specification. Wire gauge compatibility is maintained across all three parts.

Q: How does the housing material change from LCP to Resin affect performance?

A: The housing material change from Liquid Crystal Polymer (LCP) to Resin does not affect electrical performance or mechanical compatibility. Both materials provide adequate insulation and structural integrity for SSL connector applications. The material change reflects manufacturing process updates while maintaining functional equivalence.

Q: What is the significance of the voltage rating reduction from 600V to 400V?

A: The substitute parts are rated for 400V operation compared to the original 600V rating. For applications operating at voltages of 400V or below, the substitutes provide equivalent performance. Applications requiring operation above 400V require circuit design review to confirm compatibility with the lower voltage rating.

Q: Are the substitute parts available in different packaging formats?

A: Yes. The 2834006-2 is available in Cut Tape (CT) packaging, suitable for manual or semi-automated assembly. The 2834385-2 is available in Tape & Reel (TR) packaging, optimized for high-speed automated assembly processes. Packaging selection depends on manufacturing process requirements.

Q: What is Moisture Sensitivity Level 1 (Unlimited)?

A: Moisture Sensitivity Level 1 (Unlimited) indicates that the connector components do not require moisture-controlled storage or handling. These parts can be stored and handled under standard environmental conditions without special desiccant packaging or humidity control requirements.
