TE Connectivity 2-1969594-6 Rectangular Connector Housing Equivalent & Substitute Parts

Part Overview

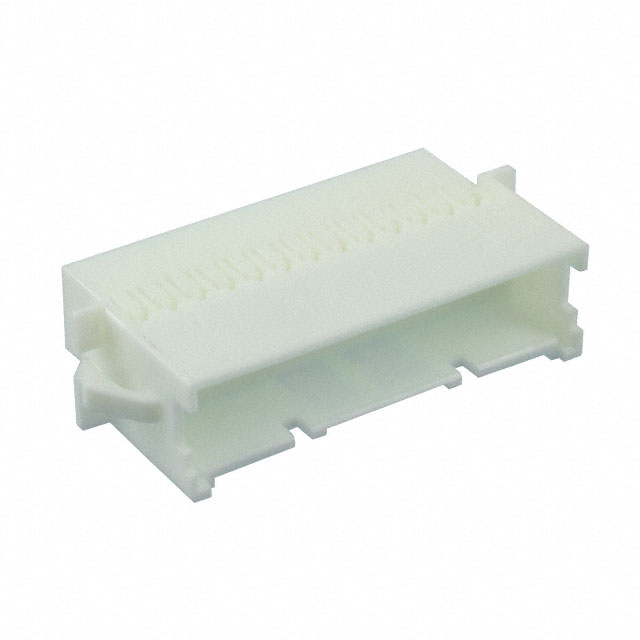

The TE Connectivity 2-1969594-6 is a 26-position rectangular connector receptacle housing from the Economy Power 2.5 series. This component serves as the housing structure for rectangular connectors in applications requiring panel-mounted, snap-in connectivity solutions. The part is manufactured from polyamide (PA) nylon material and operates across an industrial temperature range of -55°C to 105°C.

The 2-1969594-6 maintains Active product status with ROHS3 compliance and unlimited moisture sensitivity rating (MSL 1). Equivalent substitute parts are identified based on matching electrical and mechanical parameters while accommodating specific application requirements such as color specification and inventory availability.

Substiute Parts

2-1969594-6

TE Connectivity AMP ConnectorsIn Stock: 7142-1969594-6 Datasheet

Current PartRFQ

2-1969595-6

TE Connectivity AMP ConnectorsIn Stock: 8412-1969595-6 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 2-1969594-6 are identified through parametric equivalence across all critical electrical and mechanical specifications. The substitution logic is based on the following matching criteria:

Matching Parameters:

• Connector type (Receptacle)
• Number of positions (26)
• Pitch specification (0.098" / 2.50mm)
• Number of rows (2)
• Row spacing (0.098" / 2.50mm)
• Mounting configuration (Panel Mount, Snap-In)
• Contact termination method (Crimp)
• Fastening mechanism (Latch Holder)
• Insulation material (Polyamide / Nylon)
• Operating temperature range (-55°C to 105°C)
• Compliance certifications (ROHS3, MSL 1)
• Series classification (Economy Power 2.5)

The identified substitute part differs only in housing color specification, which does not affect electrical or mechanical performance. Both parts are manufactured by TE Connectivity AMP Connectors and maintain identical functional characteristics.

Parameter Comparison

Engineering Selection Recommendations

Both the 2-1969594-6 and 2-1969595-6 maintain Active product status with full ROHS3 compliance and MSL 1 rating. Selection between these parts is determined by application-specific color requirements and inventory availability.

The 2-1969594-6 (White housing) is suitable for applications where color coding or visual identification requires white connector housings. The 2-1969595-6 (Natural housing) serves applications where natural-colored housings are specified or preferred.

Both parts are manufactured to identical electrical and mechanical specifications within the Economy Power 2.5 series. The choice between them does not impact connector performance, mating characteristics, or environmental compliance. Selection should be based on documented color requirements in the assembly specification or design documentation.

Frequently Asked Questions (FAQ)

Q: Can the 2-1969595-6 be used as a direct replacement for the 2-1969594-6?

A: Yes, the 2-1969595-6 is a parametric equivalent substitute. All electrical and mechanical specifications are identical. The only difference is housing color (Natural versus White). Substitution is valid when color specification is not a critical design requirement.

Q: What is the primary difference between these two connector housings?

A: The housing color differs between the parts. The 2-1969594-6 features a white housing, while the 2-1969595-6 has a natural-colored housing. All other specifications, including connector type, position count, pitch, mounting method, and operating characteristics, are identical.

Q: Are both parts suitable for the same operating temperature range?

A: Yes. Both the 2-1969594-6 and 2-1969595-6 operate across the identical temperature range of -55°C to 105°C. Temperature performance is not a differentiating factor between these parts.

Q: Do these connector housings include contacts?

A: No. Both the 2-1969594-6 and 2-1969595-6 are housing-only components. Contacts are not included and must be sourced separately. The housings are designed for crimp-type contact termination.

Q: What is the significance of the 2.50mm pitch specification?

A: The 0.098" (2.50mm) pitch defines the center-to-center spacing between adjacent contact positions. This specification is identical for both parts and determines compatibility with mating connectors and contact sets within the Economy Power 2.5 series.

Q: Are both parts RoHS compliant?

A: Yes. Both the 2-1969594-6 and 2-1969595-6 are ROHS3 compliant and carry MSL 1 (Unlimited) moisture sensitivity rating, indicating no special moisture handling requirements during storage or assembly.
