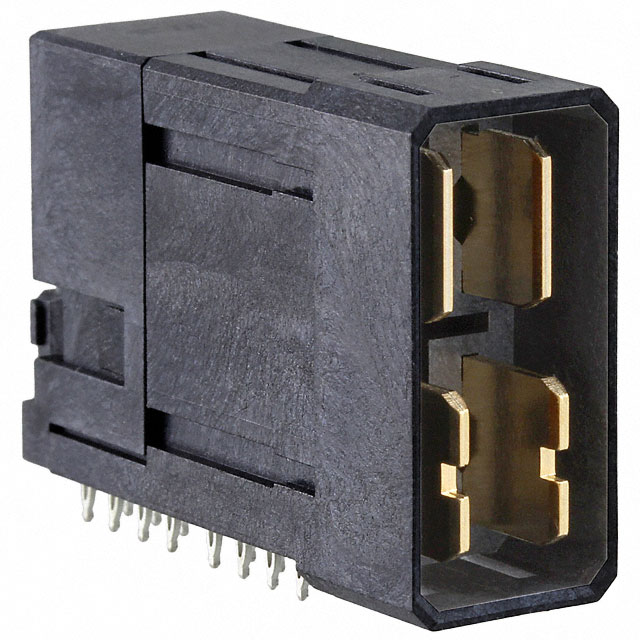

The TE Connectivity AMP Connectors 2169869-4 is a 4-position connector header with male blades designed for board edge mounting applications. This backplane connector features through-hole, right-angle termination with press-fit contact technology and is part of the Impact series. The part is classified as obsolete, making identification of equivalent and substitute components necessary for ongoing system support, maintenance, and new design implementations where legacy compatibility is required.

Substiute Parts

2169869-4

TE Connectivity AMP ConnectorsIn Stock: 11182169869-4 Datasheet

Current PartRFQ

2169802-4

TE Connectivity AMP ConnectorsIn Stock: 9182169802-4 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 2169869-4 is determined by strict equivalence across the following critical parameters:

Connector Architecture: Connector type (Header, Male Blades), connector style (Blade Power), and number of positions (4) must remain identical to ensure mechanical and electrical compatibility with mating receptacles.

Physical Configuration: Mounting type (Board Edge, Through Hole, Right Angle), number of columns (2), and contact layout (4 Power) must match to ensure proper board integration and signal routing.

Material and Environmental Specifications: Contact finish (Gold, 30.0µin thickness), color (Black), material flammability rating (UL94 V-0), and operating temperature range (-55°C to 85°C) must be maintained to preserve reliability and regulatory compliance.

Termination Technology: Press-fit termination must be preserved to ensure compatibility with existing board designs and assembly processes.

Regulatory Compliance: RoHS3 compliance and Moisture Sensitivity Level 1 must be maintained for environmental and handling consistency.

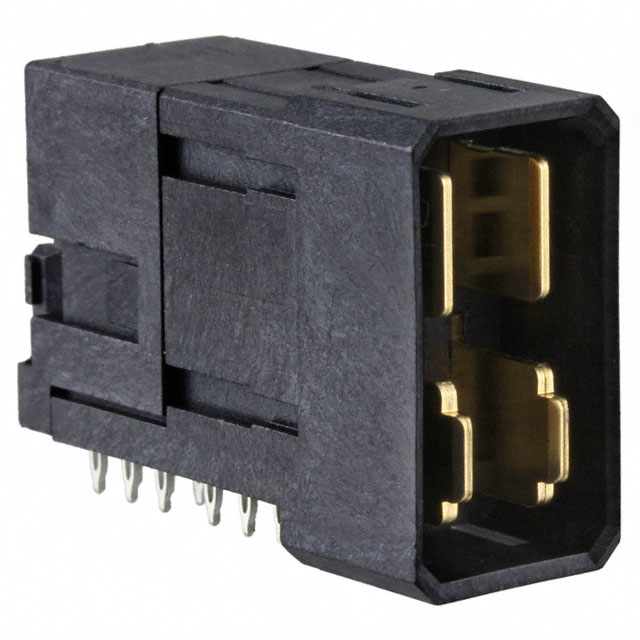

The substitute part 2169802-4 meets all these criteria and is therefore a direct functional equivalent.

Parameter Comparison

Engineering Selection Recommendations

The 2169802-4 is a direct functional equivalent to the obsolete 2169869-4. Both parts are manufactured by TE Connectivity AMP Connectors within the Impact series and share identical electrical, mechanical, and environmental specifications.

Product Status Consideration: The 2169869-4 is classified as obsolete, while the 2169802-4 maintains active product status. This distinction is significant for long-term supply chain planning and component availability. Selection of the active substitute part ensures continued access to inventory and manufacturing support.

Regulatory and Compliance Alignment: Both parts maintain ROHS3 compliance, identical flammability ratings (UL94 V-0), and equivalent moisture sensitivity levels. No compliance gaps exist between the main part and substitute.

Packaging Difference: The 2169869-4 is supplied without specified packaging, while the 2169802-4 is supplied in bulk packaging. This difference does not affect functional compatibility but may influence procurement and handling procedures.

Inventory Availability: The 2169802-4 currently maintains 904 units in stock, providing immediate availability for component replacement and new system builds.

For applications requiring the 4-position blade power connector header with board edge, through-hole, right-angle mounting and press-fit termination, the 2169802-4 provides complete functional equivalence to the obsolete 2169869-4.
