TE Connectivity AMP Connectors 2-1658014-1 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 2-1658014-1 is a 40 Position Connector Plug with outer shroud contacts designed for surface mount applications. This rectangular connector is part of the MICTOR series and features gold-plated contacts with a 0.031" (0.80mm) pitch configuration across 2 rows. The component is classified as Active product status with full RoHS compliance and MSL 1 rating, indicating unlimited shelf life under standard storage conditions. Substitute parts are identified when original inventory becomes unavailable, when procurement lead times require alternative sourcing, or when equivalent specifications from the same manufacturer series are needed to maintain design compatibility and performance standards.

Substiute Parts

2-1658014-1

TE Connectivity AMP ConnectorsIn Stock: 7622-1658014-1 Datasheet

Current PartRFQ

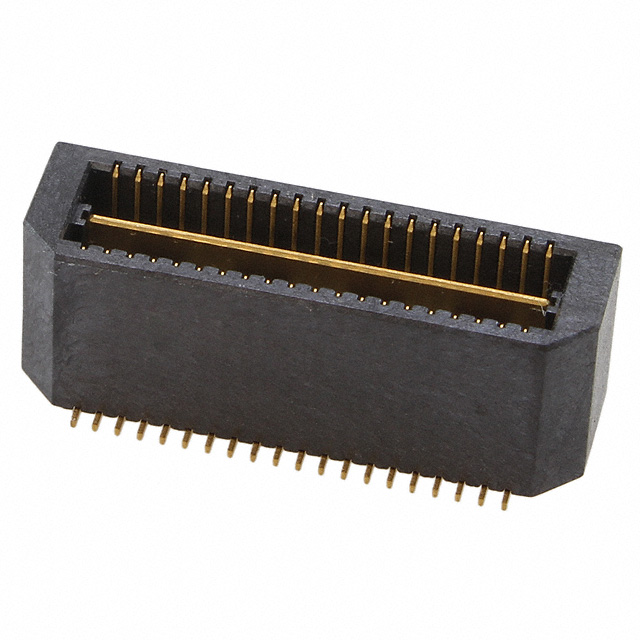

1658014-1

TE Connectivity AMP ConnectorsIn Stock: 8221658014-1 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TE Connectivity AMP Connectors 2-1658014-1 is determined by strict equivalence across all critical electrical and mechanical parameters. The following parameters establish the substitution criteria:

Electrical Parameters:

• Connector Type: Plug, Outer Shroud Contacts
• Number of Positions: 40
• Pitch: 0.031" (0.80mm)
• Number of Rows: 2
• Contact Finish: Gold
• Contact Finish Thickness: 10.0µin (0.25µm)

Mechanical Parameters:

• Mounting Type: Surface Mount
• Mated Stacking Height: 8mm
• Height Above Board: 0.278" (7.06mm)
• Features: Board Guide, Ground Bus (Plane)

Compliance Parameters:

• Series: MICTOR
• Category: Rectangular Connectors
• RoHS Status: RoHS Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

Substitute parts must match all parameters listed above to ensure functional and physical compatibility within the original design application. Parts are grouped within the same manufacturer series to maintain connector interface standards and mating characteristics.

Parameter Comparison

Engineering Selection Recommendations

Both the main part 2-1658014-1 and the substitute part 1658014-1 are classified as Active products from TE Connectivity AMP Connectors within the MICTOR series. Both components meet RoHS compliance requirements, with the substitute part carrying ROHS3 certification, indicating compliance with the most current RoHS directive standards. Both parts maintain MSL 1 rating, permitting unlimited shelf life storage without moisture sensitivity constraints.

The substitute part 1658014-1 demonstrates equivalent electrical and mechanical specifications across all critical parameters, including connector type, position count, pitch, row configuration, mounting method, contact finish specifications, and physical dimensions. The higher inventory availability of the substitute part (803 pieces versus 663 pieces) provides improved procurement flexibility.

Selection between these parts should be based on procurement availability, lead time requirements, and inventory management objectives, as both components satisfy identical functional and compliance requirements for the MICTOR 40-position surface mount connector application.

Frequently Asked Questions (FAQ)

Q: What determines if a part can substitute for the 2-1658014-1?

A: A substitute part must match all electrical and mechanical parameters of the original component, including connector type (Plug, Outer Shroud Contacts), position count (40), pitch (0.031"/0.80mm), row configuration (2 rows), mounting type (Surface Mount), contact finish (Gold at 10.0µin thickness), stacking height (8mm), board height (0.278"/7.06mm), and integrated features (Board Guide, Ground Bus Plane). The part must also maintain equivalent RoHS and MSL compliance status.

Q: Is the 1658014-1 a direct replacement for 2-1658014-1?

A: The 1658014-1 is a parametric equivalent with identical electrical and mechanical specifications. Both parts are manufactured by TE Connectivity AMP Connectors within the MICTOR series and share all critical connector interface characteristics, physical dimensions, and compliance certifications.

Q: What is the difference between RoHS and ROHS3 compliance?

A: Both designations indicate RoHS compliance. ROHS3 represents compliance with the most current RoHS directive revision. Both the main part and substitute part meet RoHS requirements; the substitute carries the updated certification designation.

Q: Can these connectors be used interchangeably in existing designs?

A: Yes. The 1658014-1 substitute part maintains identical specifications across all connector interface parameters, physical mounting dimensions, and electrical characteristics. No design modifications are required for substitution.

Q: What does MSL 1 rating mean for storage and handling?

A: MSL 1 (Moisture Sensitivity Level 1) indicates unlimited shelf life. These components do not require special moisture-controlled storage conditions and can be stored under standard environmental conditions without time-based restrictions.

Q: Are there any differences in the connector pitch or row spacing between these parts?

A: No. Both parts maintain identical pitch specifications of 0.031" (0.80mm) and identical 2-row configuration. Physical spacing and mating characteristics are equivalent.

Q: What is the significance of the Board Guide and Ground Bus features?

A: These features are integrated into both the main part and substitute part. The Board Guide provides mechanical alignment during PCB assembly, and the Ground Bus (Plane) provides integrated grounding functionality. Both parts include these features identically.
