TE Connectivity 2-1586000-2 Rectangular Connector Plug Housing Equivalent & Substitute Parts

Part Overview

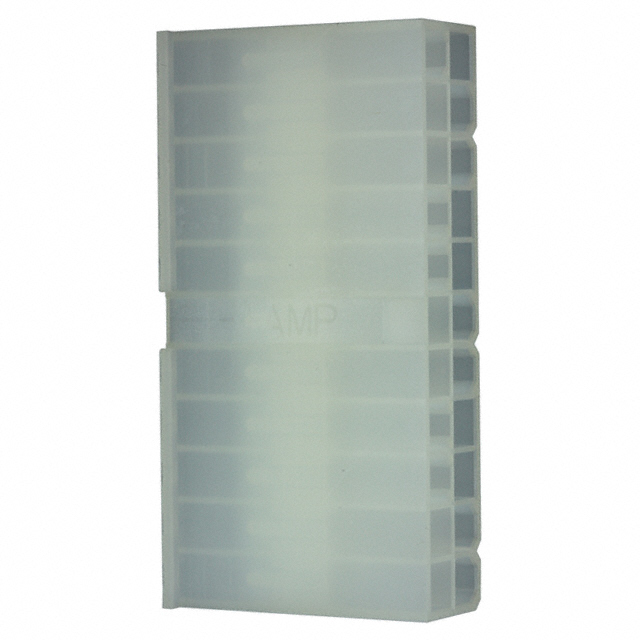

The TE Connectivity 2-1586000-2 is a 22-position rectangular connector plug housing from the VAL-U-LOK series. This connector is designed for free-hanging in-line applications with crimp contact termination and locking ramp fastening. The part is currently in active product status with 1099 units in stock.

Substitute parts become necessary when the primary part number reaches end-of-life status, when inventory becomes constrained, or when design revisions require alternative housing configurations while maintaining electrical and mechanical compatibility. The substitute parts listed maintain identical functional parameters within the VAL-U-LOK connector family.

Substiute Parts

2-1586000-2

TE Connectivity AMP ConnectorsIn Stock: 11522-1586000-2 Datasheet

Current PartRFQ

2-1969598-2

TE Connectivity AMP ConnectorsIn Stock: 11262-1969598-2 Datasheet

Parametric EquivalentRFQ

2-1969612-2

TE Connectivity AMP ConnectorsIn Stock: 8422-1969612-2 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 2-1586000-2 connector plug housing is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Connector type (Plug)
• Number of positions (22)
• Pitch (0.165" / 4.20mm)
• Number of rows (2)
• Row spacing (0.165" / 4.20mm)
• Contact type (Male Pin)
• Mounting type (Free Hanging In-Line)
• Contact termination (Crimp)
• Fastening type (Locking Ramp)
• Operating temperature range (-40°C to 105°C)
• Color (Natural)
• Moisture sensitivity level (1 - Unlimited)

All substitute parts identified maintain these parameters without deviation. Variations in insulation material composition (PA versus PA66 Nylon 6/6) and product status (Active versus Obsolete) do not affect mechanical or electrical interchangeability within the VAL-U-LOK series, as both materials meet the specified operating temperature and environmental requirements.

Parameter Comparison

Engineering Selection Recommendations

Primary Selection: 2-1586000-2

The 2-1586000-2 remains the preferred selection as the active product with the highest current inventory (1099 units). This part carries RoHS Compliant certification and is actively supported by TE Connectivity.

Secondary Selection: 2-1969612-2

The 2-1969612-2 serves as the recommended substitute when 2-1586000-2 becomes unavailable. This part maintains active product status with ROHS3 Compliant certification, indicating compliance with the latest RoHS directives. Inventory of 770 units is available. Both parts are supplied in bulk packaging and are mechanically and electrically interchangeable.

Tertiary Selection: 2-1969598-2

The 2-1969598-2 is classified as obsolete and should be selected only when the primary and secondary options are exhausted. While this part maintains full electrical and mechanical compatibility, its obsolete status indicates limited future availability and potential supply chain constraints. ROHS3 Compliant certification is current. Inventory of 1030 units is available.

All three parts are suitable for direct substitution in applications requiring a 22-position VAL-U-LOK rectangular connector plug housing with the specified electrical and mechanical parameters.

Frequently Asked Questions (FAQ)

Q: Can 2-1969612-2 be used as a direct replacement for 2-1586000-2?

A: Yes. The 2-1969612-2 is a direct mechanical and electrical substitute. Both parts share identical connector type, position count, pitch, row configuration, contact type, mounting method, termination style, and fastening mechanism. The insulation material composition differs (PA66 versus PA), but both materials satisfy the -40°C to 105°C operating temperature range and MSL 1 moisture sensitivity requirement.

Q: What is the difference between the insulation materials used in these parts?

A: The 2-1586000-2 uses Polyamide (PA) Nylon, while 2-1969612-2 and 2-1969598-2 use Polyamide (PA66) Nylon 6/6. Both materials are polyamide-based and meet the specified operating temperature and environmental performance requirements for this connector series.

Q: Why is 2-1969598-2 marked as obsolete?

A: The obsolete status indicates that TE Connectivity has discontinued active production and support for this part number. While existing inventory remains available, future procurement may become difficult. The 2-1969612-2 represents the current active equivalent.

Q: Are there packaging differences between these parts?

A: The 2-1586000-2 and 2-1969612-2 are supplied in bulk packaging. The 2-1969598-2 packaging specification is not provided in the available data. Packaging differences do not affect connector functionality or interchangeability.

Q: Do all three parts meet current RoHS requirements?

A: The 2-1586000-2 carries RoHS Compliant certification. Both 2-1969612-2 and 2-1969598-2 carry ROHS3 Compliant certification, indicating compliance with the most current RoHS directives. All three parts are suitable for applications requiring RoHS compliance.

Q: What is the moisture sensitivity level for these connectors?

A: All three parts carry MSL 1 (Unlimited) rating, indicating no moisture sensitivity restrictions. These connectors do not require special moisture control during storage, handling, or assembly.

Q: Can these plug housings be used with different contact types?

A: No. These housings are designed specifically for male pin contacts with crimp termination. The housing geometry and contact retention mechanism are configured for this contact type only.
