TE Connectivity 215717-1 D-Sub Receptacle Housing Equivalent & Substitute Parts

Part Overview

The TE Connectivity 215717-1 is a D-Sub receptacle housing for female contacts in a 37-position configuration. This component serves as the shell assembly for AMPLIMITE HDP-20 series connectors and is designed for free-hanging, in-line mounting applications. The part is classified as obsolete, necessitating identification of active equivalent alternatives to maintain supply chain continuity and support ongoing production requirements.

Substiute Parts

215717-1

TE Connectivity AMP ConnectorsIn Stock: 1153215717-1 Datasheet

Current PartRFQ

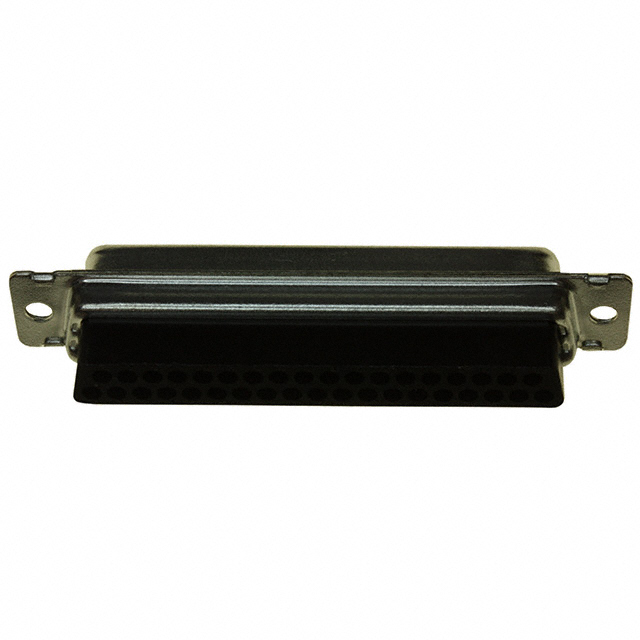

205209-2

TE Connectivity AMP ConnectorsIn Stock: 1607205209-2 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete TE Connectivity 215717-1 is based on functional and mechanical equivalence within the AMPLIMITE HDP-20 series. The substitute part must satisfy the following criteria:

Critical Matching Parameters:

• Connector style: D-Sub
• Connector type: Receptacle for female contacts
• Position count: 37 positions
• Row configuration: 2 rows
• Shell size and layout: 4 (DC, C)
• Mounting type: Free hanging (in-line)
• Flange feature: Housing/shell (unthreaded)
• Contact type: Signal
• Series designation: AMPLIMITE HDP-20

The TE Connectivity 205209-2 satisfies all critical parameters and represents a direct functional equivalent. The primary distinction is product status: 205209-2 is active and currently manufactured, whereas 215717-1 is obsolete.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 205209-2 is the direct substitute for the obsolete 215717-1. Both components are ROHS3 compliant and REACH unaffected, meeting current regulatory requirements. The 205209-2 maintains identical mechanical and electrical specifications across all critical parameters, including connector configuration, position count, mounting type, and series designation.

The transition from 215717-1 to 205209-2 is supported by active manufacturing status and current inventory availability of the substitute part. Both components carry MSL 1 (unlimited) moisture sensitivity classification, indicating equivalent handling and storage requirements.

Frequently Asked Questions (FAQ)

Q: Can the 205209-2 directly replace the 215717-1 in existing applications?

A: Yes. The 205209-2 is functionally and mechanically equivalent to the 215717-1 across all critical parameters: connector style, type, position count, row configuration, shell size, mounting type, and series designation. Both are AMPLIMITE HDP-20 series components with identical electrical and mechanical interfaces.

Q: What is the primary reason for substitution?

A: The 215717-1 is classified as obsolete. The 205209-2 is an active product with current manufacturing and inventory support, ensuring long-term supply chain availability.

Q: Are there compliance differences between the two parts?

A: No. Both the 215717-1 and 205209-2 are ROHS3 compliant and REACH unaffected. Moisture sensitivity levels are identical at MSL 1 (unlimited).

Q: What material specifications are provided for the 205209-2?

A: The 205209-2 features a steel shell with tin plating and a polyamide (PA) nylon glass-filled dielectric material. The housing is black in color.

Q: Are contacts included with these housing components?

A: No. Both the 215717-1 and 205209-2 are housing assemblies only. Contacts must be sourced separately and are not included with these components.

Q: What is the packaging difference between these parts?

A: The 215717-1 packaging specification is not provided. The 205209-2 is supplied in bulk packaging.

Q: Are there any electrical performance differences?

A: No electrical performance differences exist. Both components are signal-type connectors within the same AMPLIMITE HDP-20 series with identical position and row configurations.
