Equivalent & Substitute Parts for VCC 2152A5 Neon Panel Indicator

Part Overview

The VCC 2152A5 is a neon panel indicator lamp designed for AC applications in the 105V to 125V range. This component features a green neon element with a clear lens, round flat-top styling, and wire lead termination measuring 4.6 inches (116.84mm). The part is classified as "Not For New Designs," indicating it is a legacy component. Identifying equivalent substitute parts is necessary for maintenance, repair, and continued operation of existing equipment utilizing this lamp specification.

Substiute Parts

2152A5

Visual Communications Company - VCCIn Stock: 10632152A5 Datasheet

Current PartRFQ

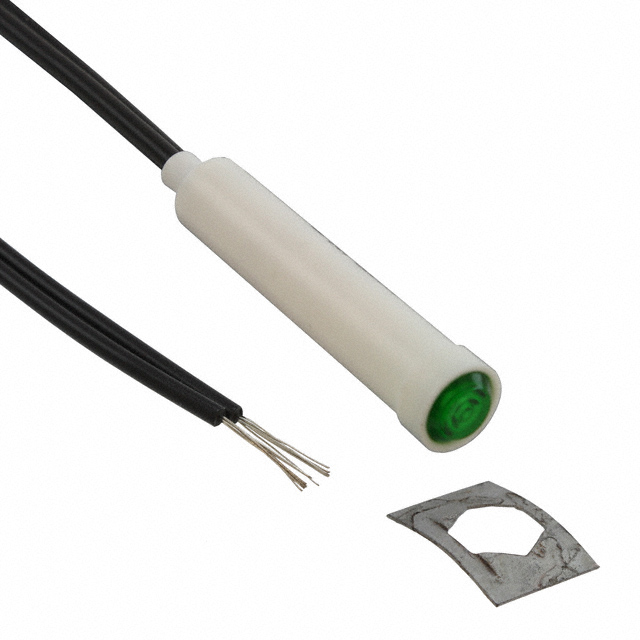

2112A5

Visual Communications Company - VCCIn Stock: 11182112A5 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the VCC 2152A5 neon panel indicator is determined by strict alignment of the following critical parameters:

Electrical Compatibility:

• Voltage rating: 105V ~ 125V AC operation
• Neon lamp type with green color emission
• AC ratings designation

Mechanical Compatibility:

• Panel cutout shape: Round
• Panel cutout dimensions: 0.31" (7.87mm)
• Lens style: Round with flat top configuration
• Termination: Wire leads measuring 4.6" (116.84mm)

Regulatory & Environmental Compliance:

• RoHS3 compliance status
• REACH unaffected classification
• Moisture sensitivity level 1 (unlimited)

The VCC 2152A5 has one identified parametric equivalent: the VCC 2112A5. Both components share identical electrical specifications, mechanical dimensions, lens configuration, and regulatory compliance status. The substitution is valid based on complete parameter alignment across all critical selection criteria.

Parameter Comparison

Engineering Selection Recommendations

The VCC 2152A5 and VCC 2112A5 are direct parametric equivalents suitable for interchangeable use in applications requiring a neon panel indicator lamp with the specified electrical and mechanical characteristics.

Both components carry "Not For New Designs" product status, indicating they are legacy components maintained for existing equipment support. Selection between these two parts may be based on inventory availability and lead time considerations, as both meet identical technical requirements.

Both parts maintain ROHS3 compliance and REACH unaffected status, satisfying current regulatory requirements for electronic component procurement. The moisture sensitivity level 1 classification indicates unlimited shelf life under standard storage conditions.

Frequently Asked Questions (FAQ)

Q: Can the VCC 2112A5 directly replace the VCC 2152A5 in existing equipment?

A: Yes. The VCC 2112A5 is a parametric equivalent with identical electrical ratings (105V ~ 125V AC), mechanical dimensions (0.31" round panel cutout), lens configuration (round with flat top), and wire lead termination (4.6" length). Direct substitution is valid.

Q: Are there any differences in the physical appearance between these two neon panel indicators?

A: Both components feature identical lens styling (round with flat top), green neon color, and clear lens transparency. No visual differences exist between the two parts.

Q: Do both parts meet current environmental and regulatory standards?

A: Yes. Both the VCC 2152A5 and VCC 2112A5 are ROHS3 compliant and REACH unaffected, meeting current regulatory requirements for electronic component use.

Q: What is the significance of the "Not For New Designs" product status?

A: This designation indicates these are legacy components. While fully functional and compliant, they are maintained primarily for replacement and repair applications in existing equipment. New equipment designs should evaluate current-generation alternatives from the manufacturer.

Q: Are the wire lead lengths identical between both parts?

A: Yes. Both components feature wire lead termination measuring 4.6 inches (116.84mm), ensuring identical installation and wiring requirements.

Q: What is the panel cutout requirement for installation?

A: Both parts require a round panel cutout measuring 0.31 inches (7.87mm) in diameter for proper mounting.
