Equivalent & Substitute Parts for VCC 2150AX2 Neon Panel Indicator

Part Overview

The VCC 2150AX2 is a neon panel indicator lamp designed for AC applications in the 105V to 125V range. This component features a clear neon lamp with a round flat-top lens style and wire lead termination (4.6" length), suitable for panel-mount installations with a 0.31" (7.87mm) round cutout.

The 2150AX2 carries an Obsolete product status. Identifying equivalent substitute parts is necessary for ongoing maintenance, repair, and legacy system support where this component is specified in existing designs.

Substiute Parts

2150AX2

Visual Communications Company - VCCIn Stock: 11622150AX2 Datasheet

Current PartRFQ

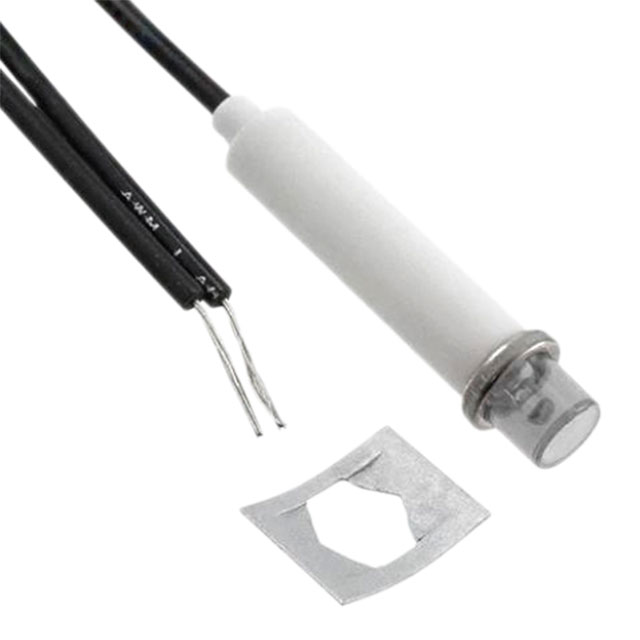

2150A2

Visual Communications Company - VCCIn Stock: 9932150A2 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the VCC 2150AX2 is determined by strict alignment of the following critical parameters:

Electrical Compatibility:

• Voltage rating: 105V ~ 125V AC
• Lamp type: Neon
• Lamp color: Clear

Mechanical Compatibility:

• Panel cutout shape: Round
• Panel cutout dimensions: 0.31" (7.87mm)
• Lens style: Round with Flat Top
• Termination style: Wire Leads - 4.6" (116.84mm)

Regulatory Compliance:

• RoHS3 Compliant status
• Moisture Sensitivity Level: 1 (Unlimited)

The VCC 2150A2 meets all substitution criteria within the 2150A series, maintaining identical electrical ratings, mechanical form factor, and regulatory compliance.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: VCC 2150A2

The VCC 2150A2 is the direct equivalent for the 2150AX2. All electrical, mechanical, and regulatory parameters align without deviation. Both components share Obsolete or Not For New Designs status, indicating they are legacy products within the VCC 2150A series.

Compliance Considerations:

Both the main part (2150AX2) and substitute (2150A2) maintain ROHS3 compliance and MSL Level 1 (Unlimited) moisture sensitivity rating. No compliance barriers exist for substitution in existing applications.

Packaging Difference:

The 2150AX2 is supplied without specified packaging, while the 2150A2 is packaged in Bag format. This difference does not affect functional or mechanical compatibility and relates only to logistics and storage.

Inventory Status:

The 2150AX2 has 1,151 pieces in stock, while the 2150A2 has 936 pieces available. Both components are currently available through existing inventory channels.

Frequently Asked Questions (FAQ)

Q: Can the VCC 2150A2 be used as a direct replacement for the 2150AX2?

A: Yes. The 2150A2 is a direct substitute. All electrical ratings (105V ~ 125V AC), mechanical dimensions (0.31" round cutout, 4.6" wire leads), lens configuration (clear, round with flat top), and regulatory compliance (ROHS3, MSL 1) are identical.

Q: What is the difference between the 2150AX2 and 2150A2?

A: The primary difference is product status: the 2150AX2 is Obsolete, while the 2150A2 is Not For New Designs. Functionally and mechanically, they are equivalent. Packaging differs (unspecified vs. Bag), but this does not affect performance.

Q: Are there any voltage or current rating differences?

A: No. Both components operate at 105V ~ 125V AC with identical electrical specifications. No current rating is specified for either part.

Q: Will the 2150A2 fit the same panel cutout as the 2150AX2?

A: Yes. Both components require a 0.31" (7.87mm) round panel cutout and feature identical round flat-top lens styling. Mechanical installation is identical.

Q: Are both parts RoHS compliant?

A: Yes. Both the 2150AX2 and 2150A2 are ROHS3 Compliant with MSL Level 1 (Unlimited) moisture sensitivity rating.

Q: Which part should I select for new inventory procurement?

A: Both components carry legacy product status (Obsolete or Not For New Designs). Selection should be based on current availability and application requirements. The 2150AX2 currently has higher inventory (1,151 vs. 936 pieces).
