Equivalent & Substitute Parts for VCC 2150A1 Neon Panel Indicator Lamp

Part Overview

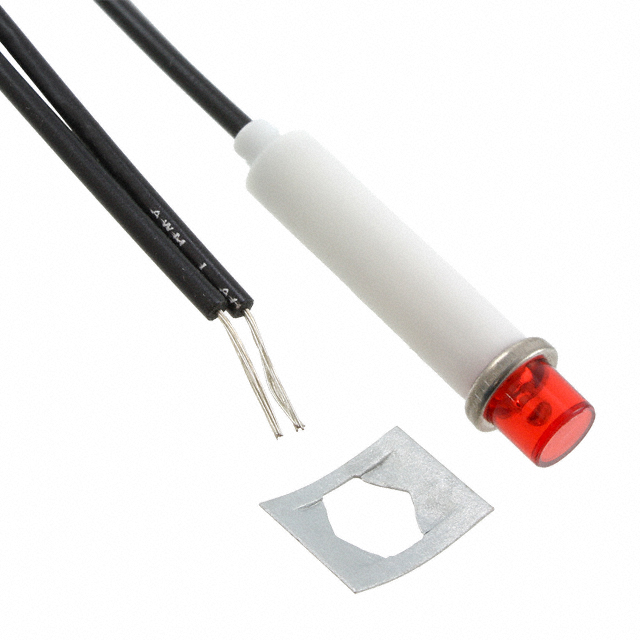

The VCC 2150A1 is a neon panel indicator lamp designed for AC applications in the 105V to 125V range. This component features a red neon element with clear lens, round panel mount configuration, and wire lead termination. The product carries a "Not For New Designs" status, indicating that while functional and available, alternative solutions may be preferred for new development projects. Identifying equivalent substitute parts ensures design flexibility and supply chain continuity when the primary part becomes unavailable or when design requirements necessitate alternative sourcing.

Substiute Parts

2150A1

Visual Communications Company - VCCIn Stock: 13442150A1 Datasheet

Current PartRFQ

2110A1

Visual Communications Company - VCCIn Stock: 63642110A1 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the VCC 2150A1 are identified based on strict electrical and mechanical parameter alignment. The substitution criteria are:

Critical Matching Parameters:

• Lamp type: Neon
• Lamp color: Red
• Lens transparency: Clear
• Voltage rating: 105V ~ 125V AC
• Panel cutout shape: Round
• Panel cutout dimensions: 0.31" (7.87mm)
• Lens style: Round with Flat Top
• Termination style: Wire Leads - 4.6" (116.84mm)
• Ratings classification: AC

The VCC 2110A1 meets all specified electrical and mechanical parameters, establishing it as a parametric equivalent. Both parts share identical voltage specifications, panel mount geometry, lens configuration, and termination characteristics. The substitution is valid for applications requiring these exact specifications.

Parameter Comparison

Engineering Selection Recommendations

Both the VCC 2150A1 and VCC 2110A1 are classified as "Not For New Designs," indicating that neither part is recommended for new product development initiatives. However, both parts maintain full compliance with ROHS3 and REACH requirements, ensuring environmental and regulatory conformance for existing applications.

For applications currently utilizing the VCC 2150A1, the VCC 2110A1 provides complete parametric equivalence across all specified electrical and mechanical characteristics. The selection between these parts should be based on inventory availability and supply chain considerations rather than technical performance differences, as both parts deliver identical functional specifications.

Current inventory levels show 6258 units of the VCC 2110A1 available compared to 1252 units of the VCC 2150A1, which may influence sourcing decisions for high-volume requirements.

Frequently Asked Questions (FAQ)

Q: Can the VCC 2110A1 be used as a direct replacement for the VCC 2150A1?

A: Yes. The VCC 2110A1 is a parametric equivalent with identical electrical ratings (105V ~ 125V AC), mechanical configuration (0.31" round panel cutout), lens specifications (clear, round with flat top), and termination style (4.6" wire leads). No circuit modifications or panel redesign are required.

Q: Are there any differences in performance between these two parts?

A: No performance differences exist between the VCC 2150A1 and VCC 2110A1. Both parts are neon red indicators with identical voltage ratings, panel mount geometry, and termination characteristics.

Q: What is the significance of the "Not For New Designs" status?

A: This status indicates that both parts are mature products no longer recommended for incorporation into new product designs. However, they remain available for replacement, repair, and maintenance applications. Existing designs using these parts may continue to source them without restriction.

Q: Are both parts RoHS and REACH compliant?

A: Yes. Both the VCC 2150A1 and VCC 2110A1 are ROHS3 Compliant and REACH Unaffected, meeting current environmental and regulatory requirements.

Q: What panel cutout dimensions are required for installation?

A: Both parts require a 0.31" (7.87mm) round panel cutout. The lens style is round with flat top, and wire leads measure 4.6" (116.84mm) in length.

Q: Which part should be selected based on availability?

A: The VCC 2110A1 currently has higher inventory availability (6258 units) compared to the VCC 2150A1 (1252 units). For applications requiring immediate or high-volume sourcing, the VCC 2110A1 may offer supply chain advantages.
