TE Connectivity AMP Connectors 2-1393481-9 D-Sub Receptacle Equivalent & Substitute Parts

Part Overview

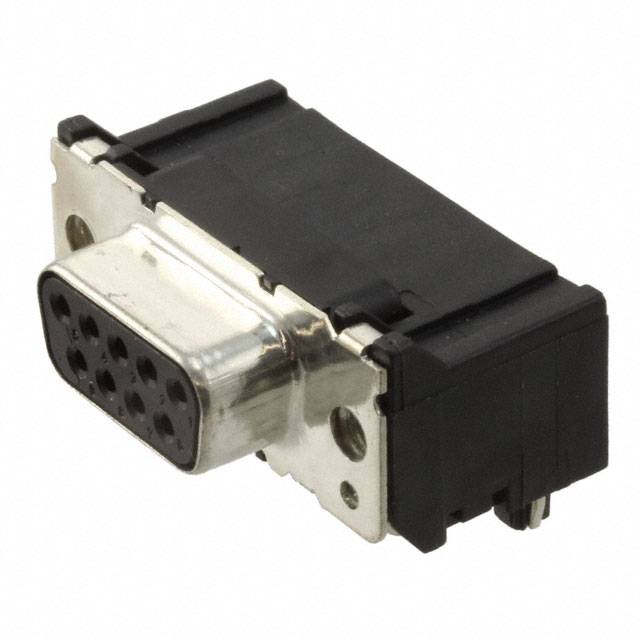

The TE Connectivity AMP Connectors 2-1393481-9 is a 9 Position D-Sub Receptacle connector with female sockets, designed for through-hole right-angle mounting applications. This connector is part of the AMPLIMITE HD-20 series and features press-fit termination with gold-plated phosphor bronze contacts. The product is classified as obsolete, making identification of equivalent and substitute parts essential for ongoing system maintenance, repair, and component sourcing.

Substiute Parts

2-1393481-9

TE Connectivity AMP ConnectorsIn Stock: 11412-1393481-9 Datasheet

Current PartRFQ

D09S82C6GL00LF

Amphenol ICC (FCI)In Stock: 1140D09S82C6GL00LF Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 2-1393481-9 is determined by strict alignment of the following critical parameters:

Mandatory Matching Parameters:

• Connector Style: D-Sub
• Connector Type: Receptacle, Female Sockets
• Number of Positions: 9
• Number of Rows: 2
• Shell Size, Connector Layout: 1 (DE, E)
• Termination Method: Press-Fit
• Contact Finish: Gold
• Contact Finish Thickness: 30.0µin (0.76µm)
• Contact Material: Phosphor Bronze
• Operating Temperature Range: -55°C ~ 125°C
• Material Flammability Rating: UL94 V-0
• Moisture Sensitivity Level: 1 (Unlimited)

Acceptable Variation Parameters:

• Mounting Type: Through Hole, Right Angle (may include Board Edge as additional capability)
• Shell Material Finish: Steel with Tin or Tin-Nickel plating
• Manufacturer: Different manufacturers permitted if all mandatory parameters align
• Product Status: Active status preferred for obsolete parts
• Compliance Certifications: RoHS and REACH status may differ based on vendor specifications

The Amphenol ICC (FCI) D09S82C6GL00LF satisfies all mandatory matching parameters and serves as a direct functional equivalent for the obsolete TE Connectivity part.

Parameter Comparison

Engineering Selection Recommendations

The Amphenol ICC (FCI) D09S82C6GL00LF is a qualified substitute for the obsolete TE Connectivity AMP Connectors 2-1393481-9 based on the following engineering criteria:

Compliance and Certification Alignment:

• Both parts maintain UL94 V-0 material flammability rating, ensuring equivalent safety performance in applications requiring flame resistance.
• Both parts carry MSL 1 (Unlimited) moisture sensitivity classification, indicating no special moisture control requirements during storage or handling.
• The substitute part carries RoHS Compliant certification, meeting environmental regulatory requirements for restricted substances.
• ECCN classification remains EAR99 for both parts, maintaining consistent export control status.

Functional Equivalence:

• All critical electrical and mechanical parameters align between the main part and substitute, including connector geometry (9-position, 2-row, DE/E shell size), contact materials (phosphor bronze with gold plating at 30.0µin thickness), and operating temperature range (-55°C ~ 125°C).
• Press-fit termination method is identical, ensuring compatibility with existing PCB designs and assembly processes.
• The substitute part's active product status provides long-term availability and supply chain continuity compared to the obsolete main part.

Physical Integration Considerations:

• The substitute part supports Board Edge mounting in addition to Through Hole mounting, providing enhanced mechanical stability in applications where board edge mounting is feasible.
• Shell material finish differs (Tin-Nickel versus Tin plating), offering improved corrosion resistance in the substitute part without affecting electrical performance or mechanical fit.
• Backset spacing differs between parts (0.256" for substitute versus 0.411" for main part), requiring verification of PCB layout compatibility before implementation.

Frequently Asked Questions (FAQ)

Q: Can the Amphenol ICC D09S82C6GL00LF directly replace the TE Connectivity 2-1393481-9 in existing designs?

A: The Amphenol ICC D09S82C6GL00LF matches all critical electrical and mechanical parameters required for D-Sub 9-position receptacle functionality. However, the backset spacing difference (0.256" versus 0.411") requires PCB layout verification. If the original design accommodates the substitute's backset spacing, direct replacement is feasible. If not, PCB modification is necessary.

Q: What is the significance of the different shell material finishes between these parts?

A: The TE Connectivity part uses Steel with Tin plating, while the Amphenol ICC substitute uses Steel with Tin-Nickel plating. Both finishes provide corrosion protection and electrical conductivity. Tin-Nickel plating offers enhanced corrosion resistance in harsh environments. This difference does not affect electrical performance or mechanical compatibility.

Q: Are there differences in mounting capabilities between these connectors?

A: The TE Connectivity part is specified for Through Hole, Right Angle mounting. The Amphenol ICC substitute supports Board Edge, Through Hole, and Right Angle mounting options. This means the substitute offers additional mounting flexibility while maintaining compatibility with the original Through Hole, Right Angle configuration.

Q: How do the compliance certifications compare between these parts?

A: Both parts carry UL94 V-0 flammability rating and MSL 1 moisture sensitivity classification. The TE Connectivity part is ROHS3 Compliant, while the Amphenol ICC substitute is RoHS Compliant. Both certifications meet environmental regulatory requirements. The substitute's RoHS Compliant status is sufficient for applications requiring restricted substance compliance.

Q: What is the impact of the different backset spacing values?

A: Backset spacing (0.411" for TE Connectivity versus 0.256" for Amphenol ICC) defines the distance from the connector mounting surface to the contact engagement plane. This parameter directly affects PCB layout and component placement. Before substitution, confirm that the PCB design accommodates the substitute part's backset spacing to ensure proper connector seating and electrical contact.

Q: Are the contact specifications identical between these parts?

A: Yes. Both parts feature phosphor bronze contacts with 30.0µin (0.76µm) gold plating. Contact material, finish type, and finish thickness are identical, ensuring equivalent electrical performance, signal integrity, and contact reliability.

Q: What is the inventory status for the substitute part?

A: The Amphenol ICC D09S82C6GL00LF has 1095 pieces in stock as new original inventory, compared to 1033 pieces for the obsolete TE Connectivity part. The substitute part's active product status provides ongoing availability and supply chain continuity.
