TE Connectivity 213855-1 Circular Connector Equivalent & Substitute Parts

Part Overview

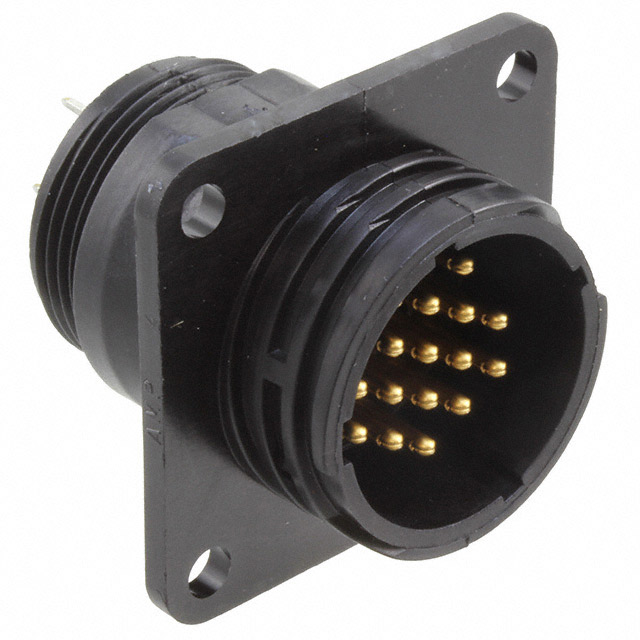

The TE Connectivity 213855-1 is a 16-position circular connector receptacle with male pins, designed for panel mount through-hole applications with solder termination. This connector features a threaded fastening mechanism, gold-plated mating contacts, and polyamide shell construction rated for UL94 V-0 flammability compliance.

The 213855-1 carries an obsolete product status. Identifying equivalent and substitute parts is necessary to ensure continued availability for maintenance, repair, and new production applications where this connector type is specified.

Substiute Parts

213855-1

TE Connectivity AMP ConnectorsIn Stock: 887213855-1 Datasheet

Current PartRFQ

213855-3

TE Connectivity AMP ConnectorsIn Stock: 820213855-3 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 213855-1 is determined by strict equivalence across the following critical parameters:

Electrical Compatibility Parameters:

• 16-position connector configuration
• 250VAC/DC voltage rating
• Gold-plated brass contact system with 30.0µin (0.76µm) finish thickness

Mechanical Compatibility Parameters:

• Shell size 17-16 insert designation
• Panel mount through-hole mounting with flange feature
• Threaded fastening mechanism
• Orientation B configuration
• Polyamide (PA) nylon shell material
• UL94 V-0 flammability rating

Termination Compatibility:

• Solder termination method
• Receptacle connector type with male pins

The substitute part 213855-3 maintains identical electrical and mechanical specifications while differing in product status and regulatory compliance classification. Both parts share the same base product number (213855) and CPC Series 1 designation, confirming functional equivalence within the TE Connectivity connector portfolio.

Parameter Comparison

Engineering Selection Recommendations

For Obsolete Part Replacement:

The TE Connectivity 213855-3 is the direct substitute for the obsolete 213855-1. Both connectors maintain identical electrical and mechanical specifications, ensuring functional compatibility in existing circuit designs and PCB layouts.

Regulatory Compliance Consideration:

The 213855-3 carries ROHS3 compliance and REACH Unaffected status, whereas the 213855-1 is RoHS non-compliant with vendor-undefined REACH status. For new production applications or systems subject to RoHS3 regulatory requirements, the 213855-3 is the appropriate selection.

Product Status Impact:

The 213855-1 is classified as obsolete, indicating discontinued manufacturing and limited long-term availability. The 213855-3 maintains active product status, ensuring continued supply chain access and manufacturer support.

Packaging Consideration:

The 213855-3 is supplied in tray packaging, whereas the 213855-1 packaging specification is not provided. Tray packaging is standard for high-volume production and automated assembly processes.

Frequently Asked Questions (FAQ)

Q: Are the 213855-1 and 213855-3 electrically interchangeable?

A: Yes. Both connectors share identical electrical specifications: 16-position configuration, 250VAC/DC voltage rating, gold-plated brass contacts with 30.0µin (0.76µm) finish thickness, and -55°C ~ 105°C operating temperature range.

Q: Are the 213855-1 and 213855-3 mechanically interchangeable?

A: Yes. Both connectors feature identical mechanical specifications: shell size 17-16, panel mount through-hole configuration with flange, threaded fastening, orientation B, and polyamide nylon shell material rated UL94 V-0.

Q: What is the primary difference between these two parts?

A: The 213855-1 is obsolete with RoHS non-compliant status, while the 213855-3 is an active product with ROHS3 compliance and REACH Unaffected designation. Both parts are functionally equivalent.

Q: Can I use the 213855-3 as a direct replacement for the 213855-1 in existing designs?

A: Yes. The 213855-3 is a direct substitute with identical electrical and mechanical characteristics. No design modifications are required.

Q: What packaging format is the 213855-3 supplied in?

A: The 213855-3 is supplied in tray packaging, suitable for automated assembly and high-volume production environments.

Q: Are there any termination method differences between these connectors?

A: No. Both the 213855-1 and 213855-3 use solder termination exclusively.

Q: What is the significance of the CPC Series 1 designation?

A: The CPC Series 1 designation indicates both connectors belong to the same TE Connectivity product family, confirming design compatibility and interchangeability within this connector series.
