TE Connectivity 212059-1 D-Sub Receptacle Housing Equivalent & Substitute Parts

Part Overview

The TE Connectivity 212059-1 is a D-Sub receptacle housing for female contacts in the AMPLIMITE 109 series. This connector accommodates 5 positions in a coax or power configuration with a DB/B shell size (5W5 layout). The housing is constructed from steel with cadmium plating and features a polyester glass-filled dielectric material. The part is classified as Active product status with 1029 units currently in stock. Substitute parts are identified when equivalent electrical and mechanical specifications are required but the original part number becomes unavailable or when alternative compliance certifications are necessary for specific applications.

Substiute Parts

212059-1

TE Connectivity Aerospace, Defense and MarineIn Stock: 1073212059-1 Datasheet

Current PartRFQ

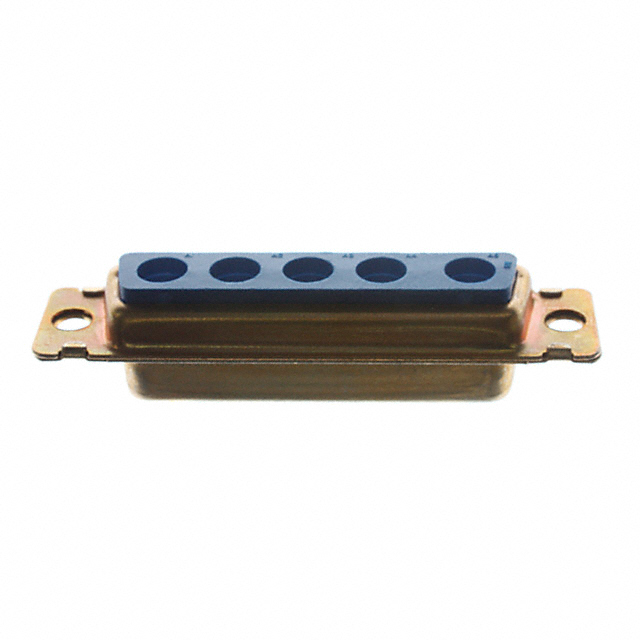

5-212059-1

TE Connectivity Aerospace, Defense and MarineIn Stock: 12055-212059-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The substitute part 5-212059-1 is classified as a direct equivalent based on the following critical parameters that determine substitution validity:

Electrical and Mechanical Compatibility Parameters:

• Connector style, type, and configuration (D-Sub, Combo, Receptacle for Female Contacts)
• Position count and layout (5 positions, 1 row, 5W5 shell size)
• Contact type (Coax or Power)
• Mounting configuration (Free Hanging, In-Line)
• Dielectric material composition (Polyester, Glass Filled)
• Operating temperature range (-50°C ~ 125°C)
• Shell material base composition (Steel)

The substitute part maintains identical functional and dimensional specifications across all critical parameters. Variations exist only in shell finish specification (cadmium plating versus yellow chromate plated zinc) and regulatory compliance status, which do not affect mechanical or electrical interchangeability within the specified operating parameters.

Parameter Comparison

Engineering Selection Recommendations

212059-1 Selection Criteria: The original part number 212059-1 is suitable for applications where RoHS non-compliance is acceptable and cadmium plating finish is specified. This part maintains Active product status with established supply availability.

5-212059-1 Selection Criteria: The substitute part 5-212059-1 is suitable for applications requiring ROHS3 compliance. This part features yellow chromate plated zinc finish instead of cadmium plating and maintains Active product status with higher current inventory levels (1183 units versus 1029 units). Both parts share identical electrical and mechanical specifications across all functional parameters.

Compliance Considerations: Selection between these parts depends on regulatory requirements specific to the end application. The substitute part 5-212059-1 provides ROHS3 compliance certification, while the original part 212059-1 does not. Both parts are classified under identical ECCN (EAR99) and HTSUS (8538.90.8180) codes.

Frequently Asked Questions (FAQ)

Q: Are 212059-1 and 5-212059-1 mechanically interchangeable?

A: Yes. Both parts share identical mechanical specifications including shell size (3/5W5), mounting type (Free Hanging, In-Line), flange configuration (Unthreaded), and dielectric material (Polyester, Glass Filled). The housing dimensions and contact interface are equivalent.

Q: Are 212059-1 and 5-212059-1 electrically interchangeable?

A: Yes. Both parts support identical electrical specifications including 5-position coax or power contact configuration, operating temperature range (-50°C ~ 125°C), and contact type. The dielectric material composition is identical.

Q: What is the difference between the shell finishes?

A: The 212059-1 features cadmium plating, while the 5-212059-1 features yellow chromate plated zinc with a specified thickness of 200µin (5.08µm). Both finishes provide corrosion protection on the steel shell material. The finish selection depends on application-specific environmental and regulatory requirements.

Q: Why do the parts have different colors (Black versus Blue)?

A: Color differentiation is a manufacturing identifier and does not affect electrical or mechanical function. The color distinction corresponds to the different shell finish specifications and RoHS compliance status.

Q: Which part should be selected for new designs?

A: Selection depends on regulatory compliance requirements. For applications requiring ROHS3 compliance, specify 5-212059-1. For applications where RoHS compliance is not required, either part is acceptable based on availability and finish specification requirements.

Q: Are contacts included with these housings?

A: No. Both parts are housings only. Contacts must be sourced separately and are not included with either part number.

Q: What is the difference in current inventory levels?

A: The 212059-1 has 1029 units in stock, while the 5-212059-1 has 1183 units in stock. Both parts maintain Active product status with established supply availability.

Q: Can these parts be used in the same connector assembly?

A: Yes. Both parts are compatible within the same AMPLIMITE 109 series connector assembly. The housing interface and contact accommodation specifications are identical, allowing direct substitution in assembly operations.
