TE Connectivity AMP Connectors 212034-1 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 212034-1 is an 8 Position Circular Connector Receptacle with female sockets designed for solder termination. This component is a DIN-standard circular connector used in applications requiring reliable electrical connections with push-pull fastening and keyed orientation. Substitute parts are identified to provide alternative sourcing options when the primary part number is unavailable or when packaging requirements differ.

Substiute Parts

212034-1

TE Connectivity AMP ConnectorsIn Stock: 848212034-1 Datasheet

Current PartRFQ

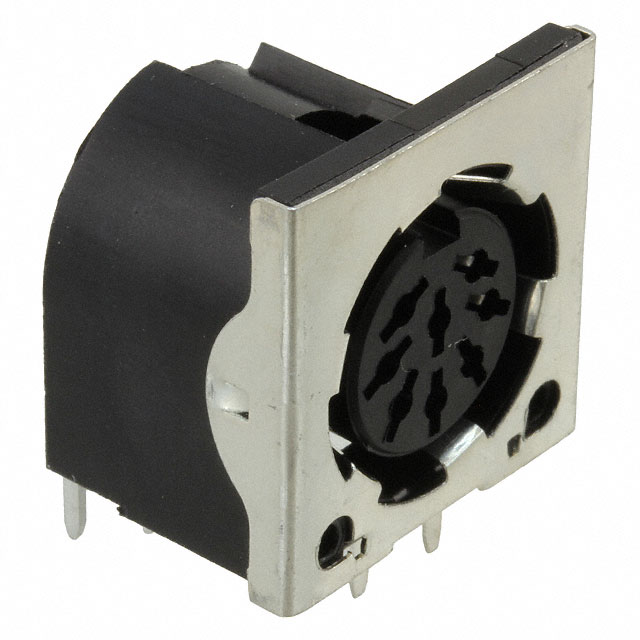

5212034-1

TE Connectivity AMP ConnectorsIn Stock: 15265212034-1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The substitute part 5212034-1 is functionally equivalent to the primary part 212034-1 based on the following critical parameters that determine substitutability:

Electrical Compatibility Parameters:

• Connector Type: Receptacle, Female Sockets (identical)
• Number of Positions: 8 (identical)
• Shell Size - Insert: DIN (270 Degree) (identical)
• Termination: Solder (identical)
• Current Rating: 7.5A (identical)
• Voltage Rating: 250VAC (identical)
• Operating Temperature Range: -55°C ~ 105°C (identical)

Mechanical Compatibility Parameters:

• Fastening Type: Push-Pull (identical)
• Mounting Type: Through Hole, Right Angle (identical)
• Orientation: Keyed (identical)

Material and Construction Parameters:

• Shell Material: Polyamide (PA), Nylon (identical)
• Contact Material: Brass (identical)
• Contact Finish - Mating: Tin (identical)
• Shielding: Shielded (identical)

The primary distinction between these parts is packaging format: 212034-1 is supplied in standard packaging, while 5212034-1 is supplied in Tray packaging. Both parts maintain identical electrical and mechanical specifications, making them directly interchangeable in circuit applications.

Parameter Comparison

Engineering Selection Recommendations

Both 212034-1 and 5212034-1 are suitable for direct substitution in applications requiring 8-position DIN circular connectors with solder termination. Selection between these parts should be based on the following criteria:

Primary Selection Criteria:

1. Packaging Requirements: Select 5212034-1 when tray packaging is required for automated assembly or high-volume production environments. Select 212034-1 when standard packaging meets procurement specifications.

2. Compliance and Certifications: The substitute part 5212034-1 carries explicit ROHS3 compliance and UL94 V-0 flammability rating certifications. These certifications should be verified against application requirements before final selection.

3. Product Status: Part 5212034-1 is designated as Active status, indicating current production and long-term availability support.

4. Inventory Availability: Part 5212034-1 has higher inventory availability (1431 Pcs) compared to 212034-1 (805 Pcs), which may influence lead time considerations.

All electrical and mechanical parameters are identical between both parts, ensuring functional interchangeability in circuit design and PCB layout applications.

Frequently Asked Questions (FAQ)

Q: Are 212034-1 and 5212034-1 electrically identical?

A: Yes. Both parts have identical electrical specifications including 8-position configuration, 7.5A current rating, 250VAC voltage rating, solder termination, and -55°C to 105°C operating temperature range.

Q: What is the difference between these two part numbers?

A: The primary difference is packaging format. Part 5212034-1 is supplied in Tray packaging, while 212034-1 uses standard packaging. All electrical and mechanical specifications are identical.

Q: Can I use 5212034-1 as a direct replacement for 212034-1 in my design?

A: Yes. The parts are mechanically and electrically interchangeable. The connector type, number of positions, shell size, termination method, fastening type, mounting configuration, and all electrical ratings are identical.

Q: Does the packaging difference affect circuit performance?

A: No. Packaging format does not affect electrical or mechanical performance. The difference is relevant only for procurement, storage, and assembly processes.

Q: Which part should I specify for new designs?

A: Either part is suitable for new designs. If tray packaging is required for automated assembly, specify 5212034-1. If standard packaging meets requirements, either part is acceptable. Verify compliance certifications (ROHS3, UL94 V-0) against your application requirements.

Q: Are both parts currently in production?

A: Part 5212034-1 is designated as Active status. Production status for 212034-1 is not specified in available documentation.

Q: What applications are these connectors designed for?

A: These 8-position DIN circular connectors with solder termination are used in audio applications and other systems requiring reliable push-pull connected circular connectors with keyed orientation.
