TE Connectivity 2118315-1 RF Antenna Equivalent & Substitute Parts

Part Overview

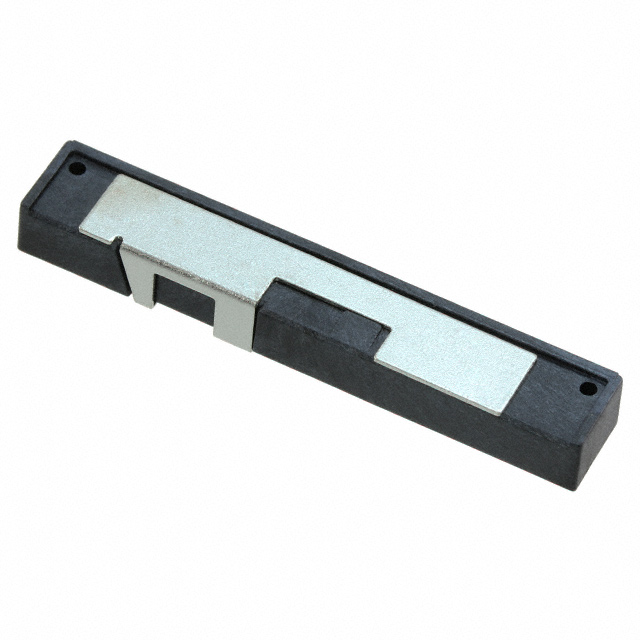

The TE Connectivity 2118315-1 is a 2.4GHz/5GHz WLAN stamped metal RF antenna designed for surface mount solder termination applications. This component operates across dual frequency bands within the UHF (2GHz ~ 3GHz) and SHF (f > 4GHz) ranges, supporting WiFi standards. The part is currently classified as obsolete, necessitating identification of functionally equivalent alternatives for ongoing design requirements and production continuity.

Substiute Parts

2118315-1

TE Connectivity AMP ConnectorsIn Stock: 8742118315-1 Datasheet

Current PartRFQ

2118788-1

TE Connectivity AMP ConnectorsIn Stock: 8392118788-1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 2118315-1 is determined by alignment across the following critical parameters:

Frequency Compatibility: Both the main part and substitute must operate at 2.4GHz and 5GHz dual-band frequencies within the UHF and SHF frequency groups to maintain RF performance in WLAN applications.

Termination Method: Solder termination is required for direct PCB integration without additional adapters or interface modifications.

Mounting Configuration: Surface mount technology ensures compatibility with standard PCB assembly processes and footprint requirements.

Physical Dimensions: Maximum height of 0.169" (4.28mm) must be maintained to prevent mechanical interference with enclosures and adjacent components.

Number of Bands: Dual-band operation (2 bands) is essential for simultaneous 2.4GHz and 5GHz WLAN support.

The TE Connectivity 2118788-1 satisfies all substitution criteria through equivalent frequency coverage, solder termination, surface mount configuration, and identical maximum height specification.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 2118788-1 serves as the primary substitute for the obsolete 2118315-1 based on the following engineering criteria:

Frequency and RF Performance: Both parts operate identically across 2.4GHz and 5GHz dual-band frequencies, ensuring equivalent RF performance in WLAN applications without circuit redesign.

Physical and Electrical Interface: Identical solder termination, surface mount configuration, and maximum height specification enable direct footprint compatibility and assembly process alignment.

Product Status and Availability: The 2118788-1 maintains active product status with confirmed inventory availability (752 Pcs), providing supply chain continuity for the obsolete 2118315-1.

Regulatory Compliance: The 2118788-1 is RoHS Compliant, meeting current environmental and regulatory requirements. The original part carries "Not applicable" RoHS status, reflecting its obsolete classification.

Antenna Type Differentiation: The 2118315-1 employs stamped metal construction, while the 2118788-1 uses chip antenna technology. Both achieve equivalent frequency coverage and performance within the specified parameters.

Frequently Asked Questions (FAQ)

Q: Can the 2118788-1 directly replace the 2118315-1 without PCB modifications?

A: Yes. Both parts share identical solder termination, surface mount configuration, and maximum height specification (0.169" / 4.28mm). Direct footprint substitution is supported without PCB layout changes.

Q: What is the primary difference between these two antenna types?

A: The 2118315-1 uses stamped metal antenna construction, while the 2118788-1 employs chip antenna technology. Both achieve equivalent dual-band 2.4GHz/5GHz WLAN performance within the specified parameters.

Q: Does the 2118788-1 support the same frequency bands as the 2118315-1?

A: Yes. Both parts operate at 2.4GHz and 5GHz across UHF (2GHz ~ 3GHz) and SHF (f > 4GHz) frequency groups, maintaining identical RF coverage for WLAN applications.

Q: What is the packaging difference between these parts?

A: The 2118315-1 packaging is not specified in available documentation. The 2118788-1 is supplied in Tape & Reel (TR) packaging, standard for high-volume surface mount assembly operations.

Q: Is the 2118788-1 RoHS compliant?

A: Yes. The 2118788-1 is RoHS Compliant. The original 2118315-1 carries "Not applicable" RoHS status due to its obsolete classification.

Q: Are both parts rated for unlimited moisture exposure?

A: Yes. Both the 2118315-1 and 2118788-1 carry Moisture Sensitivity Level (MSL) 1 rating, indicating unlimited moisture tolerance without special handling requirements.

Q: What applications are supported by the 2118788-1?

A: The 2118788-1 is classified for General Purpose applications. The original 2118315-1 was specified for WLAN applications. The substitute's general purpose classification encompasses WLAN use cases.
