TE Connectivity 207610-3 Rectangular Connector Equivalent & Substitute Parts

Part Overview

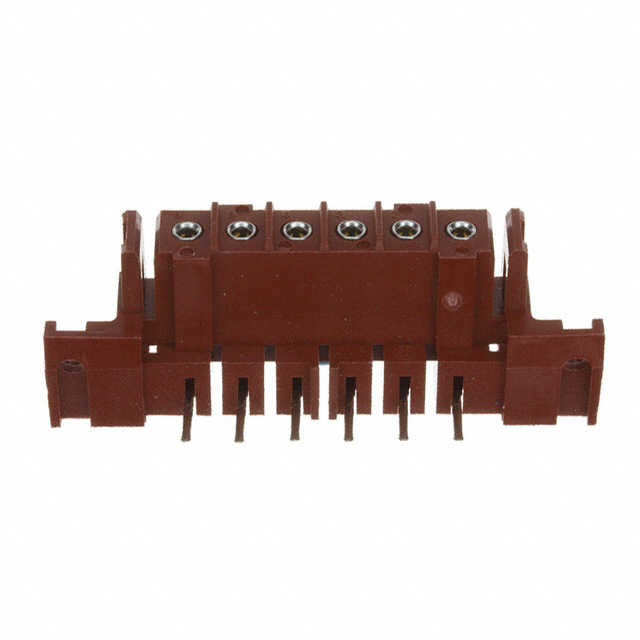

The TE Connectivity 207610-3 is a 6-position header connector from the Metrimate series, designed for board-to-cable/wire applications with through-hole, right-angle mounting. This connector features gold-plated mating contacts, tin-lead plated posts, and operates across a temperature range of -55°C to 130°C with a 600V voltage rating and 7.5A current capacity.

The 207610-3 is classified as obsolete. Locating equivalent substitute parts is necessary to support ongoing maintenance, repair, and new design requirements where this connector type is specified or functionally required.

Substiute Parts

207610-3

TE Connectivity AMP ConnectorsIn Stock: 1208207610-3 Datasheet

Current PartRFQ

207610-7

TE Connectivity AMP ConnectorsIn Stock: 973207610-7 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 207610-3 is determined by strict equivalence across the following critical parameters:

• Connector Configuration: 6-position header with female socket contacts
• Pitch Specification: 0.197" (5.00mm) mating pitch
• Mounting Geometry: Through-hole, right-angle orientation
• Electrical Performance: 600V voltage rating and 7.5A current capacity
• Temperature Range: -55°C to 130°C operating envelope
• Contact Material and Finish: Gold-plated mating surface with phosphor bronze base material
• Termination Method: Solder attachment to PCB
• Flammability Compliance: UL94 V-0 rating

The substitute part 207610-7 maintains full equivalence across all these parameters while offering active product status and improved compliance characteristics.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 207610-7 serves as the direct substitute for the obsolete 207610-3 model. Both connectors are functionally and mechanically equivalent across all critical electrical and dimensional parameters.

Product Status Consideration: The 207610-3 is obsolete, while the 207610-7 maintains active product status with TE Connectivity. This ensures ongoing availability, manufacturing consistency, and technical support for the 207610-7.

Compliance Advantage: The 207610-7 is RoHS compliant, whereas the 207610-3 is RoHS non-compliant. For applications subject to RoHS regulations or customer requirements, the 207610-7 is the appropriate selection.

Contact Finish Difference: The 207610-3 features tin-lead plated posts, while the 207610-7 uses tin plating. Both maintain the same plating thickness (150.0µin / 3.81µm) and provide equivalent solder joint reliability. The tin-only finish of the 207610-7 aligns with lead-free manufacturing standards.

Packaging: The 207610-3 is supplied in bulk packaging, while the 207610-7 is supplied in tray packaging. Tray packaging provides improved handling and component protection during storage and assembly operations.

Both parts share identical electrical ratings, temperature operating range, mechanical dimensions, and mounting characteristics, confirming full interchangeability for board-to-cable/wire connection applications.

Frequently Asked Questions (FAQ)

Q: Are the 207610-3 and 207610-7 mechanically interchangeable?

A: Yes. Both connectors share identical mounting type (through-hole, right-angle), pitch (0.197" / 5.00mm), position count (6), and dimensional specifications including insulation height (0.433" / 11.00mm) and contact length (0.186" / 4.72mm). They mount identically to PCBs and accept the same mating connectors.

Q: What is the difference in contact plating between these two parts?

A: The 207610-3 uses tin-lead plating on the post contacts, while the 207610-7 uses tin-only plating. Both maintain 150.0µin (3.81µm) thickness. The mating contacts on both parts are gold-plated at 30.0µin (0.76µm). The tin-only finish on the 207610-7 reflects lead-free manufacturing practices.

Q: Can I use the 207610-7 as a replacement in existing designs specified for the 207610-3?

A: Yes. The 207610-7 is electrically and mechanically equivalent to the 207610-3 across all functional parameters including voltage rating (600V), current capacity (7.5A), operating temperature range (-55°C to 130°C), and contact configuration. The 207610-7 is the recommended replacement for new production and ongoing support.

Q: Why is the 207610-3 listed as obsolete?

A: The 207610-3 has been discontinued by TE Connectivity. The 207610-7 represents the active product line continuation within the Metrimate series for this connector configuration.

Q: Does the packaging difference affect connector performance?

A: No. Packaging format (bulk versus tray) does not affect electrical or mechanical performance. Tray packaging provides improved component protection and handling efficiency during manufacturing and assembly operations.

Q: Are both parts RoHS compliant?

A: The 207610-3 is RoHS non-compliant. The 207610-7 is RoHS compliant. For applications requiring RoHS compliance, the 207610-7 is the appropriate selection.

Q: What is the current inventory status for these parts?

A: The 207610-3 has 1120 pieces in stock. The 207610-7 has 933 pieces in stock. Both are available as new original components.
