TE Connectivity 207541-3 Rectangular Connector Header Equivalent & Substitute Parts

Part Overview

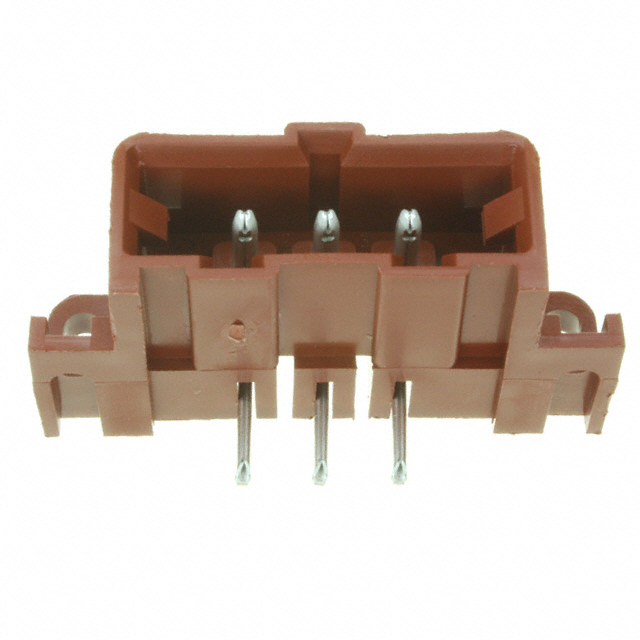

The TE Connectivity 207541-3 is a Metrimate series rectangular connector header designed for through-hole, right-angle mounting applications. This component features a 3-position configuration with 0.197" (5.00mm) pitch spacing, shrouded 4-wall design, and male pin contacts with gold-plated mating surfaces. The part is classified as obsolete, necessitating identification of active equivalent components to maintain design continuity and ensure ongoing component availability for production and service applications.

Substiute Parts

207541-3

TE Connectivity AMP ConnectorsIn Stock: 656207541-3 Datasheet

Current PartRFQ

207541-7

TE Connectivity AMP ConnectorsIn Stock: 1136207541-7 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 207541-3 is determined by strict equivalence across the following critical parameters:

Electrical Compatibility Parameters:

• Voltage Rating: 600V
• Current Rating: 7.5A
• Operating Temperature Range: -55°C ~ 130°C

Mechanical Compatibility Parameters:

• Number of Positions: 3
• Pitch - Mating: 0.197" (5.00mm)
• Mounting Type: Through Hole, Right Angle
• Contact Type: Male Pin
• Shrouding: Shrouded - 4 Wall
• Connector Type: Header
• Insulation Material: Polyamide (PA), Nylon
• Contact Material: Brass
• Contact Shape: Circular
• Fastening Type: Latch Holder
• Features: Mounting Flange

Contact Finish Parameters:

• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 30.0µin (0.76µm)
• Contact Finish Thickness - Post: 150.0µin (3.81µm)

The substitute part 207541-7 maintains full equivalence across all critical electrical and mechanical parameters. The primary distinction is product status: 207541-7 is active and RoHS3 compliant, whereas 207541-3 is obsolete.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 207541-7 is the direct functional equivalent and substitute for the obsolete 207541-3. Both components share identical electrical ratings (600V, 7.5A), mechanical configuration (3-position, 5.00mm pitch, right-angle through-hole), and thermal operating range (-55°C ~ 130°C).

The primary distinction between these parts is product status and regulatory compliance. The 207541-3 is classified as obsolete and carries no RoHS designation. The 207541-7 is an active product with ROHS3 compliance certification, indicating conformance to current environmental and material restriction directives.

An additional technical distinction exists in the post contact finish: 207541-3 uses Tin-Lead plating, while 207541-7 uses Tin plating. This represents a lead-free upgrade aligned with modern manufacturing standards. Both finishes maintain the specified 150.0µin (3.81µm) thickness and are compatible with standard solder assembly processes.

For new designs, production continuity, and service applications requiring this connector type, the 207541-7 is the appropriate selection. The component is currently in stock with higher inventory availability (1093 pieces) compared to the obsolete variant.

Frequently Asked Questions (FAQ)

Q: Are the 207541-3 and 207541-7 mechanically interchangeable?

A: Yes. Both components feature identical mechanical specifications: 3-position configuration, 0.197" (5.00mm) mating pitch, through-hole right-angle mounting, shrouded 4-wall design, and male pin contacts. PCB footprints and mounting hole patterns are identical.

Q: Are the 207541-3 and 207541-7 electrically interchangeable?

A: Yes. Both components carry identical electrical ratings: 600V voltage rating and 7.5A current rating. Operating temperature range is identical at -55°C ~ 130°C. Contact resistance and signal integrity characteristics are equivalent.

Q: What is the difference in contact finish between these parts?

A: The 207541-3 features Tin-Lead post plating, while the 207541-7 features Tin post plating. Both maintain 150.0µin (3.81µm) thickness. The Tin finish in 207541-7 represents a lead-free upgrade. Both finishes are compatible with standard solder assembly processes and provide equivalent electrical performance.

Q: Why is the 207541-3 listed as obsolete?

A: The 207541-3 has been superseded by the 207541-7, which offers improved regulatory compliance (ROHS3 certification) and lead-free contact finish. TE Connectivity has transitioned production to the active 207541-7 variant.

Q: What is the packaging difference between these parts?

A: The 207541-3 packaging specification is not provided in available documentation. The 207541-7 is supplied in Tube packaging format. Packaging format does not affect component functionality or electrical performance.

Q: Can the 207541-7 be used as a direct replacement in existing designs using 207541-3?

A: Yes. The 207541-7 is a direct functional replacement. No design modifications, PCB layout changes, or assembly process adjustments are required. The component is pin-compatible and electrically equivalent.

Q: Is the 207541-7 RoHS compliant?

A: Yes. The 207541-7 carries ROHS3 compliance certification, confirming conformance to Restriction of Hazardous Substances directives. The 207541-3 carries no RoHS designation.

Q: What is the current inventory status of these parts?

A: The 207541-3 (obsolete) has 611 pieces in stock. The 207541-7 (active) has 1093 pieces in stock, providing greater availability for ongoing production requirements.
