TE Connectivity 207464-1 D-Sub Connector Housing Equivalent & Substitute Parts

Part Overview

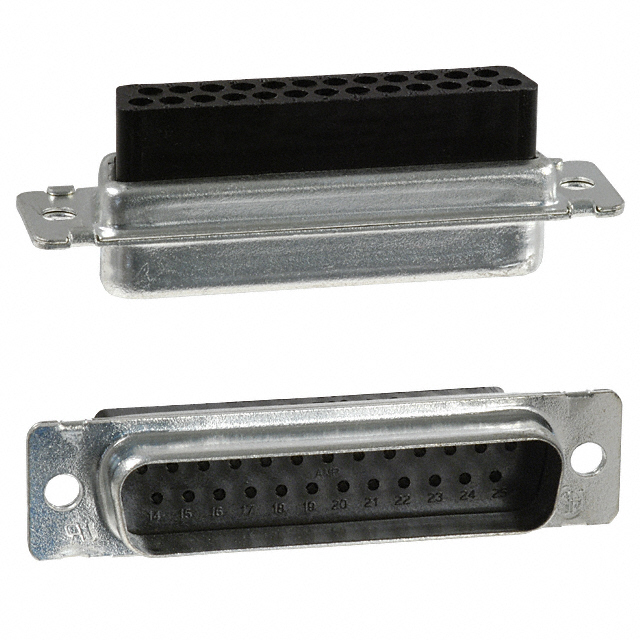

The TE Connectivity 207464-1 is a D-Sub connector housing plug designed for 25-position male contact applications. This component functions as the shell assembly for AMPLIMITE HDP-20 series D-Sub connectors, providing the mechanical structure and contact retention for signal transmission in inline, free-hanging configurations.

The 207464-1 carries an obsolete product status, indicating it is no longer in active production. Locating equivalent substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing system maintenance and repair operations.

Substiute Parts

207464-1

TE Connectivity AMP ConnectorsIn Stock: 1100207464-1 Datasheet

Current PartRFQ

207464-7

TE Connectivity AMP ConnectorsIn Stock: 2258207464-7 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 207464-1 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Connector Style: D-Sub
• Connector Type: Plug for Male Contacts
• Number of Positions: 25
• Number of Rows: 2
• Shell Size, Connector Layout: 3 (DB, B)
• Mounting Type: Free Hanging (In-Line)
• Flange Feature: Housing/Shell (Unthreaded)
• Dielectric Material: Polyamide (PA), Nylon, Glass Filled
• Color: Black
• Series: AMPLIMITE HDP-20

The substitute part 207464-7 satisfies all mandatory matching parameters. Variations in shell finish composition (Tin-Lead Plated versus Tin Plated) and product status (Obsolete versus Active) do not affect mechanical or electrical compatibility within the specified connector family.

Parameter Comparison

Engineering Selection Recommendations

207464-7 as Direct Substitute:

The TE Connectivity 207464-7 is a direct functional equivalent to the 207464-1. Both components share identical mechanical dimensions, electrical specifications, and connector interface characteristics within the AMPLIMITE HDP-20 series.

Product Status Consideration:

The 207464-1 is classified as obsolete, while the 207464-7 maintains active production status. Selection of the 207464-7 ensures continued availability for future procurement cycles and reduces supply chain risk.

Compliance Improvement:

The 207464-7 achieves ROHS3 compliance, whereas the 207464-1 is RoHS non-compliant. For applications subject to RoHS directives or customer compliance requirements, the 207464-7 provides regulatory alignment without functional compromise.

Shell Finish Variation:

The 207464-1 features Tin-Lead plating, while the 207464-7 uses Tin plating. Both finishes provide equivalent corrosion resistance and electrical conductivity for D-Sub connector applications. This variation does not affect mechanical fit, mating performance, or signal integrity.

Packaging and Inventory:

The 207464-7 is supplied in bulk packaging with higher inventory availability (2151 pieces in stock versus 1082 pieces for the 207464-1), supporting both prototype and production-volume requirements.

Frequently Asked Questions (FAQ)

Q: Can the 207464-7 directly replace the 207464-1 in existing designs?

A: Yes. The 207464-7 is mechanically and electrically identical to the 207464-1 across all critical connector parameters. No design modifications are required for substitution.

Q: What is the difference between Tin-Lead and Tin plating on the shell?

A: Both finishes provide equivalent corrosion protection and electrical performance for D-Sub connector housings. Tin plating (207464-7) is preferred in modern applications due to RoHS compliance and elimination of lead content.

Q: Why is the 207464-1 listed as obsolete?

A: Obsolete status indicates the part is no longer manufactured by TE Connectivity. The 207464-7 represents the current production equivalent within the AMPLIMITE HDP-20 series.

Q: Are there any compatibility issues with existing male contact inserts?

A: No. Both the 207464-1 and 207464-7 accept identical male contact configurations for 25-position D-Sub applications. Contact compatibility is determined by the contact part number, not the housing variant.

Q: Does the RoHS3 compliance of the 207464-7 affect performance?

A: No. RoHS3 compliance reflects material composition standards and does not alter electrical or mechanical performance characteristics. The 207464-7 performs identically to the 207464-1 in all operational aspects.

Q: What packaging options are available for the 207464-7?

A: The 207464-7 is supplied in bulk packaging. The 207464-1 packaging type is not specified in available documentation.

Q: Are both parts suitable for free-hanging inline mounting?

A: Yes. Both the 207464-1 and 207464-7 are designed for free-hanging, in-line mounting configurations without threaded flanges or panel-mount hardware.
