TE Connectivity AMP Connectors 207441-4 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 207441-4 is a rectangular connector header designed for through-hole mounting applications. This connector features a 9-position configuration with 0.197" (5.00mm) pitch spacing, shrouded 4-wall design, and solder termination. The part is classified as obsolete, which necessitates identification of active equivalent alternatives for ongoing procurement and design requirements. The 207441-4 is suitable for automotive, general purpose, and industrial applications requiring board-to-board or cable connectivity.

Substiute Parts

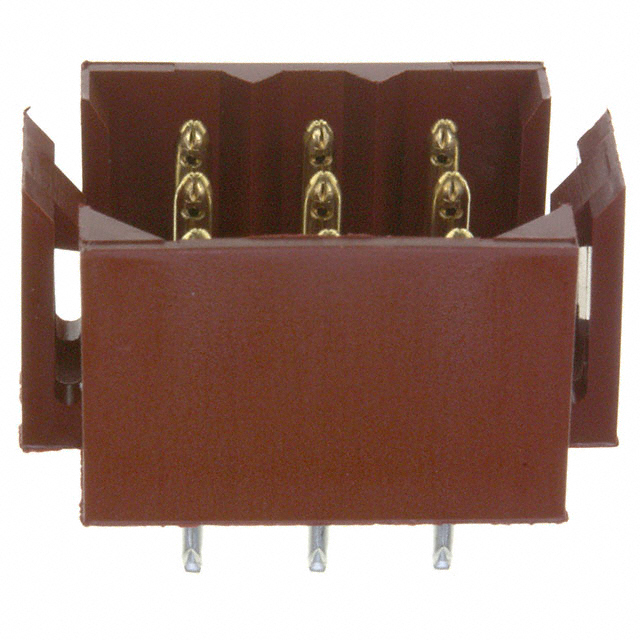

207441-4

TE Connectivity AMP ConnectorsIn Stock: 1212207441-4 Datasheet

Current PartRFQ

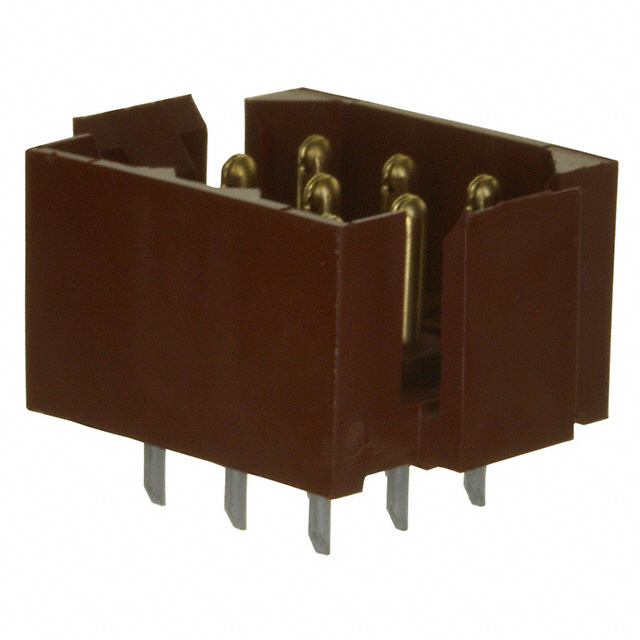

207441-9

TE Connectivity AMP ConnectorsIn Stock: 651207441-9 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 207441-4 is determined by strict equivalence across the following critical parameters:

Electrical Parameters:

• Current Rating: 7.5A
• Voltage Rating: 600V
• Operating Temperature Range: -55°C ~ 130°C

Mechanical Parameters:

• Number of Positions: 9
• Number of Rows: 3
• Pitch - Mating: 0.197" (5.00mm)
• Row Spacing - Mating: 0.197" (5.00mm)
• Mounting Type: Through Hole
• Shrouding: Shrouded - 4 Wall
• Contact Type: Male Pin
• Termination: Solder
• Fastening Type: Latch Lock

Material & Environmental Parameters:

• Contact Material: Brass
• Insulation Material: Polyamide (PA), Nylon
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black, Red

The substitute part 207441-9 maintains identical electrical, mechanical, and material specifications while offering active product status and improved compliance documentation.

Parameter Comparison

Engineering Selection Recommendations

The 207441-9 serves as the direct functional equivalent to the obsolete 207441-4. Both parts are manufactured by TE Connectivity AMP Connectors within the Metrimate series and maintain identical electrical and mechanical specifications across all critical parameters.

Product Status Consideration: The 207441-4 carries obsolete status, indicating discontinued production and limited availability. The 207441-9 maintains active product status, ensuring ongoing availability and manufacturer support.

Compliance Advantage: The 207441-9 is certified as RoHS Compliant, whereas the 207441-4 status is listed as not applicable. This compliance certification is relevant for applications subject to RoHS directives and environmental regulations.

Packaging Difference: The 207441-9 is supplied in tray packaging, whereas the 207441-4 packaging specification is not provided. This packaging difference does not affect functional compatibility but may influence procurement logistics and handling procedures.

Application Continuity: Both parts are rated for automotive, general purpose, and industrial applications. The identical electrical ratings (7.5A, 600V), operating temperature range (-55°C ~ 130°C), and mechanical configuration ensure direct substitution without design modification.

Frequently Asked Questions (FAQ)

Q: Can the 207441-9 directly replace the 207441-4 in existing designs?

A: Yes. The 207441-9 maintains identical electrical specifications (7.5A current rating, 600V voltage rating), mechanical configuration (9-position, 3-row, 5.00mm pitch), mounting type (through-hole), and contact characteristics. No design modification is required for direct substitution.

Q: What is the primary reason for substituting the 207441-4?

A: The 207441-4 is classified as obsolete, indicating discontinued production. The 207441-9 is an active product offering equivalent functionality with ongoing manufacturer support and availability.

Q: Are there any electrical performance differences between these parts?

A: No. Both parts share identical current rating (7.5A), voltage rating (600V), operating temperature range (-55°C ~ 130°C), contact materials (brass), and contact finishes (gold mating surface, tin post finish).

Q: Do the mechanical dimensions differ between the two parts?

A: No. Both parts have identical pitch spacing (0.197" / 5.00mm), row spacing (0.197" / 5.00mm), contact post length (0.181" / 4.60mm), and insulation height (0.464" / 11.79mm).

Q: What is the significance of the RoHS Compliant status on the 207441-9?

A: The 207441-9 is certified RoHS Compliant, meeting restrictions on hazardous substances. This certification is relevant for applications subject to RoHS directives and may be required for certain markets or end-use applications.

Q: Does packaging differ between the two parts?

A: Yes. The 207441-9 is supplied in tray packaging, while the 207441-4 packaging is not specified. This difference affects procurement and handling but does not impact functional performance or compatibility.

Q: Are both parts suitable for automotive applications?

A: Yes. Both the 207441-4 and 207441-9 are rated for automotive, general purpose, and industrial applications with identical environmental specifications (UL94 V-0 flammability rating, -55°C ~ 130°C operating temperature).

Q: What is the fastening mechanism for these connectors?

A: Both parts utilize latch lock fastening with shrouded 4-wall design, providing secure mating and alignment for board-to-board or cable connections.
