TE Connectivity 207369-1 Circular Connector Equivalent & Substitute Parts

Part Overview

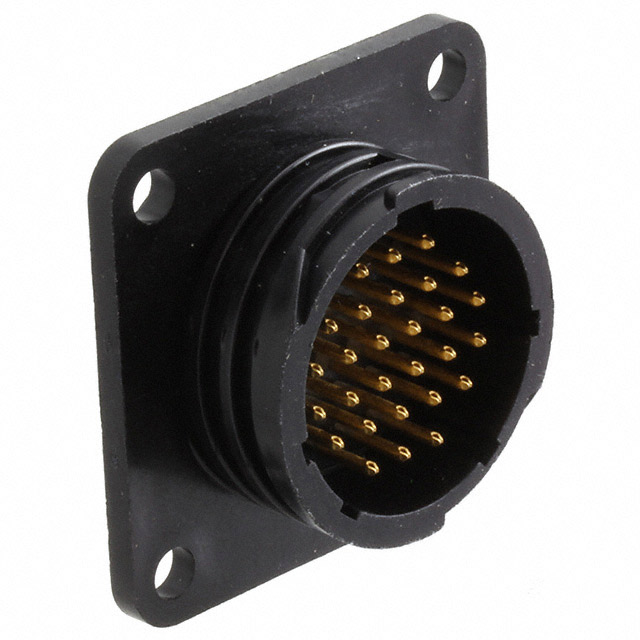

The TE Connectivity 207369-1 is a 28-position circular connector receptacle with male pins, designed for panel mount through-hole applications with solder termination. This connector operates at 7.5A and 250V, suitable for general-purpose applications across an operating temperature range of -40°C to 105°C.

The 207369-1 carries an obsolete product status. Identifying equivalent and substitute parts is necessary to ensure design continuity, maintain supply chain reliability, and support long-term product availability for applications currently utilizing this connector.

Substiute Parts

207369-1

TE Connectivity AMP ConnectorsIn Stock: 817207369-1 Datasheet

Current PartRFQ

1-207369-1

TE Connectivity AMP ConnectorsIn Stock: 20061-207369-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 207369-1 is determined by strict equivalence across the following critical parameters:

Electrical Compatibility:

• Current rating of 7.5A
• Voltage rating of 250V
• Operating temperature range of -40°C to 105°C

Mechanical Compatibility:

• 28-position connector configuration
• Shell size 17-28
• Panel mount, through-hole mounting type
• Flange mounting feature
• Threaded fastening type
• Keyed orientation

Interface Compatibility:

• Receptacle connector type with male pins
• Solder termination method
• Gold contact finish with 30.0µin (0.76µm) thickness

Material & Certification:

• Thermoplastic shell material
• UL94 V-0 flammability rating
• CPC Series 2 classification

Parts meeting all these parameters are classified as direct substitutes. Variations in product status, packaging format, or compliance certifications do not affect functional interchangeability when all electrical, mechanical, and interface parameters remain identical.

Parameter Comparison

Engineering Selection Recommendations

The 1-207369-1 is a direct functional substitute for the obsolete 207369-1. Both parts share identical electrical ratings, mechanical dimensions, and interface specifications. The primary distinctions are product status and regulatory compliance.

Product Status Consideration: The 207369-1 is classified as obsolete, while the 1-207369-1 maintains active product status. For new designs or long-term supply requirements, the 1-207369-1 is the appropriate selection to ensure continued availability and manufacturer support.

Compliance Consideration: The 1-207369-1 is ROHS3 compliant and REACH unaffected, whereas the 207369-1 is RoHS non-compliant with undefined REACH status. Applications subject to environmental regulations or customer compliance requirements should specify the 1-207369-1.

Packaging Consideration: The 1-207369-1 is supplied in tray packaging, which may differ from the original 207369-1 packaging format. Verify packaging compatibility with assembly and handling procedures.

Both parts are suitable for general-purpose applications requiring 28-position circular connectors with solder termination, 7.5A current capacity, and 250V voltage rating across the -40°C to 105°C operating range.

Frequently Asked Questions (FAQ)

Q: Can the 1-207369-1 be used as a direct replacement for the 207369-1 in existing applications?

A: Yes. The 1-207369-1 is functionally equivalent to the 207369-1 across all electrical, mechanical, and interface parameters. Both connectors are 28-position receptacles with male pins, solder termination, 7.5A current rating, 250V voltage rating, and identical operating temperature specifications. Physical dimensions and mounting configurations are identical.

Q: What is the primary reason to transition from 207369-1 to 1-207369-1?

A: The 207369-1 is obsolete, while the 1-207369-1 maintains active product status. Transitioning to the 1-207369-1 ensures long-term supply availability, manufacturer support, and access to current production batches. Additionally, the 1-207369-1 is ROHS3 compliant, addressing regulatory requirements that may apply to new designs or updated product lines.

Q: Are there any electrical performance differences between these two parts?

A: No. Both parts operate at identical electrical specifications: 7.5A current rating, 250V voltage rating, and -40°C to 105°C operating temperature range. Contact finish, material composition, and flammability ratings are identical.

Q: Does the tray packaging of the 1-207369-1 affect compatibility?

A: Packaging format does not affect connector compatibility or performance. However, tray packaging may require different handling procedures during assembly compared to the original 207369-1 packaging. Verify that tray packaging is compatible with your assembly equipment and processes.

Q: Are both parts suitable for the same applications?

A: Yes. Both the 207369-1 and 1-207369-1 are classified for general-purpose applications. The identical 28-position configuration, solder termination, and electrical ratings make them suitable for the same circuit designs and system implementations.

Q: What compliance certifications apply to the 1-207369-1?

A: The 1-207369-1 is ROHS3 compliant and REACH unaffected. Both parts carry UL94 V-0 flammability rating and are classified under ECCN EAR99 and HTSUS 8536.69.4020. The 1-207369-1 provides defined compliance status, whereas the original 207369-1 has undefined REACH status.
