Part Overview

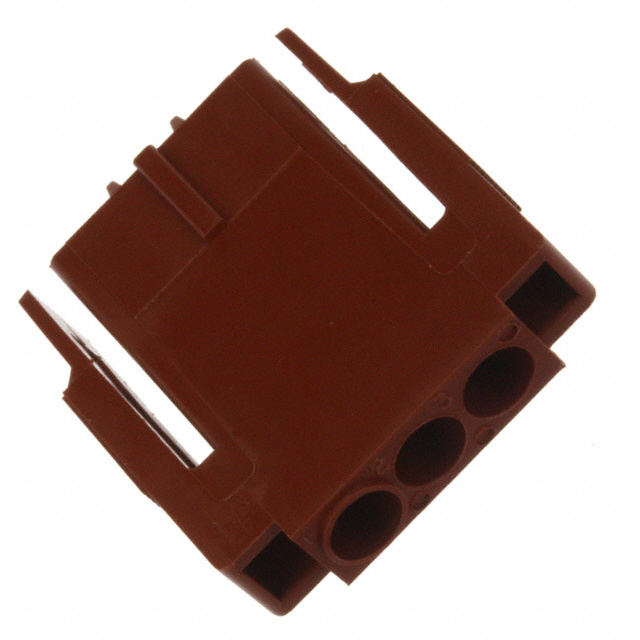

The TE Connectivity AMP Connectors 207360-1 is a 3-position rectangular connector housing plug designed for applications requiring a 5.00mm pitch configuration. This connector operates within the Metrimate series and is classified as an active product with full RoHS3 compliance. The housing features a polarizing key and latch holder fastening mechanism, supporting both crimp and solder contact termination methods.

Substitute parts are identified when equivalent rectangular connector housings share critical electrical and mechanical parameters, including connector type, number of positions, pitch specification, mounting configuration, and operating temperature range compatibility.

Substiute Parts

207360-1

TE Connectivity AMP ConnectorsIn Stock: 1587207360-1 Datasheet

Current PartRFQ

0003097032

MolexIn Stock: 73460003097032 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for rectangular connector housings is determined by alignment across the following critical parameters:

Primary Substitution Criteria:

• Connector type classification (Plug)
• Number of positions (3)
• Pitch specification (5.00mm nominal tolerance)
• Number of rows (1)
• Mounting configuration (Free Hanging In-Line)
• Fastening mechanism (Latch Holder)
• Product status (Active)
• Regulatory compliance (RoHS3)

The Molex 0003097032 connector housing qualifies as a substitute based on matching connector type, position count, single-row configuration, mounting style, and fastening type. The pitch specification of 0.198" (5.03mm) represents a nominal tolerance variation within acceptable mechanical compatibility parameters for this connector category. Both parts maintain active product status and RoHS3 compliance certification.

Parameter Comparison

Engineering Selection Recommendations

TE Connectivity 207360-1 Selection Criteria:

• Applications requiring extended operating temperature range (-55°C to 130°C)
• Designs utilizing both crimp and solder contact termination methods
• Systems where Metrimate series connector ecosystem is established
• Specifications mandating the full temperature performance envelope

Molex 0003097032 Selection Criteria:

• Applications operating within -40°C to 105°C temperature range
• Designs utilizing crimp contact termination exclusively
• Systems where 1396 series connector compatibility is required
• Inventory availability prioritization (7260 units in stock versus 1500 units)

Both parts maintain active product status and ROHS3 compliance certification. The Molex substitute operates within a constrained temperature range relative to the TE Connectivity primary part. Contact termination capability differs, with the TE Connectivity part supporting both crimp and solder methods while the Molex part supports crimp termination only.

Frequently Asked Questions (FAQ)

Q: Can the Molex 0003097032 directly replace the TE Connectivity 207360-1 in all applications?

A: Direct replacement is applicable only in applications where the operating temperature range does not exceed -40°C to 105°C and where crimp contact termination is the sole requirement. Applications requiring solder termination capability or extended temperature performance require the TE Connectivity part.

Q: What is the significance of the pitch tolerance variation between 5.00mm and 5.03mm?

A: The 0.03mm pitch variation represents a nominal tolerance within standard mechanical compatibility parameters for rectangular connector housings in this category. Both specifications fall within acceptable manufacturing tolerances for connector mating and unmating operations.

Q: Are both parts suitable for new design implementations?

A: Both parts maintain active product status. Selection between the two should be based on specific application requirements regarding operating temperature range, contact termination method, and connector series ecosystem compatibility.

Q: What is the impact of the contact termination difference?

A: The TE Connectivity 207360-1 supports both crimp and solder termination, providing design flexibility. The Molex 0003097032 supports crimp termination only. Applications requiring solder termination must use the TE Connectivity part.

Q: How do the regulatory compliance certifications compare?

A: Both parts are ROHS3 compliant and carry MSL 1 (Unlimited) moisture sensitivity classification. Both are classified under ECCN EAR99 and HTSUS 8538.90.6000. Regulatory compliance is equivalent between the two parts.

Q: What packaging format is available for both parts?

A: Both parts are supplied in bulk packaging. The TE Connectivity part has 1500 units in stock, while the Molex part has 7260 units in stock.
