TE Connectivity AMP Connectors 207158-2 Equivalent & Substitute Parts

Part Overview

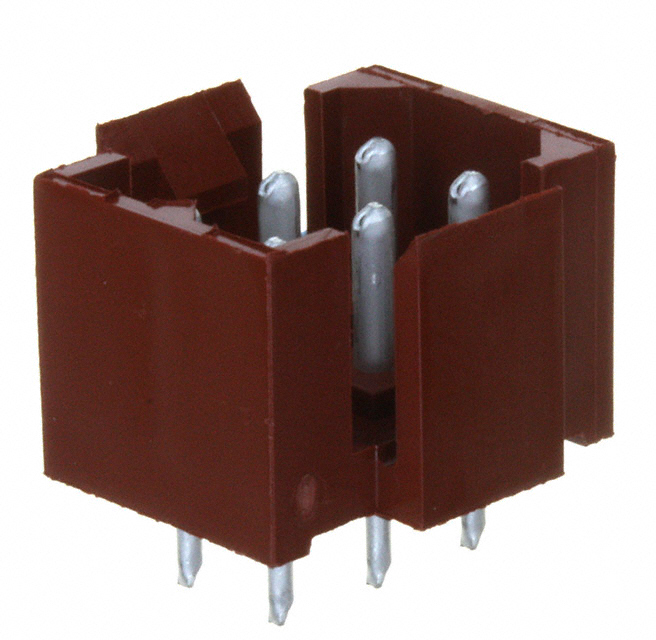

The TE Connectivity AMP Connectors 207158-2 is a rectangular connector header designed for through-hole mounting applications. This connector features a vertical orientation with 6 positions arranged in 2 rows at 5.00mm pitch, suitable for board-to-board or cable interconnections in automotive, general purpose, and industrial applications.

The 207158-2 carries an obsolete product status. Identifying equivalent and substitute parts is necessary to ensure design continuity, maintain supply chain reliability, and support ongoing production and maintenance requirements for systems utilizing this connector.

Substiute Parts

207158-2

TE Connectivity AMP ConnectorsIn Stock: 906207158-2 Datasheet

Current PartRFQ

207158-8

TE Connectivity AMP ConnectorsIn Stock: 1215207158-8 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 207158-2 is determined by strict equivalence across the following critical parameters:

Electrical Parameters:

• Current Rating: 7.5A
• Voltage Rating: 600V
• Operating Temperature Range: -55°C ~ 130°C

Mechanical Parameters:

• Connector Type: Header
• Contact Type: Male Pin
• Number of Positions: 6
• Number of Rows: 2
• Pitch - Mating: 0.197" (5.00mm)
• Row Spacing - Mating: 0.197" (5.00mm)
• Mounting Type: Through Hole
• Shrouding: Shrouded - 4 Wall
• Termination: Solder

Material & Compliance Parameters:

• Contact Material: Brass
• Insulation Material: Polyamide (PA), Nylon
• Material Flammability Rating: UL94 V-0

Substitute parts must match all parameters listed above to ensure functional and mechanical compatibility with existing designs and PCB layouts.

Parameter Comparison

Engineering Selection Recommendations

The 207158-8 is a direct functional equivalent to the 207158-2 across all electrical and mechanical parameters. Both connectors share identical specifications for pitch, position count, row configuration, current and voltage ratings, operating temperature range, and material composition.

The primary distinction between these parts is product status and regulatory compliance. The 207158-2 is classified as obsolete and carries RoHS non-compliant status. The 207158-8 is an active product with RoHS compliant certification, making it the appropriate selection for new designs and applications subject to RoHS regulations.

For applications requiring the 207158-2, the 207158-8 provides full electrical and mechanical compatibility with the added benefit of current product availability and regulatory compliance. Both parts are manufactured by TE Connectivity AMP Connectors within the Metrimate series and utilize identical contact materials, finishes, and insulation specifications.

Frequently Asked Questions (FAQ)

Q: Are the 207158-2 and 207158-8 mechanically interchangeable?

A: Yes. Both connectors share identical mechanical specifications including pitch (5.00mm), position count (6), row configuration (2 rows), mounting type (through hole), shrouding (4 wall), and overall dimensions. They are mechanically interchangeable in PCB layouts and mating applications.

Q: Are the 207158-2 and 207158-8 electrically interchangeable?

A: Yes. Both connectors have identical electrical ratings: 7.5A current capacity, 600V voltage rating, and -55°C to 130°C operating temperature range. They are electrically interchangeable in circuit applications.

Q: What is the difference between the 207158-2 and 207158-8?

A: The primary differences are product status and regulatory compliance. The 207158-2 is obsolete and RoHS non-compliant. The 207158-8 is an active product with RoHS compliant certification. All electrical and mechanical specifications are identical.

Q: Why should I use the 207158-8 instead of the 207158-2?

A: The 207158-8 is the recommended selection because it is an active product with current manufacturing support and RoHS compliance. The 207158-2 is obsolete and may face supply constraints. For new designs and applications subject to RoHS regulations, the 207158-8 is the appropriate choice.

Q: Are there packaging differences between these parts?

A: The 207158-2 packaging information is not specified in available data. The 207158-8 is supplied in bulk packaging. Confirm packaging requirements with your supplier for specific application needs.

Q: Can I use the 207158-8 in existing designs that currently use the 207158-2?

A: Yes. The 207158-8 is a direct substitute for the 207158-2. All electrical, mechanical, and material specifications are identical, ensuring compatibility with existing PCB designs, mating connectors, and circuit applications.

Q: What is the Moisture Sensitivity Level for these connectors?

A: Both the 207158-2 and 207158-8 have a Moisture Sensitivity Level (MSL) of 1, indicating unlimited shelf life without special moisture control requirements.
