NorComp 2064-06-01-P2 Equivalent & Substitute Parts

Part Overview

The NorComp 2064-06-01-P2 is a 6-position rectangular receptacle connector with 0.079" (2.00mm) pitch, designed for through-hole PCB mounting with gold-plated mating contacts. This part is classified as obsolete, making equivalent substitute parts necessary for ongoing production and maintenance applications. The connector features push-pull fastening, solder termination, and is suitable for applications requiring reliable board-to-board or cable interconnection.

Key Parameters

Parameter	Value
Manufacturer Part Number	2064-06-01-P2
Manufacturer	NorComp Inc.
Category	Rectangular Connectors
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	6
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Insulation Color	Black
Insulation Height	0.177" (4.50mm)
Contact Length - Post	0.118" (3.00mm)
Material Flammability Rating	UL94 V-0
Insulation Material	Thermoplastic, Glass Filled
Contact Shape	Square
Contact Material	Phosphor Bronze
RoHS Status	RoHS non-compliant
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitute parts for the NorComp 2064-06-01-P2 are qualified based on the following critical parameters that must match or be compatible:

Core Matching Parameters:

Number of Positions: 6
Pitch - Mating: 0.079" (2.00mm)
Number of Rows: 2
Row Spacing - Mating: 0.079" (2.00mm)
Connector Type: Receptacle
Contact Type: Female Socket
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Contact Finish - Mating: Gold
Insulation Color: Black

Substitution Categories:

Direct Equivalent (Same Series Evolution): The NorComp 25640601RP2 represents the active production equivalent from the same manufacturer, offering identical electrical and mechanical interfaces with improved compliance status.

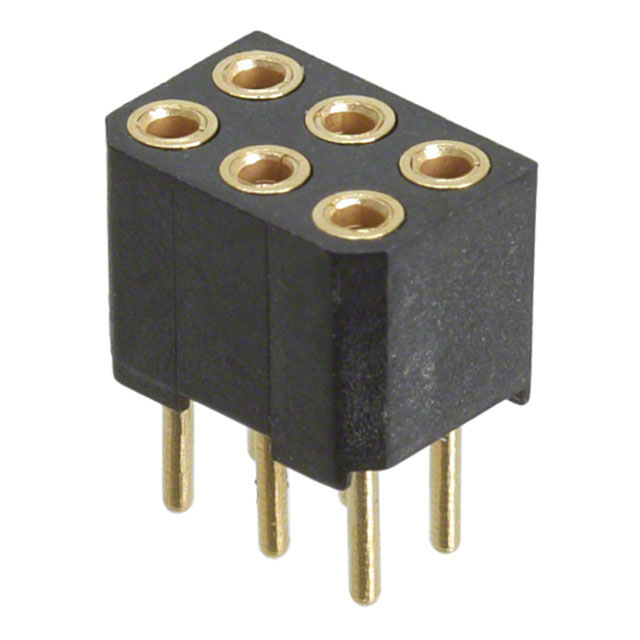

Cross-Manufacturer Equivalents (Functional Compatibility): Parts from Molex (0791077052, 0791077252), Mill-Max Manufacturing (833-13-006-10-002000), Harwin (M22-7140342), and Samtec (SQT-103-01-F-D) provide functionally compatible alternatives with identical mating pitch, position count, and mounting characteristics. These parts accommodate the same plug connectors and maintain mechanical interchangeability on PCBs designed for the original 2064 series.

Parameter Comparison

Parameter	2064-06-01-P2 (Main)	25640601RP2	0791077052	0791077252	833-13-006-10-002000	M22-7140342	SQT-103-01-F-D
Manufacturer	NorComp Inc.	NorComp Inc.	Molex	Molex	Mill-Max Manufacturing Corp.	Harwin Inc.	Samtec Inc.
Series	2064	2564	Milli-Grid 79107	Milli-Grid 79107	833	M22	SQT
Product Status	Obsolete	Active	Active	Active	Active	Active	Active
Number of Positions	6	6	6	6	6	6	6
Pitch - Mating	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Number of Rows	2	2	2	2	2	2	2
Row Spacing - Mating	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Connector Type	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle
Contact Type	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket	Forked
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Contact Finish - Mating	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Insulation Color	Black	Black	Black	Black	Black	Black	Black
Insulation Height	0.177" (4.50mm)	0.177" (4.50mm)	0.175" (4.45mm)	0.175" (4.45mm)	0.179" (4.55mm)	0.173" (4.40mm)	0.250" (6.35mm)
Contact Length - Post	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.075" (1.91mm)	0.111" (2.82mm)	0.094" (2.40mm)	0.090" (2.29mm)
Contact Material	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Beryllium Copper	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square	Square	Square	Circular	Square	Square
Material Flammability Rating	UL94 V-0	UL94 V-0	—	—	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Material	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled	PCT, Polyester	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Current Rating (Amps)	—	1A	1A	1A	3A	2A	5.1A per Contact
Voltage Rating	—	—	125V	125V	—	500VAC	—
Operating Temperature	—	-40°C ~ 105°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-40°C ~ 105°C	-55°C ~ 125°C
RoHS Status	RoHS non-compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Packaging	—	Tray	Tube	—	Tube	Tube	Bulk
Inventory Status	1125 Pcs New Original In Stock	850 Pcs New Original In Stock	1018 Pcs New Original In Stock	824 Pcs New Original In Stock	982 Pcs New Original In Stock	3548 Pcs New Original In Stock	1099 Pcs New Original In Stock

Engineering Selection Recommendations

Primary Recommendation: NorComp 25640601RP2

The 25640601RP2 is the direct successor from NorComp Inc., providing identical mechanical and electrical interfaces to the obsolete 2064-06-01-P2. This part maintains the same pitch, position count, row configuration, and mounting characteristics. The 25640601RP2 carries active product status and ROHS3 compliance, making it the preferred choice for new designs and production continuity. Inventory availability is adequate at 850 pieces.

Secondary Recommendations: Cross-Manufacturer Alternatives

For applications requiring extended operating temperature ranges or higher current ratings, the following active parts provide functional compatibility:

Molex 0791077052 (Milli-Grid 79107): Supports -55°C to 125°C operating range and 125V rating. Highest inventory availability at 1018 pieces.
Harwin M22-7140342: Offers 2A current rating and 500VAC voltage rating with 3548 pieces in stock, providing superior availability.
Samtec SQT-103-01-F-D: Delivers highest current capacity at 5.1A per contact with extended temperature range (-55°C to 125°C).

Compliance Considerations:

All substitute parts carry ROHS3 compliance status, addressing the RoHS non-compliance of the original 2064-06-01-P2. Selection should account for application-specific compliance requirements and regulatory mandates.

Frequently Asked Questions (FAQ)

Q: Can the NorComp 25640601RP2 directly replace the 2064-06-01-P2 on existing PCBs?

A: Yes. The 25640601RP2 maintains identical mating pitch (0.079"), position count (6), row configuration (2 rows), and through-hole mounting footprint. Existing plug connectors designed for the 2064 series will mate with the 25640601RP2 without modification.

Q: What are the key differences between the NorComp 25640601RP2 and cross-manufacturer alternatives?

A: The primary differences are insulation material composition, contact material (phosphor bronze vs. beryllium copper), contact shape (square vs. circular), and electrical ratings. All parts maintain identical mating pitch and position count. The 25640601RP2 uses thermoplastic glass-filled insulation, while Harwin and Samtec alternatives use liquid crystal polymer (LCP). Mill-Max uses beryllium copper contacts with circular geometry instead of phosphor bronze square contacts.

Q: Are there mechanical compatibility concerns with substitute parts?

A: Insulation height varies slightly across substitutes (0.173" to 0.250"), which may affect PCB layout clearances. Contact length post dimensions also vary (0.075" to 0.118"), potentially impacting solder joint formation on different PCB thicknesses. Verify mechanical fit within your specific PCB design before production implementation.

Q: Which substitute part offers the best electrical performance?

A: The Samtec SQT-103-01-F-D provides the highest current capacity at 5.1A per contact. The Harwin M22-7140342 offers the highest voltage rating at 500VAC. Selection depends on application-specific electrical requirements.

Q: What packaging options are available for substitute parts?

A: The NorComp 25640601RP2 is supplied in trays. Molex parts are available in tubes. Mill-Max is supplied in tubes. Harwin is supplied in tubes. Samtec is supplied in bulk. Packaging selection may affect handling, storage, and assembly processes.

Q: Are all substitute parts RoHS compliant?

A: Yes. All substitute parts carry ROHS3 compliance status. The original 2064-06-01-P2 is RoHS non-compliant. Substitution addresses regulatory compliance requirements for new production.

Q: What is the operating temperature range for each substitute?

A: The NorComp 25640601RP2 and Harwin M22-7140342 operate from -40°C to 105°C. Molex 0791077052, Molex 0791077252, Mill-Max 833-13-006-10-002000, and Samtec SQT-103-01-F-D all support -55°C to 125°C. Application thermal requirements should guide selection.
