TE Connectivity 205980-5 D-Sub Jackscrew Retainer Kit Equivalent & Substitute Parts

Part Overview

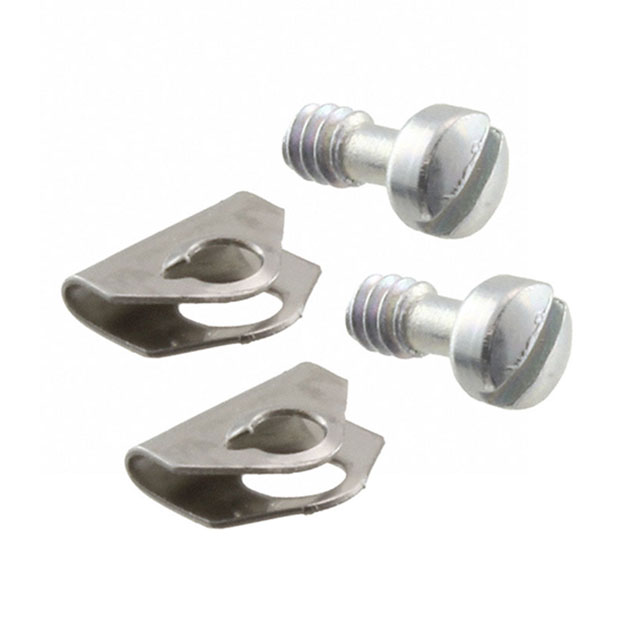

The TE Connectivity 205980-5 is a slotted jackscrew retainer kit containing four pieces designed for AMPLIMITE Series HDE and HDP D-Sub connectors. This component functions as a mechanical fastening accessory that secures D-Sub connector assemblies through threaded engagement. The part is classified as obsolete, necessitating identification of active equivalent and substitute components to maintain supply chain continuity and support ongoing applications requiring AMPLIMITE Series connector retention hardware.

Substiute Parts

205980-5

TE Connectivity AMP ConnectorsIn Stock: 756205980-5 Datasheet

Current PartRFQ

5205980-5

TE Connectivity AMP ConnectorsIn Stock: 27335205980-5 Datasheet

DirectRFQ

160-000-002R032

NorComp Inc.In Stock: 783160-000-002R032 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 205980-5 is determined by the following critical parameters: thread size (4-40), accessory type (jackscrew with slotted configuration), presence of clip feature, and mechanical compatibility with target connector series. The main part is obsolete; therefore, direct equivalents and functional alternatives are identified based on matching these core specifications.

Two substitute parts are provided:

Direct Equivalent (5205980-5): Manufactured by TE Connectivity AMP Connectors, this part maintains identical specifications to the main part including thread size, length below head, clip feature, and AMPLIMITE Series compatibility. The primary distinction is active product status and RoHS compliance.

Functional Alternative (160-000-002R032): Manufactured by NorComp Inc., this part shares the 4-40 thread size, slotted jackscrew configuration, and clip feature. It is designed for general D-Sub connector applications rather than the specific AMPLIMITE series, with dimensional variations in the threaded portion length and overall length below head.

Parameter Comparison

Engineering Selection Recommendations

Primary Selection: 5205980-5

The 5205980-5 is the recommended substitute for the obsolete 205980-5. This part is manufactured by the same supplier (TE Connectivity AMP Connectors) and maintains identical mechanical and functional specifications including thread size, length below head, and AMPLIMITE Series compatibility. The part holds active product status, ensuring ongoing availability. The 5205980-5 achieves RoHS compliance and REACH compliance status, meeting current regulatory requirements for new designs and production environments. Inventory availability is substantial at 2714 pieces.

Secondary Selection: 160-000-002R032

The 160-000-002R032 serves as a functional alternative when AMPLIMITE Series-specific compatibility is not a constraint. This NorComp Inc. part shares the 4-40 thread size and slotted jackscrew configuration with clip feature. The dimensional difference in length below head (0.294" versus 0.220") requires mechanical validation for specific connector housing geometries. This part achieves ROHS3 compliance and REACH unaffected status, providing regulatory advantages in certain supply chain contexts. Inventory availability is 760 pieces.

Frequently Asked Questions (FAQ)

Q: Can the 5205980-5 directly replace the obsolete 205980-5 in existing AMPLIMITE Series HDE and HDP connector applications?

A: Yes. The 5205980-5 maintains identical specifications for thread size (4-40), length below head (0.220"), clip feature, and AMPLIMITE Series compatibility. The parts are mechanically and functionally interchangeable.

Q: What is the primary difference between the 5205980-5 and the original 205980-5?

A: The 5205980-5 is the active production equivalent with RoHS compliance status. The original 205980-5 is classified as obsolete and RoHS non-compliant. All mechanical specifications remain identical.

Q: When should the 160-000-002R032 be considered as a substitute?

A: The 160-000-002R032 is suitable when the application involves general D-Sub connectors rather than AMPLIMITE Series-specific housings. The increased length below head (0.294" versus 0.220") must be validated against the target connector geometry to ensure proper fit and function.

Q: Are there packaging differences between the substitute parts?

A: Yes. The 205980-5 original part has unspecified packaging. The 5205980-5 is supplied in bag packaging. The 160-000-002R032 is supplied in box packaging. Packaging format may affect inventory management and component handling procedures.

Q: Do all three parts share the same thread size specification?

A: Yes. All three parts (205980-5, 5205980-5, and 160-000-002R032) utilize 4-40 thread size, ensuring compatibility with connector housings designed for this specification.

Q: What are the regulatory compliance differences between the substitute options?

A: The 5205980-5 achieves RoHS compliance and REACH affected status. The 160-000-002R032 achieves ROHS3 compliance and REACH unaffected status. Selection depends on regulatory requirements for the target application and supply chain jurisdiction.

Q: Is the clip feature present on all substitute parts?

A: Yes. All three parts (205980-5, 5205980-5, and 160-000-002R032) include the clip feature as a standard component specification.
