TE Connectivity 205860-1 D-Sub Receptacle Equivalent & Substitute Parts

Part Overview

The TE Connectivity 205860-1 is a 37-position D-Sub receptacle connector with female sockets, configured for right-angle through-hole solder termination. This connector is part of the AMPLIMITE HDP-20 series and maintains active product status. The connector features a steel shell with yellow chromate plated zinc finish, gold-flashed contacts, and is rated for 6A at 125V across an operating temperature range of -55°C to 105°C.

Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the connector's critical functional specifications, including position count, mounting configuration, termination method, and environmental ratings.

Substiute Parts

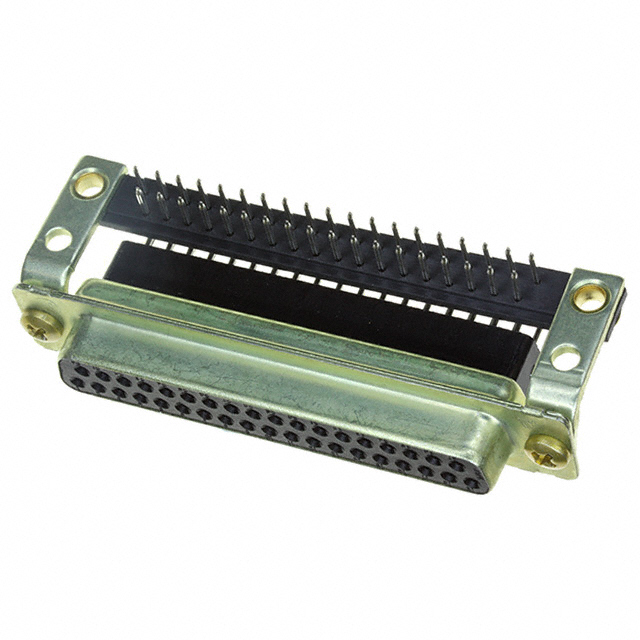

205860-1

TE Connectivity AMP ConnectorsIn Stock: 963205860-1 Datasheet

Current PartRFQ

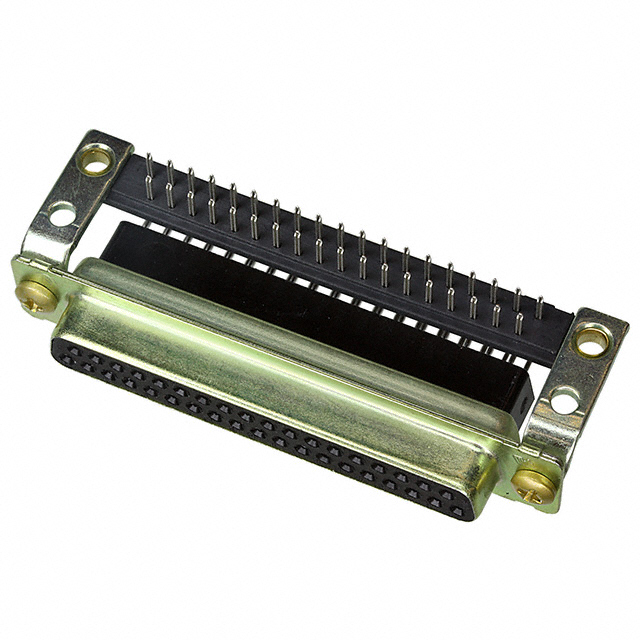

5205860-1

TE Connectivity AMP ConnectorsIn Stock: 12705205860-1 Datasheet

DirectRFQ

205860-1

TE Connectivity AMP ConnectorsIn Stock: 963205860-1 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the TE Connectivity 205860-1 are identified based on strict equivalence across all critical electrical and mechanical parameters. The substitution logic is structured as follows:

Direct Manufacturer Substitutes maintain identical specifications across connector style, position count, mounting configuration, termination method, electrical ratings, environmental specifications, and physical dimensions. These parts are interchangeable at the functional level and share the same AMPLIMITE HDP-20 series designation.

The key parameters that determine substitutability are:

• Connector type (Receptacle, Female Sockets)
• Position count (37 positions, 2 rows)
• Shell size and layout (4 DC, C)
• Mounting method (Through Hole, Right Angle)
• Termination type (Solder)
• Current and voltage ratings (6A, 125V)
• Operating temperature range (-55°C to 105°C)
• Shell material and finish (Steel, Yellow Chromate Plated Zinc)
• Contact finish (Gold, Flash)
• Flange configuration (Mating Side, Standard Screws 4-40)
• Dielectric material (Polyamide PA, Nylon, Glass Filled)
• Backset spacing (0.545" / 13.84mm)

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 5205860-1 serves as a direct functional substitute for the 205860-1 across all electrical and mechanical parameters. Both connectors maintain identical specifications for position count, mounting configuration, termination method, electrical ratings, environmental operating range, and physical dimensions.

The primary distinction between these parts is regulatory compliance status. The 5205860-1 carries RoHS Compliant certification, while the 205860-1 is RoHS non-compliant. Selection between these parts should be based on the specific regulatory requirements of the application and end-use market.

Both parts maintain active product status with TE Connectivity and are available in production quantities. The 5205860-1 is supplied in bulk packaging, while the 205860-1 packaging specification is not defined in the provided data.

Frequently Asked Questions (FAQ)

Q: Are the 205860-1 and 5205860-1 electrically and mechanically interchangeable?

A: Yes. Both connectors maintain identical electrical ratings (6A at 125V), mechanical configuration (37-position D-Sub receptacle, right-angle through-hole solder termination), operating temperature range (-55°C to 105°C), and physical dimensions including backset spacing (0.545" / 13.84mm). They are functionally equivalent for circuit board integration.

Q: What is the difference between these two part numbers?

A: The primary difference is RoHS compliance status. The 5205860-1 is RoHS Compliant, while the 205860-1 is RoHS non-compliant. Both parts are manufactured by TE Connectivity, belong to the AMPLIMITE HDP-20 series, and share identical connector specifications.

Q: Can I use the 5205860-1 as a replacement for the 205860-1 in existing designs?

A: The 5205860-1 is functionally equivalent to the 205860-1 across all electrical and mechanical parameters. Selection should be based on regulatory compliance requirements for your specific application. If RoHS compliance is required, the 5205860-1 is the appropriate choice.

Q: What is the difference in packaging between these parts?

A: The 5205860-1 is supplied in bulk packaging. The 205860-1 packaging specification is not provided in the available data. Contact the supplier for specific packaging details if this is a critical requirement for your procurement process.

Q: Are both parts currently available?

A: Yes. Both parts maintain active product status. The 205860-1 has 910 pieces in stock, and the 5205860-1 has 1225 pieces in stock as new original inventory.

Q: What connector series do these parts belong to?

A: Both the 205860-1 and 5205860-1 are part of the TE Connectivity AMPLIMITE HDP-20 series of D-Sub connectors.

Q: What are the environmental operating specifications?

A: Both connectors operate across a temperature range of -55°C to 105°C with a Moisture Sensitivity Level of 1 (Unlimited). The material flammability rating is UL94 V-0 for both parts.
