Bourns 2036-60-C2 Gas Discharge Tube: Equivalent & Substitute Parts

Part Overview

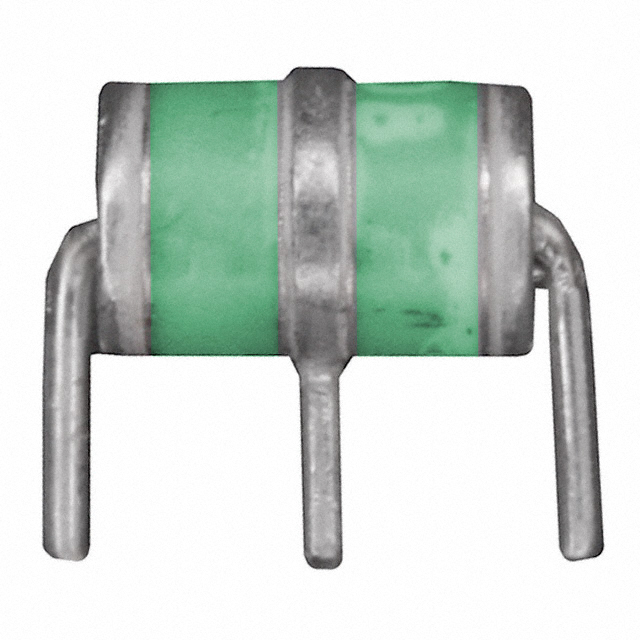

The Bourns 2036-60-C2 is a 3-pole gas discharge tube (GDT) rated for 600V DC spark-over voltage with 10kA impulse discharge current capacity. This component belongs to the Mini-TRIGARD™ 2036 series and is designed for through-hole mounting in axial cylinder configuration with radial bend leads.

The 2036-60-C2 carries an obsolete product status. Identifying equivalent substitute parts is necessary to maintain design continuity, ensure supply chain reliability, and support ongoing production or maintenance requirements for systems utilizing this component.

Substiute Parts

2036-60-C2

Bourns Inc.In Stock: 9042036-60-C2 Datasheet

Current PartRFQ

2036-60-B2

Bourns Inc.In Stock: 10362036-60-B2 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 2036-60-C2 is determined by strict equivalence across the following critical parameters:

• Voltage - DC Spark Over (Nominal): 600 V
• Impulse Discharge Current (8/20µs): 10000A (10kA)
• Tolerance: ±20%
• Number of Poles: 3
• Fail Short characteristic: No
• Mounting Type: Through Hole
• Package / Case: Axial Cylinder, 3 Lead (Radial Bend)
• Series: Mini-TRIGARD™ 2036

The substitute part 2036-60-B2 meets all these criteria and is therefore classified as a direct equivalent. The primary distinction between the main part and its substitute is product status and packaging configuration.

Parameter Comparison

Engineering Selection Recommendations

The 2036-60-B2 is the direct substitute for the obsolete 2036-60-C2. Both components are manufactured by Bourns Inc. and share identical electrical and mechanical specifications across all critical parameters.

The 2036-60-B2 carries active product status, ensuring ongoing availability and supply chain support. Both parts maintain equivalent RoHS non-compliance and REACH-affected status, with identical export classification (EAR99) and tariff codes (8536.30.8000).

For applications currently using the 2036-60-C2, transition to the 2036-60-B2 requires no design modifications. The packaging difference (tray versus unspecified for the main part) does not affect functional performance or mechanical fit in through-hole applications.

Frequently Asked Questions (FAQ)

Q: Can the 2036-60-B2 directly replace the 2036-60-C2 in existing designs?

A: Yes. The 2036-60-B2 is electrically and mechanically equivalent to the 2036-60-C2. Both components feature identical 600V DC spark-over voltage, 10kA impulse discharge current, 3-pole configuration, and through-hole axial cylinder package with radial bend leads. No circuit modifications are required.

Q: What is the primary reason to transition from 2036-60-C2 to 2036-60-B2?

A: The 2036-60-C2 is obsolete, while the 2036-60-B2 maintains active product status. This ensures continued availability, supply chain reliability, and manufacturer support for new production and maintenance applications.

Q: Are there any compliance differences between these parts?

A: No. Both the 2036-60-C2 and 2036-60-B2 share identical RoHS non-compliance status, REACH-affected classification, EAR99 export control designation, and HTSUS tariff code 8536.30.8000.

Q: Does packaging affect substitution compatibility?

A: Packaging configuration (tray versus other formats) does not affect electrical performance or mechanical fit. Both parts are suitable for through-hole mounting applications with identical lead geometry and spacing.

Q: Are there any electrical parameter differences?

A: No. Both parts are rated for 600V DC spark-over voltage with 10kA impulse discharge current capacity at ±20% tolerance. The 3-pole configuration and fail-short characteristic are identical.
