Equivalent & Substitute Parts for Bourns 2036-20-C2F

Part Overview

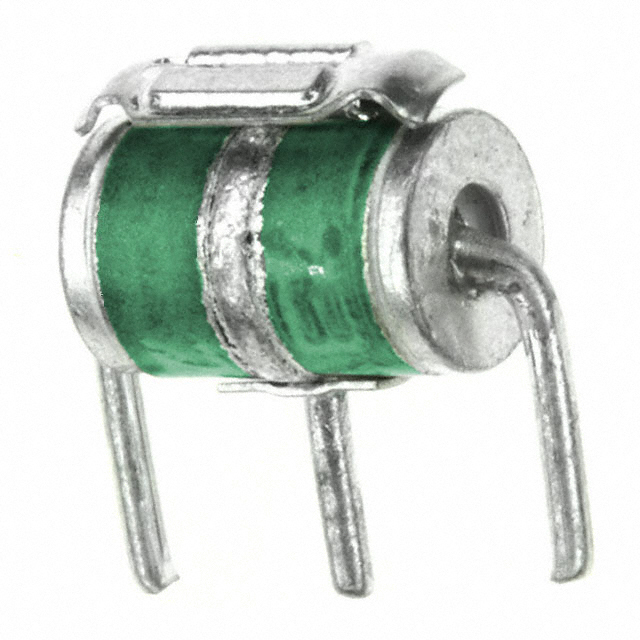

The Bourns 2036-20-C2F is a Gas Discharge Tube (GDT) rated for 200V DC spark-over voltage with 10kA impulse discharge current capacity in a 3-pole through-hole configuration. This component is classified as obsolete, making identification of suitable substitute parts essential for ongoing design support and procurement planning. The 2036-20-C2F belongs to the Mini-TRIGARD™ 2036 series and is designed for transient overvoltage protection applications requiring multi-pole surge suppression.

Substiute Parts

2036-20-C2F

Bourns Inc.In Stock: 9772036-20-C2F Datasheet

Current PartRFQ

2036-20-B2F

Bourns Inc.In Stock: 9222036-20-B2F Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 2036-20-C2F is determined by strict equivalence across the following critical parameters:

• Voltage - DC Spark Over (Nominal): 200 V
• Impulse Discharge Current (8/20µs): 10000A (10kA)
• Tolerance: ±20%
• Number of Poles: 3
• Fail Mode: Short
• Mounting Type: Through Hole
• Package / Case: Axial Cylinder, 3 Lead (Radial Bend)
• Series: Mini-TRIGARD™ 2036

The identified substitute part maintains identical electrical performance specifications and mechanical form factor, differing only in product status and packaging configuration.

Parameter Comparison

Engineering Selection Recommendations

The 2036-20-B2F serves as the direct substitute for the obsolete 2036-20-C2F. Both parts are manufactured by Bourns Inc. within the Mini-TRIGARD™ 2036 series and provide identical electrical and mechanical specifications. The primary distinction is product status: the 2036-20-B2F is active and currently available, whereas the 2036-20-C2F is obsolete.

Both parts carry identical compliance designations (RoHS non-compliant, REACH Affected, ECCN EAR99, HTSUS 8536.30.8000), ensuring no regulatory or certification barriers to substitution. The 2036-20-B2F is supplied in tray packaging, which is standard for active production inventory.

Frequently Asked Questions (FAQ)

Q: Can the 2036-20-B2F be used as a direct replacement for the 2036-20-C2F?

A: Yes. Both parts are electrically and mechanically identical, with matching voltage ratings (200V DC spark-over), discharge current capacity (10kA), pole configuration (3-pole), and physical form factor (axial cylinder, 3-lead radial bend through-hole). The 2036-20-B2F is the active production equivalent.

Q: What is the difference between the 2036-20-C2F and 2036-20-B2F?

A: The 2036-20-C2F is obsolete, while the 2036-20-B2F is active. The 2036-20-B2F is supplied in tray packaging. All electrical and mechanical parameters are identical.

Q: Are there any compliance or certification differences?

A: No. Both parts share identical RoHS, REACH, ECCN, and HTSUS classifications.

Q: What packaging is available for the substitute part?

A: The 2036-20-B2F is supplied in tray packaging.
