Bourns 2035-60-C5 Gas Discharge Tube: Equivalent & Substitute Parts

Part Overview

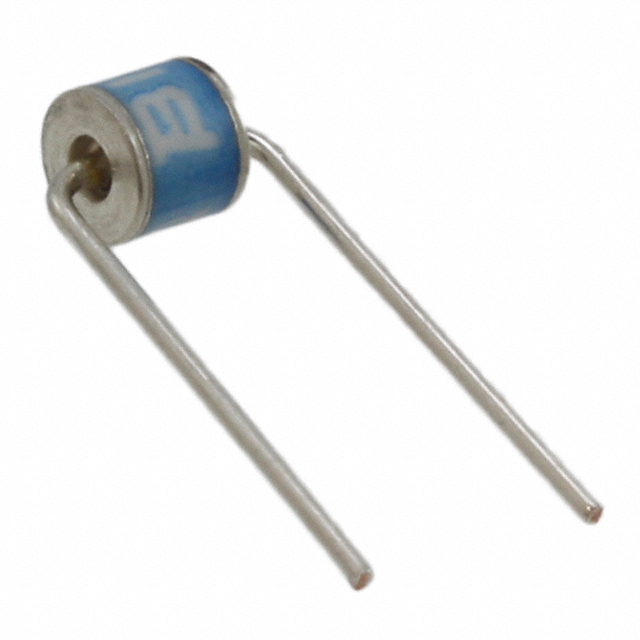

The Bourns 2035-60-C5 is a 2-pole gas discharge tube (GDT) rated for 600V DC spark-over voltage with 5000A (5kA) impulse discharge current capacity. This component is designed for through-hole mounting applications requiring overvoltage protection in industrial and telecommunications equipment.

The 2035-60-C5 is classified as obsolete. Locating equivalent substitute parts is necessary to maintain design continuity and ensure continued availability for production, repair, and field replacement applications.

Substiute Parts

2035-60-C5

Bourns Inc.In Stock: 11532035-60-C5 Datasheet

Current PartRFQ

2035-60-B5

Bourns Inc.In Stock: 11302035-60-B5 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 2035-60-C5 is determined by strict equivalence across the following critical parameters:

• Voltage - DC Spark Over (Nominal): 600 V
• Impulse Discharge Current (8/20µs): 5000A (5kA)
• Tolerance: ±15%
• Number of Poles: 2
• Fail Short characteristic: No
• Mounting Type: Through Hole
• Package / Case: Axial Cylinder, Radial Bend
• Series: 2035

The substitute part 2035-60-B5 meets all electrical and mechanical specifications required for direct substitution. The primary distinction is product status and packaging configuration.

Parameter Comparison

Engineering Selection Recommendations

The 2035-60-B5 is the direct equivalent substitute for the obsolete 2035-60-C5. Both components share identical electrical ratings, mechanical specifications, and regulatory compliance status. The 2035-60-B5 is currently in active production with confirmed inventory availability (1100 pcs), making it the appropriate selection for new designs, production continuity, and field replacement applications.

Both parts maintain RoHS non-compliant and REACH Affected status. Compliance requirements for your application must be evaluated independently.

Frequently Asked Questions (FAQ)

Q: Can the 2035-60-B5 be used as a direct replacement for the 2035-60-C5?

A: Yes. The 2035-60-B5 meets all electrical and mechanical specifications of the 2035-60-C5, including 600V DC spark-over voltage, 5000A impulse discharge current, 2-pole configuration, and through-hole mounting in axial cylinder radial bend package.

Q: What is the difference between the 2035-60-C5 and 2035-60-B5?

A: The primary differences are product status and packaging. The 2035-60-C5 is obsolete, while the 2035-60-B5 is active production. The 2035-60-B5 is supplied in bulk packaging. All electrical and mechanical parameters are identical.

Q: Are there any compatibility concerns when substituting the 2035-60-B5 for the 2035-60-C5?

A: No compatibility concerns exist for applications requiring the specified electrical ratings and through-hole mounting configuration. Both components are from the same Bourns 2035 series and share identical package geometry.

Q: What regulatory compliance applies to both parts?

A: Both the 2035-60-C5 and 2035-60-B5 are RoHS non-compliant and REACH Affected. Compliance verification for your specific application and region must be conducted independently.
