TE Connectivity AMP Connectors 2016080-2 BNC Jack Coaxial Connector Equivalent & Substitute Parts

Part Overview

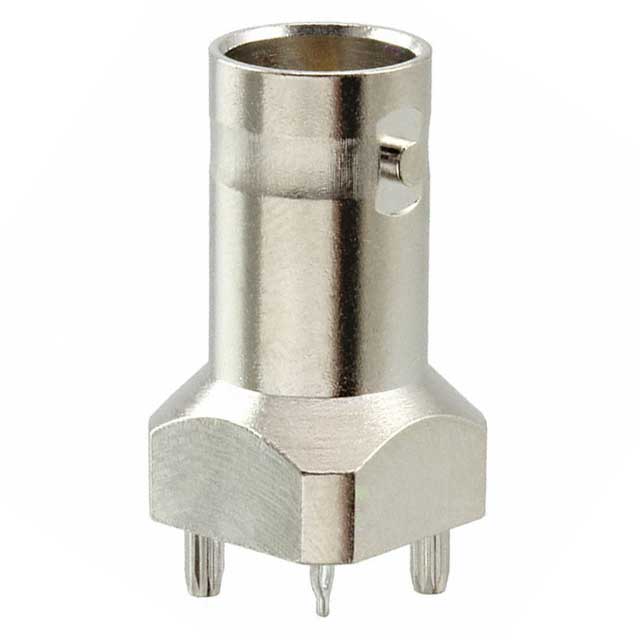

The TE Connectivity AMP Connectors 2016080-2 is a BNC connector jack with female socket configuration rated for 75 ohms impedance. This component is designed for through-hole press-fit mounting on printed circuit boards and operates across a frequency range up to 2 GHz. The part is classified as obsolete, necessitating identification of equivalent and substitute components for ongoing design requirements and procurement needs. Substitute parts maintain functional compatibility while offering alternative availability and compliance status options.

Substiute Parts

2016080-2

TE Connectivity AMP ConnectorsIn Stock: 7502016080-2 Datasheet

Current PartRFQ

221336-3

TE Connectivity AMP ConnectorsIn Stock: 1113221336-3 Datasheet

Parametric EquivalentRFQ

414088-1

TE Connectivity AMP ConnectorsIn Stock: 1218414088-1 Datasheet

Parametric EquivalentRFQ

5414088-1

TE Connectivity AMP ConnectorsIn Stock: 11505414088-1 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 2016080-2 is determined by strict equivalence across the following critical parameters: connector style (BNC), connector type (jack, female socket), impedance (75 ohms), mounting type (through hole), contact and shield termination method (press-fit), fastening type (bayonet lock), frequency maximum (2 GHz), number of ports (1), voltage rating (500 V), mating cycles (500), dielectric material (PTFE), center contact plating (gold), body finish (nickel), and moisture sensitivity level (MSL 1). All identified substitute parts meet these core electrical and mechanical requirements. Variations in body material composition, center contact material, product status, and compliance certifications are noted but do not preclude functional substitution within the specified parameter envelope.

Parameter Comparison

Engineering Selection Recommendations

TE Connectivity AMP Connectors 221336-3: This part is electrically and mechanically equivalent to the 2016080-2 across all critical RF and mechanical parameters. The 221336-3 maintains active product status and offers superior inventory availability. However, this part carries RoHS non-compliant status, which may restrict use in applications subject to RoHS regulations. Selection of this part is appropriate for applications without RoHS compliance requirements.

TE Connectivity AMP Connectors 414088-1: This part meets all electrical and mechanical equivalence criteria and provides an extended operating temperature range of -65°C to 125°C compared to the -55°C to 85°C range of the main part. The 414088-1 is classified as discontinued at DiGi Electronics and carries REACH Affected status. This part is suitable for applications requiring extended temperature performance but may face procurement challenges due to discontinued status.

TE Connectivity AMP Connectors 5414088-1: This part is electrically and mechanically equivalent to the 2016080-2 and maintains active product status with the highest inventory availability. The 5414088-1 carries ROHS3 Compliant certification and REACH Affected status, making it suitable for applications with RoHS3 compliance requirements. This part is supplied in bulk packaging and represents the optimal choice for new designs requiring regulatory compliance.

Frequently Asked Questions (FAQ)

Q: Can the 221336-3 be used as a direct replacement for the 2016080-2 in all applications?

A: The 221336-3 is electrically and mechanically equivalent to the 2016080-2 across all specified RF and mechanical parameters. However, the 221336-3 is RoHS non-compliant, whereas the 2016080-2 is RoHS compliant. Applications subject to RoHS regulations must not use the 221336-3 as a replacement.

Q: What is the significance of the extended operating temperature range in the 414088-1?

A: The 414088-1 operates across -65°C to 125°C, compared to -55°C to 85°C for the 2016080-2. This extended range accommodates applications requiring operation in more extreme thermal environments. However, this parameter difference does not affect substitution eligibility for applications operating within the standard -55°C to 85°C range.

Q: Why is the 5414088-1 recommended for new designs?

A: The 5414088-1 combines active product status, ROHS3 compliance, and the highest inventory availability among all substitute options. These factors ensure long-term procurement viability and regulatory compliance for new product development.

Q: Are there material composition differences between the main part and substitutes?

A: Yes. The 2016080-2 features a phosphor bronze center contact and brass body material. The substitute parts (221336-3, 414088-1, and 5414088-1) use beryllium copper center contacts and zinc body material. These material differences do not affect electrical performance within the specified parameter envelope but may influence mechanical durability and environmental resistance characteristics.

Q: What is the impact of packaging differences?

A: The 5414088-1 is supplied in bulk packaging, whereas the 2016080-2 packaging specification is not provided. Bulk packaging typically accommodates higher-volume procurement and may offer cost advantages for large-scale manufacturing operations.

Q: How do compliance certifications affect part selection?
