TE Connectivity 2008615-1 Modular Coupler Connector Equivalent & Substitute Parts

Part Overview

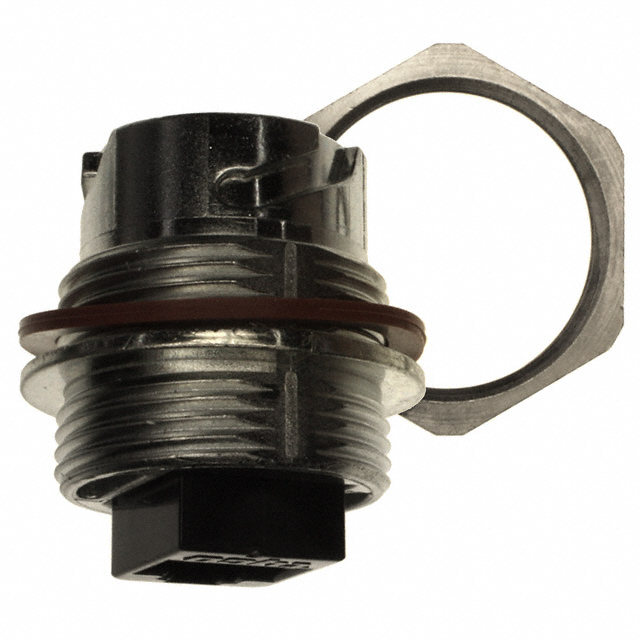

The TE Connectivity 2008615-1 is a modular coupler connector jack designed to connect two 8-position 8-contact (8p8c) RJ45 interfaces. This unshielded Cat5e coupler features circular bayonet coupling with panel mount, bulkhead installation via front side nut. The part is classified as obsolete, necessitating identification of active equivalent alternatives for ongoing procurement and system integration.

Substiute Parts

2008615-1

TE Connectivity AMP ConnectorsIn Stock: 10232008615-1 Datasheet

Current PartRFQ

2355443-1

TE Connectivity AMP ConnectorsIn Stock: 12982355443-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete 2008615-1 is based on functional equivalence across the following critical parameters:

Functional Interface Requirements:

• Both parts must support 8p8c (RJ45) jack-to-jack connection
• Circular bayonet coupling mechanism must be maintained
• Panel mount, bulkhead configuration with front side nut must be preserved

Electrical and Environmental Specifications:

• Cat5e category rating compliance
• Operating temperature range of -40°C to 85°C
• IP67 ingress protection rating
• Phosphor bronze contacts with gold finish

Compliance and Regulatory Status:

• RoHS compliance (RoHS3 for main part; RoHS Compliant for substitute)
• ECCN classification EAR99
• HTSUS code 8536.69.4030

The substitute part 2355443-1 maintains functional compatibility through identical interface specifications, coupling mechanism, mounting type, and environmental ratings. The primary difference is the addition of shielding in the substitute part, which represents an enhancement rather than a functional deviation.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 2355443-1 is the designated active substitute for the obsolete 2008615-1. Selection of this substitute is supported by the following engineering criteria:

Product Status and Availability: The 2355443-1 maintains active product status with confirmed inventory of 1228 pieces, ensuring long-term procurement viability compared to the obsolete 2008615-1.

Functional Compatibility: Both parts maintain identical interface specifications (8p8c RJ45 jack-to-jack), coupling mechanism (circular bayonet), and mounting configuration (panel mount bulkhead with front side nut). Operating temperature ranges and ingress protection ratings are equivalent.

Compliance Alignment: The substitute part maintains RoHS compliance and EAR99 ECCN classification consistent with the original part. Both parts share the same HTSUS commodity code, confirming regulatory equivalence.

Enhanced Specification: The 2355443-1 incorporates shielding, which provides electromagnetic interference mitigation beyond the unshielded original design. This enhancement does not compromise backward compatibility and supports applications requiring improved signal integrity.

Frequently Asked Questions (FAQ)

Q: Can the 2355443-1 directly replace the 2008615-1 in existing installations?

A: Yes. Both parts maintain identical 8p8c (RJ45) jack-to-jack interface specifications, circular bayonet coupling, and panel mount bulkhead configuration with front side nut. The mechanical and electrical interfaces are fully compatible.

Q: What is the primary difference between these two parts?

A: The 2355443-1 incorporates shielding, whereas the 2008615-1 is unshielded. Both are Cat5e rated. The shielding in the substitute part provides enhanced electromagnetic interference rejection without affecting mechanical or electrical compatibility.

Q: Are there any temperature or environmental limitations when substituting?

A: No. Both parts operate across the identical temperature range of -40°C to 85°C and maintain IP67 ingress protection rating. Environmental specifications are equivalent.

Q: Does the substitute part require different mounting hardware?

A: No. The 2355443-1 uses the same panel mount, bulkhead configuration with front side nut as the original 2008615-1. Mounting hardware and installation procedures remain unchanged.

Q: What is the compliance status of the substitute part?

A: The 2355443-1 is RoHS Compliant and REACH Affected. It maintains EAR99 ECCN classification and the same HTSUS code (8536.69.4030) as the original part, ensuring regulatory equivalence.

Q: Is the substitute part available in different packaging options?

A: The 2355443-1 is supplied in bulk packaging. The original 2008615-1 packaging specification was not defined in the product data. Confirm packaging requirements with procurement specifications.

Q: Can both shielded and unshielded versions be used interchangeably in the same system?

A: Yes, from a mechanical and electrical interface perspective. However, system-level electromagnetic compatibility requirements should be evaluated. The shielded 2355443-1 is suitable for applications where the unshielded 2008615-1 was previously used.
