TE Connectivity AMP Connectors 2008614-1 Equivalent & Substitute Parts

Part Overview

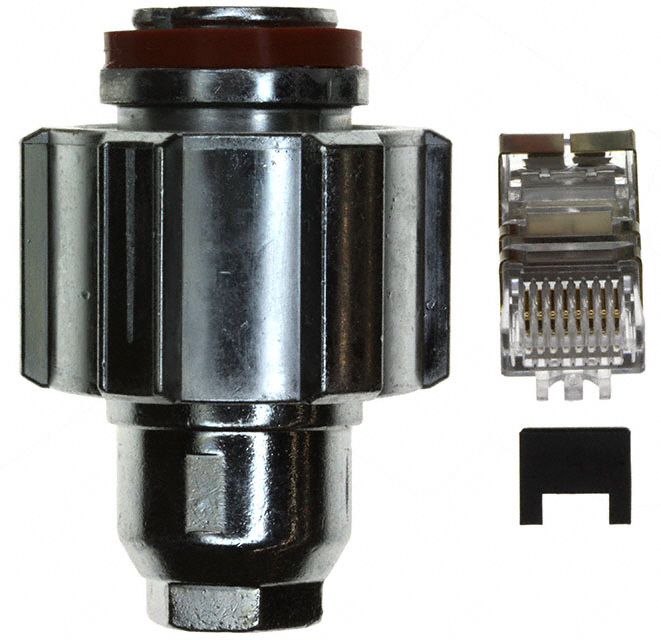

The TE Connectivity AMP Connectors 2008614-1 is a shielded modular connector plug designed for 8-position 8-contact (8p8c) RJ45 Ethernet applications. This connector features IDC (Insulation Displacement Contact) termination, circular bayonet coupling, and Cat5e rating with IP67 ingress protection. The part is classified as obsolete, necessitating identification of active equivalent components that maintain functional and electrical compatibility for continued system support and new installations.

Substiute Parts

2008614-1

TE Connectivity AMP ConnectorsIn Stock: 10612008614-1 Datasheet

Current PartRFQ

2362760-1

TE Connectivity AMP ConnectorsIn Stock: 10502362760-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete TE Connectivity 2008614-1 is based on electrical and mechanical parameter alignment within the modular connector category. The substitute part 2362760-1 qualifies as a direct equivalent based on the following critical parameters:

Matching Parameters:

• Connector type: Plug configuration
• Contact count and arrangement: 8p8c (RJ45, Ethernet)
• Termination technology: IDC
• Shielding configuration: Shielded
• Performance rating: Cat5e
• Ingress protection level: IP67
• Coupling mechanism: Circular bayonet
• Contact material composition: Phosphor bronze
• Contact finish: Gold plating
• Shield material: Copper alloy
• Physical length: Equivalent (58.90mm vs. 59.0mm)

The substitute part 2362760-1 maintains functional equivalence while offering active product status and improved availability. Both components support round cable termination with IDC methodology, ensuring compatibility with existing installation practices and equipment interfaces.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 2362760-1 serves as the direct substitute for the obsolete 2008614-1 based on the following engineering criteria:

Product Status Alignment: The substitute part maintains active product status with TE Connectivity, ensuring continued availability, manufacturing support, and supply chain stability. The main part's obsolete classification creates long-term sourcing risk.

Compliance and Certification: Both components maintain equivalent regulatory compliance. The substitute part carries RoHS compliance certification and REACH affected status, meeting current environmental and safety standards. Both components share identical ECCN (EAR99) and HTSUS (8536.69.8000) classifications.

Functional Equivalence: The substitute part preserves all critical electrical and mechanical parameters: 8p8c RJ45 Ethernet configuration, Cat5e performance rating, IP67 ingress protection, IDC termination, shielded design, and circular bayonet coupling. Physical dimensions remain equivalent (59.0mm vs. 58.90mm).

Enhanced Specifications: The substitute part provides documented electrical ratings (1.2 A current, 100V voltage) and specified contact finish thickness (50.0µin), offering improved technical documentation. The polycarbonate housing material and support for both solid and stranded wire types provide expanded application flexibility.

Moisture Sensitivity: Both components maintain MSL 1 (Unlimited) rating, indicating no moisture sensitivity constraints during storage or handling.

Frequently Asked Questions (FAQ)

Q: Can the 2362760-1 directly replace the 2008614-1 in existing installations?

A: Yes. Both components share identical connector type, contact configuration (8p8c RJ45), termination method (IDC), shielding, Cat5e rating, IP67 protection, and coupling mechanism. Physical dimensions are equivalent (59.0mm). The substitute part supports both solid and stranded wire types, providing equal or greater compatibility.

Q: What is the primary reason for substitution?

A: The 2008614-1 is classified as obsolete. The 2362760-1 is an active product with ongoing manufacturing support, ensuring reliable long-term availability and supply chain continuity.

Q: Are there compliance differences between the two parts?

A: Both components meet current regulatory requirements. The substitute part carries RoHS compliance and REACH affected status. Both share identical ECCN and HTSUS classifications. The main part's ROHS3 compliance and the substitute's RoHS compliance are functionally equivalent for current applications.

Q: Does the substitute part support the same cable types?

A: The substitute part 2362760-1 supports round cable with both solid and stranded wires, providing equal or greater compatibility than the main part, which specifies stranded wires only.

Q: Are the electrical ratings specified for both parts?

A: The substitute part provides documented electrical ratings (1.2 A current, 100V voltage) and contact finish thickness (50.0µin). The main part does not specify these parameters. Both components maintain equivalent functional performance for Cat5e Ethernet applications.

Q: What is the inventory status for each part?

A: The main part 2008614-1 has 971 pieces in stock. The substitute part 2362760-1 has 995 pieces in stock. Both are available as new original components.

Q: Are there packaging differences?

A: The substitute part 2362760-1 is supplied in bulk packaging. The main part packaging is not specified. This difference does not affect functional compatibility.

Q: Do both parts maintain the same moisture sensitivity level?

A: Yes. Both components carry MSL 1 (Unlimited) rating, indicating no moisture sensitivity constraints during storage, handling, or installation.
