Equivalent & Substitute Parts for 1SM3-T Snap Action Switch

Part Overview

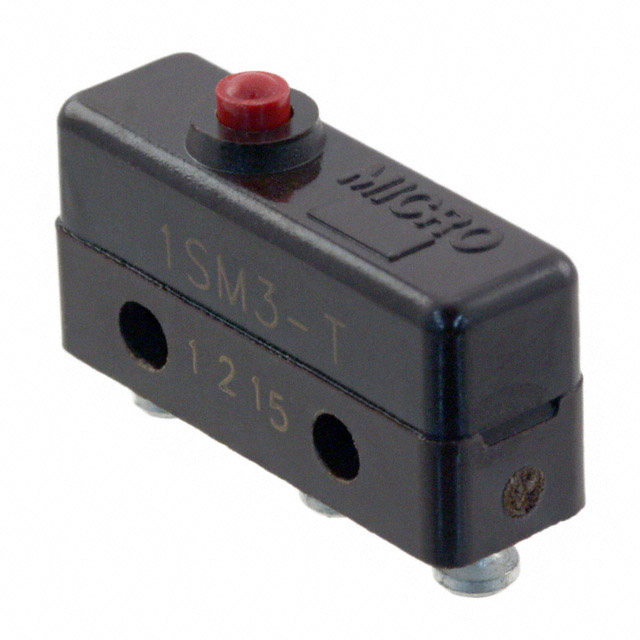

The 1SM3-T is a snap action switch manufactured by Honeywell Sensing and Productivity Solutions, classified as an SPDT (Single Pole Double Throw) chassis mount switch with a 5A/250V AC rating. This component is currently in active production status with 1006 units in stock. The switch features a round pin plunger actuator and solder turret termination, designed for applications requiring reliable on-momentary switching action across industrial and commercial equipment.

Substitute parts are identified for applications where the original 1SM3-T becomes unavailable, where alternative electrical ratings are acceptable within system design parameters, or where enhanced environmental protection is required. Substitution must be validated against specific circuit requirements, voltage ratings, and mechanical mounting constraints.

Substiute Parts

1SM3-T

Honeywell Sensing and Productivity SolutionsIn Stock: 10391SM3-T Datasheet

Current PartRFQ

DB1C-A1AA

Hirose Electric Co LtdIn Stock: 919DB1C-A1AA Datasheet

SimilarRFQ

DB2CA1AA

ZF ElectronicsIn Stock: 20959DB2CA1AA Datasheet

SimilarRFQ

DC1C-A1AA

ZF ElectronicsIn Stock: 21897DC1C-A1AA Datasheet

SimilarRFQ

DC2C-A1AA

ZF ElectronicsIn Stock: 1173DC2C-A1AA Datasheet

SimilarRFQ

DC3C-A1AA

Hirose Electric Co LtdIn Stock: 1171DC3C-A1AA Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution logic for the 1SM3-T is based on the following critical parameters that must align with the original component specifications:

Primary Compatibility Criteria:

• Circuit configuration must remain SPDT
• Switch function must remain On-Momentary
• Actuator type must be Round Pin Plunger
• Mounting type must be Chassis Mount
• Operating position must be 0.330" (8.4mm)
• Differential travel must be 0.004" (0.1mm)

Electrical Rating Flexibility: Substitutes are acceptable when current and voltage ratings meet or exceed the original 1SM3-T specifications (5A AC/250V AC, 5A DC/30V DC). Lower ratings are not acceptable. Higher ratings provide design margin and are permissible.

Environmental and Compliance Considerations: All substitute parts must maintain MSL 1 rating and EAR99 ECCN classification. RoHS compliance status must be verified for end-application requirements. REACH status is noted where applicable.

Identified Substitute Categories:

Category A - Active Production, Enhanced Specifications:

• DC1C-A1AA (ZF Electronics): 5A AC/125V AC, 1A DC/48V DC, IP67 protection
• DC2C-A1AA (ZF Electronics): 10A AC/125V AC, IP67 protection

Category B - Active Production, Standard Specifications:

• DB2CA1AA (ZF Electronics): 10A AC/125V AC, IP50 protection

Category C - Obsolete Status:

• DB1C-A1AA (Hirose Electric Co Ltd): Obsolete
• DC3C-A1AA (Hirose Electric Co Ltd): Obsolete

Parameter Comparison

Engineering Selection Recommendations

For Direct Replacement (Active Production Status):

DC1C-A1AA is the preferred substitute when the 1SM3-T is unavailable. This part maintains SPDT circuit configuration, on-momentary function, round pin plunger actuator, and 0.330" operating position. The DC1C-A1AA provides 5A AC/125V AC and 1A DC/48V DC ratings, which accommodate applications operating at or below these electrical levels. The enhanced IP67 ingress protection rating provides superior environmental sealing compared to the original part. Mechanical life of 1,000,000 cycles exceeds the 1SM3-T specification. ROHS3 compliance and MSL 1 rating maintain regulatory alignment.

DC2C-A1AA is acceptable for applications requiring 10A AC current capacity at 125V AC. This part shares identical mechanical specifications with DC1C-A1AA but provides doubled current capacity. IP67 protection and 1,000,000 cycle mechanical life apply. Selection of DC2C-A1AA is appropriate when circuit design permits the higher operating force (340 gf versus 141 gf on the original part).

DB2CA1AA is acceptable for applications requiring 10A AC current capacity at 125V AC where IP50 dust protection is sufficient. This part provides 10,000,000 cycle mechanical life, exceeding both the original 1SM3-T and other ZF Electronics substitutes. Operating force is 250 gf. Termination style is solder lug rather than solder turret, requiring PCB layout verification.

For Obsolete Part Replacement (Not Recommended for New Designs):

DB1C-A1AA and DC3C-A1AA are classified as obsolete products and are not recommended for new design implementations. These parts may be considered only for legacy equipment repair where original specifications cannot be modified and no active production alternatives are available. Inventory availability is limited (877 and 1098 units respectively), and future supply cannot be assured.

Termination Style Consideration:

The 1SM3-T uses solder turret termination. All active production substitutes (DB2CA1AA, DC1C-A1AA, DC2C-A1AA) use solder lug termination. PCB design must accommodate this difference in connection geometry and current distribution characteristics.

Frequently Asked Questions (FAQ)

Q: Can DC1C-A1AA replace 1SM3-T in all applications?

A: DC1C-A1AA is mechanically and functionally compatible with 1SM3-T for applications operating at 5A AC/125V AC or lower. Applications requiring 250V AC operation cannot use DC1C-A1AA, as its maximum AC voltage rating is 125V. DC voltage applications are limited to 48V DC on DC1C-A1AA versus 30V DC on the original part, which provides design margin. Termination style differs (solder lug versus solder turret), requiring PCB layout modification.

Q: What is the difference between DB2CA1AA and DC1C-A1AA?

A: Both parts are SPDT on-momentary switches with 0.330" operating position and round pin plunger actuators. DB2CA1AA provides 10A AC/125V AC current capacity with IP50 protection and 10,000,000 cycle mechanical life. DC1C-A1AA provides 5A AC/125V AC and 1A DC/48V DC with IP67 protection and 1,000,000 cycle mechanical life. DB2CA1AA requires higher operating force (250 gf). DC1C-A1AA offers superior environmental sealing. Selection depends on current requirements and environmental exposure.

Q: Why are DB1C-A1AA and DC3C-A1AA listed if they are obsolete?

A: Obsolete parts are documented for reference in legacy equipment repair scenarios where original 1SM3-T components are unavailable and design modification is not feasible. These parts should not be selected for new designs. Active production alternatives (DC1C-A1AA, DC2C-A1AA, DB2CA1AA) are preferred for all new applications.

Q: Does the higher operating force on substitute parts affect compatibility?

A: Operating force differences (141 gf on 1SM3-T versus 204-340 gf on substitutes) affect actuator effort required for switch activation. Substitutes with higher operating force require greater mechanical input. This is acceptable in applications where actuator mechanism can provide the necessary force. Applications with force-limited actuators must verify that substitute operating force does not exceed available actuation force.

Q: Are all substitutes RoHS compliant?

A: The 1SM3-T is RoHS Compliant. Active production substitutes DB2CA1AA, DC1C-A1AA, and DC2C-A1AA are ROHS3 Compliant, which represents an enhanced RoHS standard. Obsolete parts DB1C-A1AA and DC3C-A1AA do not specify RoHS status. For applications requiring RoHS compliance verification, only active production parts should be selected.

Q: What is the impact of solder lug versus solder turret termination?

A: Solder turret termination (1SM3-T) uses a cylindrical post for solder connection. Solder lug termination (all active substitutes) uses a flat tab for solder connection. PCB pad geometry, trace routing, and current distribution characteristics differ between these termination styles. PCB design must be modified to accommodate solder lug termination. Electrical performance is equivalent when properly soldered.

Q: Can I use DC2C-A1AA in place of DC1C-A1AA?

A: DC2C-A1AA can replace DC1C-A1AA in applications where 10A AC current capacity is acceptable. Both parts share identical mechanical specifications, operating position, and IP67 protection. DC2C-A1AA has higher operating force (340 gf versus 204 gf), which may require actuator mechanism verification. DC2C-A1AA does not specify DC voltage rating, limiting its use in DC applications where DC1C-A1AA (48V DC rated) is preferred.

Q: What inventory levels are available for substitute parts?

A: DC1C-A1AA has 21,871 units in stock. DC2C-A1AA has 1,150 units in stock. DB2CA1AA has 20,904 units in stock. DB1C-A1AA (obsolete) has 877 units in stock. DC3C-A1AA (obsolete) has 1,098 units in stock. For high-volume applications, DC1C-A1AA and DB2CA1AA offer the highest inventory availability.
