Equivalent & Substitute Parts for Honeywell 1LS1-L Snap Action Switch

Part Overview

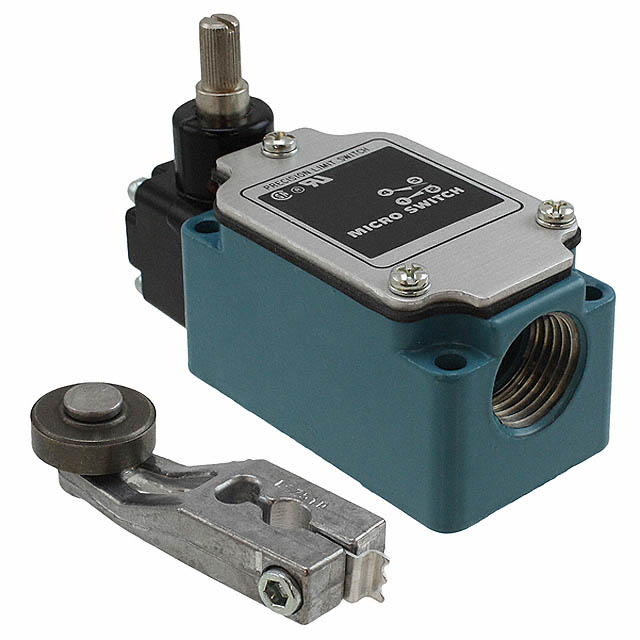

The Honeywell 1LS1-L is an SPDT snap action switch rated for 10A AC at 120V, featuring a side rotary roller actuator with chassis mount configuration and screw terminal termination. This switch is designed for applications requiring momentary on operation with IP67 ingress protection. The part is currently active in production with RoHS compliance certification.

Substitute parts are identified to provide alternative sourcing options when the primary part is unavailable or when design flexibility permits component interchange based on electrical and mechanical compatibility.

Substiute Parts

1LS1-L

Honeywell Sensing and Productivity SolutionsIn Stock: 11741LS1-L Datasheet

Current PartRFQ

D4B-2511N

Omron Automation and SafetyIn Stock: 768D4B-2511N Datasheet

SimilarRFQ

D4B-4111N

Omron Automation and SafetyIn Stock: 1113D4B-4111N Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 1LS1-L are identified based on the following critical parameters that determine functional compatibility:

Primary Compatibility Criteria:

• Circuit configuration (SPDT DB/DM topology)
• AC voltage rating (120V minimum)
• AC current rating (10A minimum)
• Actuator type (side rotary roller)
• Mounting configuration (chassis mount)
• Termination style (screw terminal)
• Ingress protection rating (IP67 minimum)

Substitute Part D4B-4111N (Omron Automation and Safety) maintains identical circuit configuration (SPDT DB/DM), matching AC voltage and current ratings, identical actuator type, mounting, and termination specifications. This part provides direct functional equivalence for the primary application parameters.

Substitute Part D4B-2511N (Omron Automation and Safety) differs in circuit configuration (DPST-NO/NC versus SPDT DB/DM). This part is listed as a substitute option but operates with a different circuit topology and is suitable only for applications where DPST functionality is acceptable.

Parameter Comparison

Engineering Selection Recommendations

D4B-4111N (Omron) - Primary Substitute:

The D4B-4111N provides the closest functional equivalence to the 1LS1-L. Both parts share identical SPDT circuit topology, matching AC voltage and current ratings, and equivalent mechanical configurations. The D4B-4111N is ROHS3 compliant and maintains active production status. The extended operating temperature range (-40°C to 80°C versus -29°C to 71°C) and higher mechanical life rating (30,000,000 cycles) provide additional operational margin. DC voltage rating is reduced to 30V, which must be evaluated against application requirements. Operating force and release force values differ significantly, requiring mechanical compatibility assessment in the specific application.

D4B-2511N (Omron) - Alternative Substitute:

The D4B-2511N is suitable only for applications where DPST-NO/NC circuit functionality is acceptable as an alternative to SPDT topology. This part shares identical AC voltage and current ratings with the primary part and maintains equivalent mechanical and environmental specifications. The DPST configuration provides different switching logic and contact arrangement, limiting its use to applications where this circuit type is functionally compatible. ROHS3 compliance and active production status are confirmed.

Both substitute parts are available in bulk packaging and maintain RoHS compliance certification required for modern electronic equipment manufacturing.

Frequently Asked Questions (FAQ)

Q: Can D4B-4111N directly replace 1LS1-L in all applications?

A: D4B-4111N shares identical circuit configuration (SPDT), AC ratings (10A, 120V), actuator type, mounting, and termination specifications. However, DC voltage rating is reduced from 125V to 30V, and operating/release forces differ. Applications using DC voltages above 30V or requiring specific force characteristics must be evaluated individually.

Q: What is the primary difference between D4B-4111N and D4B-2511N?

A: D4B-4111N maintains SPDT circuit topology matching the 1LS1-L, while D4B-2511N uses DPST-NO/NC configuration. SPDT provides one normally-open and one normally-closed contact pair, whereas DPST provides two independent contact pairs. Circuit selection depends on application switching requirements.

Q: Are all three parts RoHS compliant?

A: Yes. The 1LS1-L is RoHS Compliant. Both Omron substitutes (D4B-4111N and D4B-2511N) are ROHS3 Compliant, meeting current RoHS directive requirements.

Q: What mechanical differences exist between these parts?

A: Operating force is 51gfm for 1LS1-L versus 960gf for both Omron parts. Release force is 8.640gfm for 1LS1-L versus 150gf for Omron parts. Operating position and pretravel are nearly identical (20° versus 21°). Overtravel is 30° for 1LS1-L versus 50° for Omron parts. These differences affect actuator feel and mechanical response characteristics.

Q: Are these parts available in the same packaging?

A: All three parts are supplied in bulk packaging. Inventory availability differs: 1LS1-L has 1112 pieces in stock, D4B-4111N has 1027 pieces, and D4B-2511N has 679 pieces.

Q: What is the temperature operating range for each part?

A: 1LS1-L operates from -29°C to 71°C. Both Omron substitutes (D4B-4111N and D4B-2511N) operate from -40°C to 80°C, providing extended low and high temperature capability.

Q: Do these parts have specified electrical and mechanical life ratings?

A: The 1LS1-L does not specify electrical or mechanical life values. D4B-4111N specifies 500,000 electrical cycles and 30,000,000 mechanical cycles. D4B-2511N specifies 500,000 electrical cycles and 10,000,000 mechanical cycles. These ratings should be compared against application duty cycle requirements.
