1EGG8-2 Equivalent & Substitute Parts

Part Overview

The 1EGG8-2 is an AC power entry connector module manufactured by TE Connectivity Corcom Filters. This component functions as a filtered power entry receptacle with IEC 320-C14 connector style, designed for panel-mounted applications in commercial equipment. The unit integrates EMI/RFI filtering with a twin-fused holder and accommodates wire lead termination. The product maintains Active status and is RoHS3 compliant with CSA, UL, and VDE approvals. Equivalent substitute parts are identified based on matching electrical specifications, mechanical compatibility, and filtering characteristics to support procurement flexibility and supply chain continuity.

Substiute Parts

1EGG8-2

TE Connectivity Corcom FiltersIn Stock: 9871EGG8-2 Datasheet

Current PartRFQ

FN9260-1-06

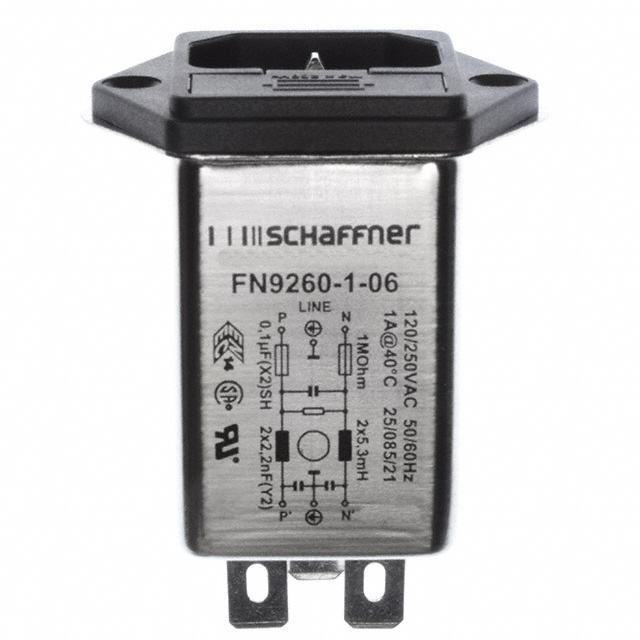

Schaffner EMC Inc.In Stock: 1288FN9260-1-06 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 1EGG8-2 is determined by the following critical parameters:

Electrical Compatibility:

• Connector style must be IEC 320-C14
• Connector type must be Receptacle, Male Blades - Module configuration
• Filter current rating must be 1A
• Filter type must be Filtered (EMI, RFI) - Commercial grade

Mechanical Compatibility:

• Number of positions must be 3
• Mounting type must be Panel Mount, Flange
• Fuse holder configuration must be Twin Fused
• Panel cutout dimensions must accommodate the specified rectangular opening

Regulatory & Compliance:

• RoHS3 compliance required
• Active product status required

The substitute part FN9260-1-06 from Schaffner EMC Inc. satisfies all critical electrical and mechanical parameters. Variations in termination type (Wire Leads versus Quick Connect), panel cutout tolerances (±0.04mm), and approval agency certifications do not preclude functional equivalence within the specified application parameters.

Parameter Comparison

Engineering Selection Recommendations

Both the 1EGG8-2 and FN9260-1-06 are Active products with ROHS3 compliance and equivalent electrical/mechanical specifications for IEC 320-C14 filtered power entry applications. Selection between these parts is based on termination requirements and approval agency certifications specific to the end application.

1EGG8-2 Selection Criteria:

• Applications requiring wire lead termination for direct soldering or crimping
• Systems requiring CSA, UL, and VDE certifications
• Existing designs with wire lead integration

FN9260-1-06 Selection Criteria:

• Applications requiring quick-connect termination for rapid assembly
• Systems requiring CQC, CSA, ENEC, and UL certifications
• Designs prioritizing modular connector interfaces
• Applications requiring IP40 ingress protection rating

Both parts accommodate twin-fused configurations and deliver 1A filtered current at 120/250VAC with commercial-grade EMI/RFI filtering. Panel cutout dimensions are compatible within standard manufacturing tolerances.

Frequently Asked Questions (FAQ)

Q: Can FN9260-1-06 directly replace 1EGG8-2 in existing designs?

A: Functional replacement is supported for electrical and mechanical specifications. The primary difference is termination type: 1EGG8-2 uses wire leads while FN9260-1-06 uses quick-connect terminals. Panel cutout dimensions are compatible within tolerance. Termination compatibility with existing wiring harnesses must be verified.

Q: What are the key electrical parameters that define substitution eligibility?

A: Connector style (IEC 320-C14), connector type (Receptacle, Male Blades - Module), filter current rating (1A), and filter type (Filtered EMI/RFI - Commercial) are the critical electrical parameters. Both parts match these specifications.

Q: Are there differences in approval certifications between these parts?

A: Yes. The 1EGG8-2 carries CSA, UL, and VDE approvals. The FN9260-1-06 carries CQC, CSA, ENEC, and UL approvals. Selection depends on regional regulatory requirements for the end application.

Q: What is the significance of the panel cutout dimension difference?

A: The 1EGG8-2 specifies 28.96mm x 33.02mm while FN9260-1-06 specifies 29.00mm x 33.00mm. This 0.04mm difference falls within standard panel cutout tolerances and does not prevent mechanical compatibility.

Q: Do both parts accommodate fuses?

A: Yes. Both the 1EGG8-2 and FN9260-1-06 accommodate fuses with twin-fused holder configurations. Fuses are not included with either part and must be sourced separately.

Q: What is the difference between wire lead and quick-connect termination?

A: Wire leads require direct connection through soldering or crimping to circuit board traces or harnesses. Quick-connect terminals (0.250" / 6.3mm) provide push-on blade connections for faster assembly and disassembly. Application requirements determine which termination type is appropriate.

Q: Are both parts RoHS3 compliant?

A: Yes. Both the 1EGG8-2 and FN9260-1-06 are ROHS3 compliant, meeting current environmental and hazardous substance restrictions.

Q: Does FN9260-1-06 provide ingress protection that 1EGG8-2 does not?

A: The FN9260-1-06 specifies IP40 ingress protection rating. The 1EGG8-2 does not provide an ingress protection specification. Applications requiring environmental sealing should specify FN9260-1-06.
