Equivalent & Substitute Parts for TE Connectivity Corcom Filters 1EEAP

Part Overview

The TE Connectivity Corcom Filters 1EEAP is a power entry connector receptacle designed for IEC 320-C14 applications. This component functions as a filtered AC power inlet with male blades, panel-mounted configuration, and through-hole solder termination. The 1EEAP is classified as obsolete, necessitating identification of active equivalent and substitute parts to maintain design continuity and ensure ongoing component availability for new production and field service applications.

Substiute Parts

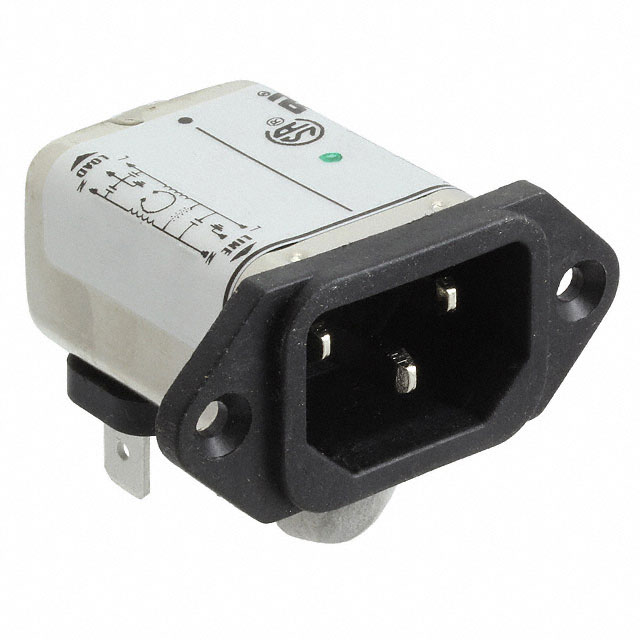

1EEAP

TE Connectivity Corcom FiltersIn Stock: 7771EEAP Datasheet

Current PartRFQ

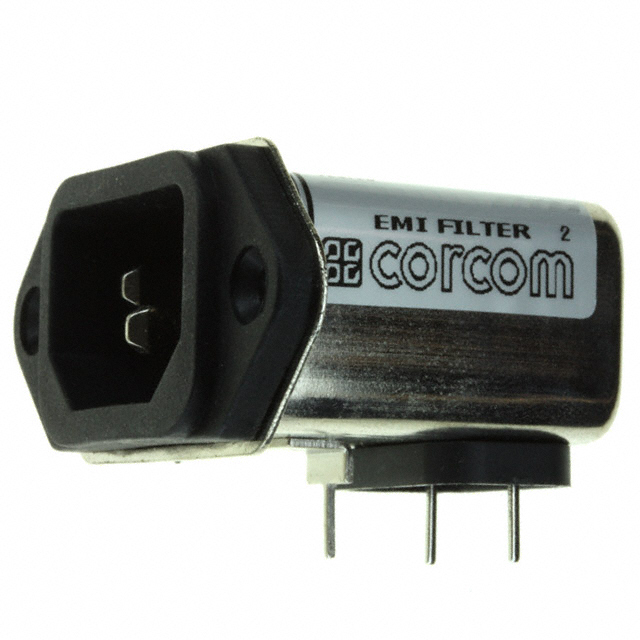

6609006-3

TE Connectivity Corcom FiltersIn Stock: 9886609006-3 Datasheet

MFR RecommendedRFQ

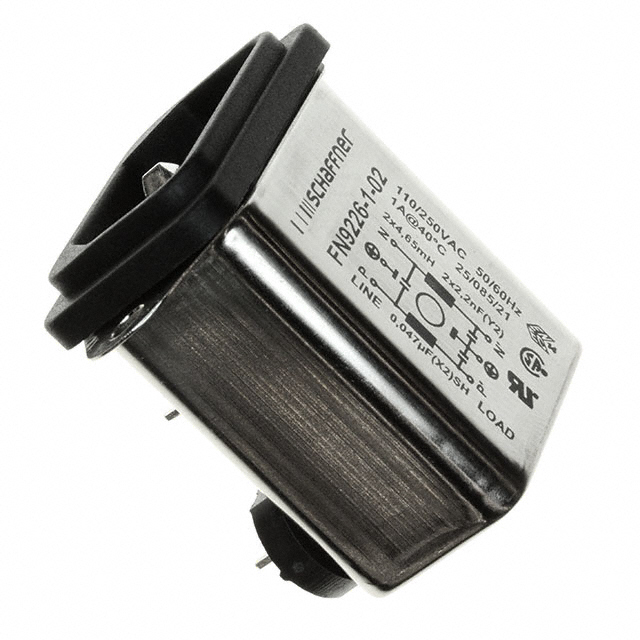

FN9226-1-02

Schaffner EMC Inc.In Stock: 1359FN9226-1-02 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete 1EEAP is determined by strict equivalence across the following critical parameters:

Mandatory Equivalence Parameters:

• Connector Style: IEC 320-C14
• Connector Type: Receptacle, Male Blades
• Number of Positions: 3
• Filter Type: Filtered (EMI, RFI) - Commercial
• Current Rating - Filter: 1A
• Mounting Type: Panel Mount, Flange; Through Hole, Right Angle
• Termination: Solder
• Approval Agency: CSA, UL, VDE (minimum)
• RoHS Status: ROHS3 Compliant

Compatibility Considerations:

• Panel cutout dimensions and panel thickness tolerances determine mechanical fit
• Voltage and current ratings must meet or exceed the original specification
• Filter performance characteristics must maintain EMI/RFI suppression levels

Two substitute parts meet these criteria with varying degrees of direct equivalence. The TE Connectivity Corcom Filters 6609006-3 provides direct electrical and mechanical compatibility. The Schaffner EMC Inc. FN9226-1-02 provides functional equivalence with documented mechanical and environmental differences.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: TE Connectivity Corcom Filters 6609006-3

The 6609006-3 is the manufacturer-recommended substitute for the obsolete 1EEAP. This part maintains identical electrical specifications (1A current rating, 120/250VAC voltage rating) and mechanical compatibility (panel cutout dimensions and thickness tolerances). Both components are manufactured by TE Connectivity Corcom Filters and carry equivalent regulatory approvals (CSA, UL, VDE). The 6609006-3 is classified as active product status with ROHS3 compliance and REACH Unaffected designation, ensuring long-term availability and regulatory continuity.

Secondary Substitute: Schaffner EMC Inc. FN9226-1-02

The FN9226-1-02 provides functional equivalence as a filtered IEC 320-C14 power entry connector receptacle with 1A filter current rating and identical connector configuration. This part carries expanded regulatory approvals (CSA, ENEC, SEMKO, UL) and includes IP40 ingress protection with UL94 V-2 flammability rating. However, the FN9226-1-02 requires panel cutout dimensions of 34.40mm x 22.60mm and accommodates panel thickness of 0.224" (5.70mm), which differs from the original 1EEAP specifications. This part is suitable for new designs or retrofit applications where panel modifications are acceptable.

Selection between these substitutes depends on design constraints: the 6609006-3 for direct mechanical and electrical replacement, or the FN9226-1-02 for applications requiring enhanced environmental protection and expanded certifications.

Frequently Asked Questions (FAQ)

Q: Can the 6609006-3 be used as a direct replacement for the 1EEAP without panel modification?

A: Yes. The 6609006-3 maintains identical panel cutout dimensions (30.48mm x 22.86mm) and panel thickness tolerance (0.031" ~ 0.068"), enabling direct mechanical substitution without panel rework.

Q: What are the key differences between the 6609006-3 and FN9226-1-02?

A: The 6609006-3 and FN9226-1-02 differ in panel cutout dimensions, panel thickness accommodation, and regulatory certifications. The 6609006-3 matches the original 1EEAP panel specifications exactly. The FN9226-1-02 requires larger panel cutout dimensions (34.40mm x 22.60mm) and thicker panel accommodation (0.224"), necessitating panel modification. The FN9226-1-02 includes IP40 ingress protection and UL94 V-2 flammability rating not specified in the original part.

Q: Are the electrical specifications identical across all three parts?

A: The 1EEAP and 6609006-3 share identical electrical specifications: 1A appliance inlet current rating, 120/250VAC voltage rating, and 1A filter current rating. The FN9226-1-02 does not specify appliance inlet current and voltage ratings in available documentation, though it maintains 1A filter current rating and IEC 320-C14 connector compatibility.

Q: What is the significance of product status (Obsolete vs. Active)?

A: The 1EEAP is classified as obsolete, indicating discontinued manufacturing and limited future availability. Both substitute parts (6609006-3 and FN9226-1-02) are active products with ongoing production, ensuring component availability for current and future applications.

Q: Do all three parts carry the same regulatory approvals?

A: The 1EEAP and 6609006-3 carry identical approvals (CSA, UL, VDE). The FN9226-1-02 carries expanded approvals (CSA, ENEC, SEMKO, UL), providing additional regulatory recognition in European markets.

Q: What packaging formats are available for these parts?

A: The 1EEAP is supplied in bulk packaging. The 6609006-3 is supplied in bulk packaging. The FN9226-1-02 is supplied in tray packaging.

Q: Are all parts RoHS3 compliant?

A: Yes. The 1EEAP, 6609006-3, and FN9226-1-02 are all ROHS3 compliant, meeting current environmental and hazardous substance restrictions.
