TE Connectivity Corcom Filters 1EBH1 Power Entry Connector Receptacle

Part Overview

The TE Connectivity Corcom Filters 1EBH1 is a Power Entry Connector Receptacle with IEC 320-C14 male blades, designed for panel mount applications with integrated EMI/RFI filtering. This component is classified as obsolete, necessitating identification of active equivalent and substitute parts to maintain design continuity and ensure ongoing component availability for new production and field service applications.

Substiute Parts

1EBH1

TE Connectivity Corcom FiltersIn Stock: 11701EBH1 Datasheet

Current PartRFQ

6609008-1

TE Connectivity Corcom FiltersIn Stock: 11196609008-1 Datasheet

MFR RecommendedRFQ

B84771M0001A000

EPCOS - TDK ElectronicsIn Stock: 1054B84771M0001A000 Datasheet

SimilarRFQ

FN9222B-1-06

Schaffner EMC Inc.In Stock: 1571FN9222B-1-06 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 1EBH1 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Connector Style: IEC 320-C14
• Connector Type: Receptacle, Male Blades
• Current Rating - Filter: 1A
• Number of Positions: 3
• Mounting Type: Panel Mount, Flange
• Termination: Quick Connect - 0.250" (6.3mm)
• Filter Type: Filtered (EMI, RFI) - Commercial or Commercial/Medical

Compliance Parameters:

• RoHS3 Compliant status
• Approval agencies including UL and CSA

All identified substitute parts meet these mandatory electrical and mechanical parameters. Substitute parts are classified as either MFR Recommended (active status replacement) or Similar (functionally equivalent with minor specification variations).

Parameter Comparison

Engineering Selection Recommendations

Primary Recommendation: TE Connectivity Corcom Filters 6609008-1

The 6609008-1 is the MFR Recommended substitute and represents the direct active replacement for the obsolete 1EBH1. Both components are manufactured by TE Connectivity Corcom Filters and share identical electrical specifications, mechanical configuration, and approval certifications (CSA, UL, VDE). The 6609008-1 maintains active product status with 1015 units in stock, ensuring long-term availability and supply chain continuity.

Secondary Recommendation: EPCOS - TDK Electronics B84771M0001A000

The B84771M0001A000 provides functional equivalence with expanded voltage rating (250VAC/DC versus 120/250VAC) and enhanced ingress protection (IP40). This component includes medical-grade filtering capability and broader approval agency coverage (CSA, cUL, ENEC, UL). Selection of this substitute is appropriate for applications requiring higher environmental protection or medical device compliance.

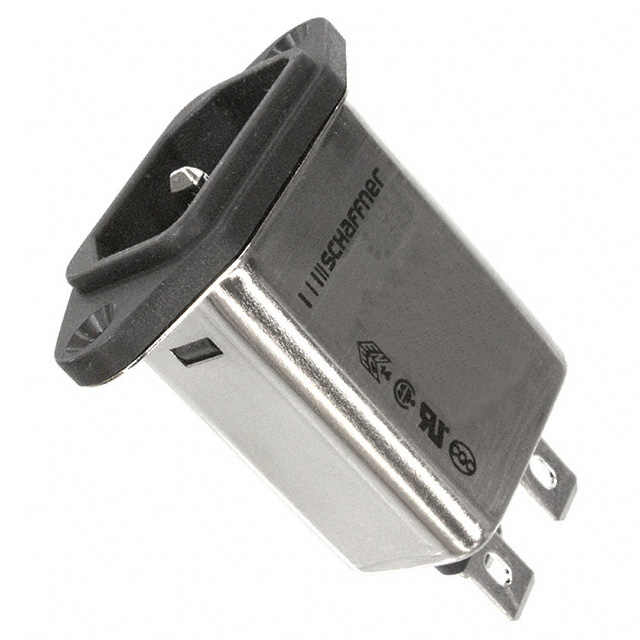

Tertiary Recommendation: Schaffner EMC Inc. FN9222B-1-06

The FN9222B-1-06 offers functional equivalence with integrated bleed resistor functionality and medical-grade filtering. This component includes IP40 ingress protection and expanded approval agency certifications (CQC, CSA, ENEC, UL). The FN9222B-1-06 is supplied in tray packaging and is suitable for applications requiring enhanced EMI/RFI suppression or medical device applications. Current appliance inlet specifications are not provided for this part.

All three substitute parts satisfy the mandatory electrical and mechanical parameters required for direct substitution in applications originally designed for the 1EBH1.

Frequently Asked Questions (FAQ)

Q: Can the 6609008-1 be used as a direct replacement for the 1EBH1?

A: Yes. The 6609008-1 is the MFR Recommended substitute with identical electrical specifications (1A current rating, 120/250VAC voltage rating), mechanical configuration (IEC 320-C14, panel mount flange, quick connect termination), and approval certifications (CSA, UL, VDE). Both components are ROHS3 compliant and provide filtered EMI/RFI protection for commercial applications.

Q: What are the key differences between the substitute parts?

A: The 6609008-1 maintains exact specification parity with the 1EBH1. The B84771M0001A000 provides expanded voltage rating (250VAC/DC) and IP40 ingress protection with medical-grade filtering. The FN9222B-1-06 includes a bleed resistor, IP40 ingress protection, and medical-grade filtering. All three parts maintain the same connector style, current rating, and termination type.

Q: Are all substitute parts ROHS3 compliant?

A: Yes. The 6609008-1, B84771M0001A000, and FN9222B-1-06 are all ROHS3 compliant, meeting environmental regulatory requirements equivalent to the original 1EBH1.

Q: What is the difference between bulk and tray packaging?

A: The 1EBH1, 6609008-1, and B84771M0001A000 are supplied in bulk packaging. The FN9222B-1-06 is supplied in tray packaging. Packaging selection depends on production volume requirements and handling procedures. Both packaging formats are suitable for automated assembly processes.

Q: Do all substitute parts have the same approval certifications?

A: The 6609008-1 shares identical certifications with the 1EBH1 (CSA, UL, VDE). The B84771M0001A000 includes expanded certifications (CSA, cUL, ENEC, UL). The FN9222B-1-06 includes CQC, CSA, ENEC, and UL certifications. All parts include UL and CSA approval, which are the primary certifications for AC power connectors in North American applications.

Q: Can the B84771M0001A000 be used in applications requiring 120VAC operation?

A: The B84771M0001A000 is rated for 250VAC/DC operation. While this rating encompasses 120VAC operation, applications originally specified for 120/250VAC operation should use the 6609008-1 for exact specification compliance.

Q: What is the significance of the bleed resistor in the FN9222B-1-06?

A: The bleed resistor in the FN9222B-1-06 provides additional circuit protection by discharging residual voltage. This feature is beneficial in medical device applications and high-reliability systems but is not present in the 1EBH1 or 6609008-1.

Q: Are all substitute parts suitable for medical device applications?

A: The 6609008-1 is rated for commercial applications only. The B84771M0001A000 and FN9222B-1-06 are rated for both commercial and medical applications. Selection depends on the intended application classification.
