TE Connectivity AMP Connectors 1986160-3 Terminal Block Plug: Equivalent & Substitute Parts

Part Overview

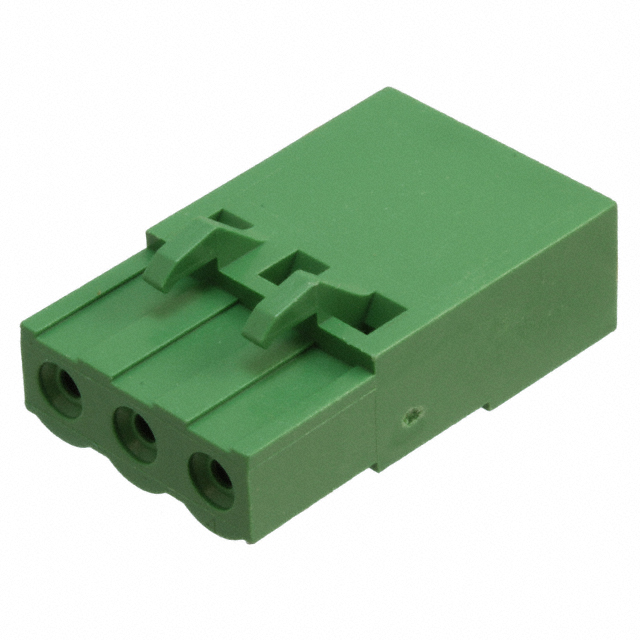

The TE Connectivity AMP Connectors 1986160-3 is a 3 Position Terminal Block Plug Housing designed for Female Sockets with 0.200" (5.08mm) pitch spacing and 180° free hanging (in-line) mounting configuration. This component features retention latches on the non-wire side and is constructed from polyester material with UL94 V-0 flammability rating.

The 1986160-3 carries an Obsolete product status. Identification of equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production and maintenance requirements for systems utilizing this terminal block connector.

Substiute Parts

1986160-3

TE Connectivity AMP ConnectorsIn Stock: 11361986160-3 Datasheet

Current PartRFQ

3-1986160-3

TE Connectivity AMP ConnectorsIn Stock: 9263-1986160-3 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 1986160-3 terminal block plug is determined by strict alignment of the following critical parameters:

Mandatory Matching Parameters:

• Number of Positions: 3
• Positions Per Level: 3
• Number of Levels: 1
• Pitch: 0.200" (5.08mm)
• Plug Wire Entry: 180°
• Mounting Type: Free Hanging (In-Line)
• Type: Plug Housing for Female Sockets
• Housing Material: Polyester
• Material Flammability Rating: UL94 V-0
• Insulation Height: 0.295" (7.50mm)
• Features: Retention Latches (Non-Wire Side)

The substitute part identified below maintains full electrical and mechanical compatibility with the original 1986160-3 specification. The primary distinction is product status transition from Obsolete to Active, ensuring continued availability and supply chain support.

Parameter Comparison

Engineering Selection Recommendations

The substitute part 3-1986160-3 is the manufacturer-recommended replacement for the obsolete 1986160-3 terminal block plug. Both components share identical electrical and mechanical specifications across all critical parameters including position count, pitch spacing, wire entry angle, mounting configuration, housing material, and flammability rating.

The transition from Obsolete to Active product status for the 3-1986160-3 provides assurance of continued manufacturing support, supply availability, and compliance with current regulatory standards. Both parts maintain ROHS3 compliance and MSL 1 (Unlimited) moisture sensitivity classification, supporting deployment in standard industrial and commercial applications.

The color difference (Green to Natural) and specified Crimp termination style for the substitute part represent manufacturing updates that do not affect functional compatibility or electrical performance in applications designed for the original 1986160-3 specification.

Frequently Asked Questions (FAQ)

Q: What makes the 3-1986160-3 a direct substitute for the 1986160-3?

A: The 3-1986160-3 maintains identical specifications across all critical electrical and mechanical parameters: 3-position configuration, 0.200" (5.08mm) pitch, 180° wire entry, free hanging in-line mounting, polyester housing with UL94 V-0 rating, and retention latches. These parameters define functional compatibility for terminal block plug housings.

Q: Why is the original 1986160-3 marked as Obsolete?

A: Product obsolescence indicates that the manufacturer has discontinued active production and support for this part number. The 3-1986160-3 represents the current active equivalent, ensuring ongoing availability and compliance with manufacturing standards.

Q: Are there differences between the 1986160-3 and 3-1986160-3 that affect compatibility?

A: The substitute part differs in color (Natural versus Green) and specifies Crimp termination style. These differences do not affect electrical or mechanical compatibility. Both parts are designed for identical socket configurations and mounting applications.

Q: Can the 3-1986160-3 be used as a direct replacement in existing designs?

A: The 3-1986160-3 is electrically and mechanically compatible with the 1986160-3 across all specified parameters. Design validation should confirm that color and termination style changes do not conflict with application requirements.

Q: What compliance certifications apply to both parts?

A: Both the 1986160-3 and 3-1986160-3 are ROHS3 compliant and carry MSL 1 (Unlimited) moisture sensitivity classification. Both meet UL94 V-0 flammability standards for polyester housing material.

Q: Is inventory availability a factor in selecting between these parts?

A: The 1986160-3 (Obsolete) has 1094 pieces in stock, while the 3-1986160-3 (Active) has 869 pieces available. Long-term supply continuity favors the active 3-1986160-3 part number despite current inventory levels.
