TE Connectivity AMP Connectors 1986160-2 Terminal Block Plug: Equivalent & Substitute Parts

Part Overview

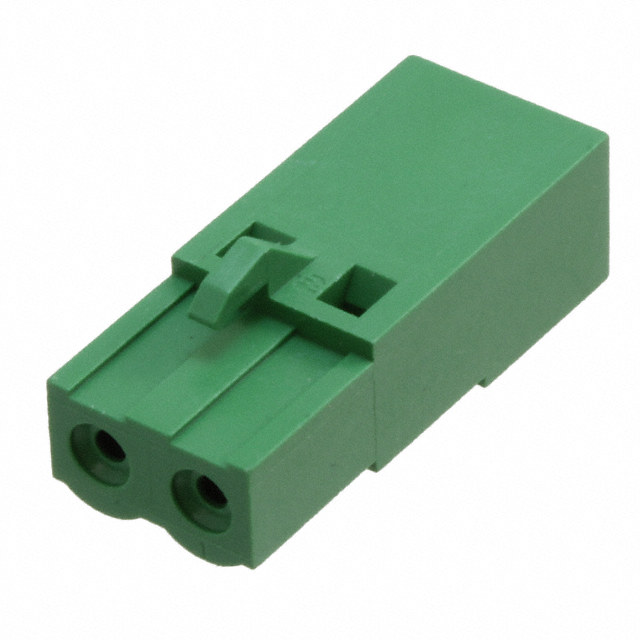

The TE Connectivity AMP Connectors 1986160-2 is a 2 Position Terminal Block Plug Housing designed for female sockets with 0.200" (5.08mm) pitch spacing and 180° free hanging (in-line) mounting configuration. This component is classified as obsolete, necessitating identification of active equivalent alternatives to maintain design continuity and ensure ongoing component availability for new production and field service applications.

Substiute Parts

1986160-2

TE Connectivity AMP ConnectorsIn Stock: 9401986160-2 Datasheet

Current PartRFQ

3-1986160-2

TE Connectivity AMP ConnectorsIn Stock: 9183-1986160-2 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete 1986160-2 terminal block plug is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Number of Positions: 2
• Positions Per Level: 2
• Number of Levels: 1
• Pitch: 0.200" (5.08mm)
• Plug Wire Entry: 180°
• Mounting Type: Free Hanging (In-Line)
• Type: Plug Housing for Female Sockets
• Housing Material: Polyester
• Material Flammability Rating: UL94 V-0
• Insulation Height: 0.295" (7.50mm)
• Features: Retention Latches (Non-Wire Side)

The substitute part 3-1986160-2 maintains full electrical and mechanical compatibility with the original 1986160-2 specification. The primary distinction is product status: the substitute is active and currently manufactured, whereas the original is obsolete. Both components share identical dimensional, material, and functional characteristics required for direct substitution in terminal block applications.

Parameter Comparison

Engineering Selection Recommendations

The 3-1986160-2 terminal block plug is the direct active equivalent for the obsolete 1986160-2. Selection of the substitute part is based on the following engineering criteria:

Product Status: The original 1986160-2 is obsolete and no longer manufactured. The 3-1986160-2 is active and currently in production, ensuring long-term component availability and supply chain continuity.

Electrical and Mechanical Compatibility: Both parts maintain identical specifications across all critical parameters including position count, pitch spacing, wire entry angle, mounting configuration, housing material, and flammability rating. These parameters determine functional equivalence in terminal block applications.

Compliance and Certifications: The original part is ROHS3 compliant with MSL 1 rating. The substitute part maintains the same UL94 V-0 flammability rating and polyester housing material, ensuring equivalent performance in regulated applications.

Physical Differences: The substitute part features a natural color housing compared to the green housing of the original. The substitute specifies crimp termination style, whereas the original does not specify termination style in the provided data. These differences do not affect functional compatibility in terminal block plug applications.

For new designs and production applications, the 3-1986160-2 is the appropriate selection. For field service and replacement applications where the original 1986160-2 is currently installed, the 3-1986160-2 provides direct functional substitution.

Frequently Asked Questions (FAQ)

Q: Can the 3-1986160-2 directly replace the 1986160-2 in existing applications?

A: Yes. The 3-1986160-2 maintains identical electrical and mechanical specifications across all critical parameters including position count, pitch spacing, wire entry orientation, mounting type, housing material, and flammability rating. Direct substitution is supported for terminal block applications.

Q: What is the primary reason for substitution?

A: The original 1986160-2 is obsolete and no longer manufactured. The 3-1986160-2 is the active equivalent currently produced by TE Connectivity AMP Connectors, ensuring ongoing component availability.

Q: Are there differences between the two parts?

A: The substitute part features a natural color housing compared to the green housing of the original. The substitute specifies crimp termination style. These differences do not affect functional compatibility in terminal block plug applications. Both parts share identical dimensional, material, and performance characteristics.

Q: What is the pitch specification for these terminal block plugs?

A: Both the 1986160-2 and 3-1986160-2 feature 0.200" (5.08mm) pitch spacing, which determines compatibility with corresponding female socket housings and contact arrangements.

Q: Are both parts RoHS compliant?

A: The original 1986160-2 is ROHS3 compliant. Compliance information for the substitute part is not specified in the provided data. Both parts feature UL94 V-0 polyester housing material.

Q: What mounting configuration do these parts support?

A: Both parts are configured for free hanging (in-line) mounting with 180° plug wire entry, suitable for applications requiring direct in-line terminal block connection without panel mounting.

Q: How many positions does this terminal block plug accommodate?

A: Both the 1986160-2 and 3-1986160-2 are 2 position terminal block plugs with 2 positions per level and 1 level, providing connection for two circuits.
