Phoenix Contact 1975626 Terminal Block Plug - Equivalent & Substitute Parts

Part Overview

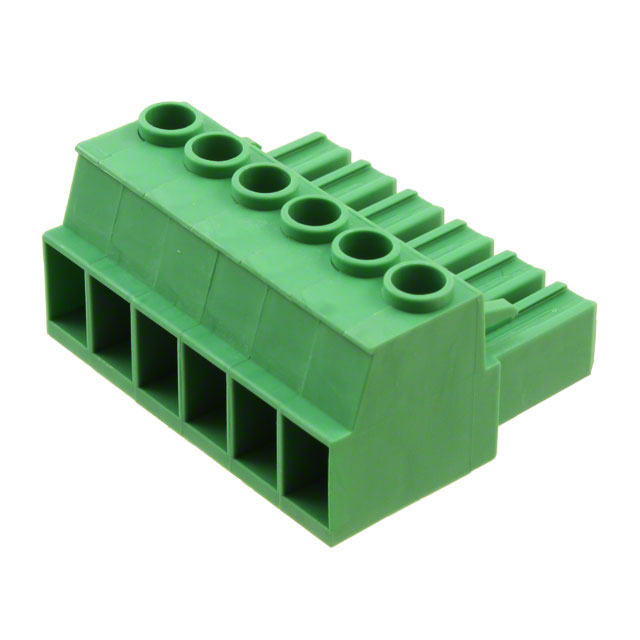

The Phoenix Contact 1975626 is a 6-position terminal block plug with female sockets, 0.300" (7.62mm) pitch, designed for 180° free-hanging in-line applications. This component features screw-type rising cage clamp termination and supports wire gauges from 8-24 AWG (0.2-10mm²). The part is classified as obsolete, making identification of active equivalent and substitute parts essential for ongoing procurement and system maintenance.

Substiute Parts

1975626

Phoenix ContactIn Stock: 8931975626 Datasheet

Current PartRFQ

1777765

Phoenix ContactIn Stock: 12441777765 Datasheet

DirectRFQ

EDZ960/6

On Shore Technology Inc.In Stock: 1084EDZ960/6 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1975626 is determined by the following critical parameters:

Primary Compatibility Criteria:

• 6-position configuration with 0.300" (7.62mm) pitch spacing
• Female socket plug type with 180° wire entry orientation
• Free-hanging in-line mounting configuration
• Screw-type termination mechanism
• Wire gauge compatibility within 8-24 AWG range
• Electrical ratings meeting or exceeding IEC 41A / 1 kV and UL 41A / 600V specifications
• Green housing color
• UL94 V-0 flammability rating
• M3 screw size

Identified Substitutes:

Direct Equivalent (Phoenix Contact 1777765): Maintains identical mechanical and electrical specifications with active product status. Differs only in torque specification range (0.5-0.8 Nm vs. 0.7-0.8 Nm) and insulation height (19.70mm vs. 22.90mm), both within acceptable tolerance for functional equivalence.

Similar Substitute (On Shore Technology EDZ960/6): Provides 6-position, 7.62mm pitch female socket plug configuration with free-hanging mounting. Operates within specified wire gauge range (12-28 AWG) and meets UL94 V-0 flammability requirement. Electrical ratings differ: UL voltage rated at 300V (lower than original 600V specification). Wire strip length is 6mm versus 10mm on original part.

Parameter Comparison

Engineering Selection Recommendations

Phoenix Contact 1777765 (Recommended Direct Replacement):

The 1777765 is the primary substitute for the obsolete 1975626. Both parts are manufactured by Phoenix Contact within the COMBICON PC series and maintain identical mechanical and electrical specifications. The 1777765 holds active product status with higher inventory availability (1229 pcs vs. 826 pcs). Compliance certifications are equivalent: both are RoHS-compliant and REACH-unaffected. The minor variance in screw torque specification (0.5-0.8 Nm vs. 0.7-0.8 Nm) and insulation height (19.70mm vs. 22.90mm) does not affect functional compatibility. This part is suitable for direct substitution in all applications where the 1975626 was originally specified.

On Shore Technology EDZ960/6 (Alternative Substitute):

The EDZ960/6 provides functional substitution for applications where voltage requirements do not exceed 300V UL rating. This part maintains the 6-position, 7.62mm pitch configuration and free-hanging mounting type. The wire gauge range (12-28 AWG) overlaps with the original specification in the 12-24 AWG range. The reduced wire strip length (6mm vs. 10mm) and lower voltage rating (300V vs. 600V) restrict its use to lower-voltage applications. This part is suitable only when system voltage requirements are confirmed below 300V UL specification.

Frequently Asked Questions (FAQ)

Q: Can Phoenix Contact 1777765 be used as a direct replacement for 1975626?

A: Yes. The 1777765 is a direct functional equivalent. Both parts share identical position count (6), pitch spacing (7.62mm), termination style (screw-type rising cage clamp), mounting configuration (free-hanging in-line), and electrical ratings (41A IEC, 1 kV IEC, 41A UL, 600V UL). The 1777765 is the recommended replacement due to active product status and equivalent compliance certifications.

Q: What are the key differences between 1777765 and EDZ960/6?

A: The primary differences are manufacturer (Phoenix Contact vs. On Shore Technology), electrical ratings (600V vs. 300V UL), wire gauge range (8-24 AWG vs. 12-28 AWG), and wire strip length (10mm vs. 6mm). The EDZ960/6 is suitable only for applications with voltage requirements not exceeding 300V.

Q: Is the EDZ960/6 suitable for all applications using the original 1975626?

A: No. The EDZ960/6 has a lower UL voltage rating (300V vs. 600V) and reduced wire strip length (6mm vs. 10mm). It is suitable only for applications confirmed to operate below 300V and where the shorter wire strip length is acceptable for the installation geometry.

Q: Are all three parts RoHS and REACH compliant?

A: Yes. The 1975626, 1777765, and EDZ960/6 are all RoHS-compliant and REACH-unaffected. The 1777765 and EDZ960/6 carry ROHS3 certification, indicating compliance with the current RoHS 3 directive.

Q: What is the significance of the screw torque specification difference between 1975626 and 1777765?

A: The 1975626 specifies 0.7-0.8 Nm torque, while the 1777765 specifies 0.5-0.8 Nm. The 1777765 allows a lower minimum torque value but maintains the same maximum. Both specifications are within acceptable engineering tolerance for M3 screw applications and do not affect functional compatibility.

Q: Can the EDZ960/6 accommodate the same wire gauge range as the original 1975626?

A: Partially. The EDZ960/6 supports 12-28 AWG, while the 1975626 supports 8-24 AWG. The EDZ960/6 cannot accommodate wire gauges smaller than 12 AWG (8-11 AWG range). Applications requiring 8-11 AWG wire must use the 1777765.
