Phoenix Contact 1975590 Terminal Block Plug - Equivalent & Substitute Parts

Part Overview

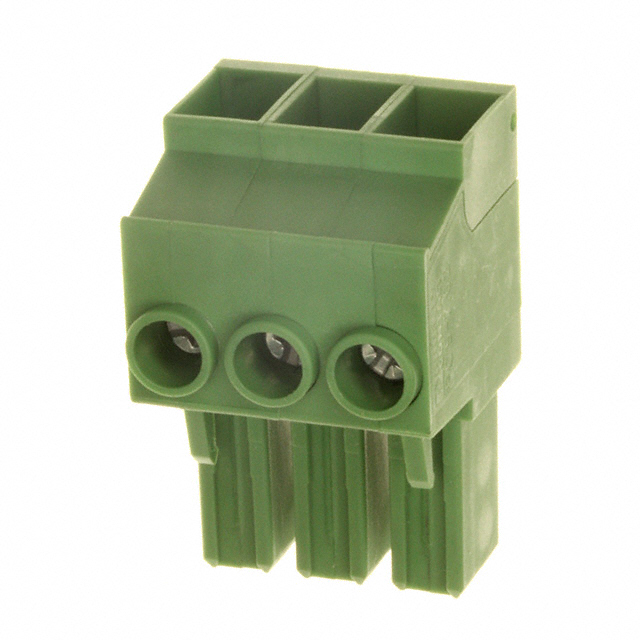

The Phoenix Contact 1975590 is a 3-position terminal block plug with female sockets, 0.300" (7.62mm) pitch, designed for 180° free-hanging in-line applications. This component features screw-type rising cage clamp termination and supports wire gauges from 8-24 AWG (0.2-10mm²). The part is currently obsolete, making equivalent substitutes necessary for ongoing system maintenance and new designs requiring compatible connectivity solutions.

Key Parameters

Parameter	Value
Manufacturer Part Number	1975590
Manufacturer	Phoenix Contact
Category	Terminal Blocks
Type	Plug, Female Sockets
Number of Positions	3
Pitch	0.300" (7.62mm)
Plug Wire Entry	180°
Termination Style	Screw - Rising Cage Clamp
Mounting Type	Free Hanging (In-Line)
Current - IEC	41A
Voltage - IEC	1 kV
Current - UL	41 A
Voltage - UL	600 V
Wire Gauge - AWG	8-24 AWG
Wire Gauge - mm²	0.2-10mm²
Color	Green
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Screw Size	M3
Torque - Screw	0.7-0.8 Nm (6.2-7.1 Lb-In)
Wire Strip Length	10mm
Insulation Height	0.902" (22.90mm)
Housing Material	Polyamide (PA), Nylon
RoHS Status	ROHS3 Compliant
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1975590 is determined by strict alignment across the following critical parameters:

Primary Matching Criteria:

Number of positions: 3
Pitch: 0.300" (7.62mm)
Type: Plug with female sockets
Plug wire entry orientation: 180°
Termination style: Screw - rising cage clamp
Mounting type: Free hanging (in-line)
Wire gauge compatibility: 8-24 AWG minimum
Housing material: Polyamide or equivalent thermoplastic
Contact mating finish: Tin
Flammability rating: UL94 V-0

Identified Substitutes:

Direct Substitute - Phoenix Contact 1777736: Identical electrical and mechanical specifications with active product status. Differs only in packaging (bulk vs. standard) and minor torque specification range adjustment (0.5-0.8 Nm vs. 0.7-0.8 Nm). Insulation height reduced to 0.776" (19.70mm).

Similar Substitute - Amphenol Anytek ET0301500000G: Maintains core mechanical compatibility (3-position, 7.62mm pitch, 180° entry, screw termination, free-hanging mount). Electrical ratings differ: 32A UL current vs. 41A, 300V UL voltage vs. 600V. Wire gauge range 8-24 AWG with minimum 2.5mm² (vs. 0.2mm²). Screw size M4.6 (vs. M3). Operating temperature specified: -40°C to 115°C. Contact material specified as copper alloy.

Parameter Comparison

Parameter	Phoenix Contact 1975590 (Main)	Phoenix Contact 1777736 (Direct)	Amphenol Anytek ET0301500000G (Similar)
Manufacturer	Phoenix Contact	Phoenix Contact	Amphenol Anytek
Number of Positions	3	3	3
Pitch	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)
Type	Plug, Female Sockets	Plug, Female Sockets	Plug, Female Sockets
Plug Wire Entry	180°	180°	180°
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Current - UL	41 A	41 A	32 A
Voltage - UL	600 V	600 V	300 V
Wire Gauge - AWG	8-24 AWG	8-24 AWG	8-24 AWG
Wire Gauge - mm²	0.2-10mm²	0.2-10mm²	2.5-10mm²
Color	Green	Green	Green
Contact Mating Finish	Tin	Tin	Tin
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0
Screw Size	M3	M3	M4.6
Torque - Screw	0.7-0.8 Nm	0.5-0.8 Nm	0.79 Nm
Wire Strip Length	10mm	10mm	10-11mm
Insulation Height	0.902" (22.90mm)	0.776" (19.70mm)	0.902" (22.90mm)
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Thermoplastic Resin
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Product Status	Obsolete	Active	Active

Engineering Selection Recommendations

Phoenix Contact 1777736 (Direct Substitute): This part is the primary replacement for the obsolete 1975590. Both components are manufactured by Phoenix Contact within the COMBICON PC series and maintain identical electrical specifications (41A IEC/UL, 1kV IEC, 600V UL). The 1777736 is currently in active production status with higher inventory availability (809 pcs vs. 684 pcs). The minor reduction in insulation height (0.776" vs. 0.902") and torque specification range adjustment (0.5-0.8 Nm vs. 0.7-0.8 Nm) do not affect functional compatibility. ROHS3 compliance and UL94 V-0 flammability rating are maintained. This substitute is suitable for direct replacement in existing designs.

Amphenol Anytek ET0301500000G (Similar Substitute): This part provides mechanical compatibility but with reduced electrical ratings. The 32A UL current and 300V UL voltage specifications are lower than the original 1975590 (41A, 600V). The ET0301500000G is appropriate only for applications where the lower electrical ratings are acceptable. The M4.6 screw size differs from the M3 specification of the original part. The minimum wire gauge of 2.5mm² (vs. 0.2mm²) may restrict compatibility with smaller gauge applications. This substitute offers significantly higher inventory availability (6466 pcs) and active product status. ROHS3 compliance and UL94 V-0 flammability rating are maintained. Operating temperature range is specified (-40°C to 115°C), providing additional environmental documentation.

Frequently Asked Questions (FAQ)

Q: Can Phoenix Contact 1777736 be used as a direct replacement for 1975590?

A: Yes. The 1777736 maintains identical electrical ratings (41A IEC/UL current, 1kV IEC/600V UL voltage), mechanical configuration (3-position, 7.62mm pitch, 180° entry, screw termination), and housing material specifications. The insulation height reduction and torque range adjustment do not affect functional compatibility. Both parts are ROHS3 compliant with UL94 V-0 flammability rating.

Q: What are the limitations of the Amphenol Anytek ET0301500000G substitute?

A: The ET0301500000G has reduced electrical ratings: 32A UL current (vs. 41A) and 300V UL voltage (vs. 600V). The screw size is M4.6 instead of M3, requiring different tooling. The minimum wire gauge is 2.5mm² (vs. 0.2mm²), which may exclude applications using smaller gauge conductors. Use this substitute only when application requirements fall within these reduced specifications.

Q: Are all three parts mechanically interchangeable?

A: The Phoenix Contact 1975590 and 1777736 are fully mechanically interchangeable. The Amphenol Anytek ET0301500000G maintains the same pitch, position count, and wire entry orientation but differs in screw size (M4.6 vs. M3) and insulation height (0.902" vs. 0.902" for the original). Mechanical fit in existing connector housings should be verified for the Amphenol part due to the M4.6 screw specification.

Q: What compliance certifications apply to these substitutes?

A: All three parts are ROHS3 compliant, UL94 V-0 flammability rated, and REACH unaffected. The 1975590 and 1777736 carry identical compliance documentation. The ET0301500000G maintains the same certifications with the addition of specified operating temperature range (-40°C to 115°C).

Q: Which substitute should be selected for new designs?

A: Phoenix Contact 1777736 is the recommended choice for new designs requiring direct compatibility with the obsolete 1975590 specifications. It maintains all electrical and mechanical parameters while offering active product status and established supply chain availability. The Amphenol Anytek ET0301500000G is suitable only when application requirements align with its reduced electrical ratings and M4.6 screw specification.

Q: How do packaging differences affect part selection?

A: The 1975590 was supplied in standard packaging, while the 1777736 is available in bulk packaging. The ET0301500000G is also bulk packaged. Packaging differences do not affect electrical or mechanical performance. Bulk packaging may offer cost advantages for high-volume applications but requires appropriate handling and storage procedures.
