TE Connectivity 1969614-8 Rectangular Connector Housing – Equivalent & Substitute Parts

Part Overview

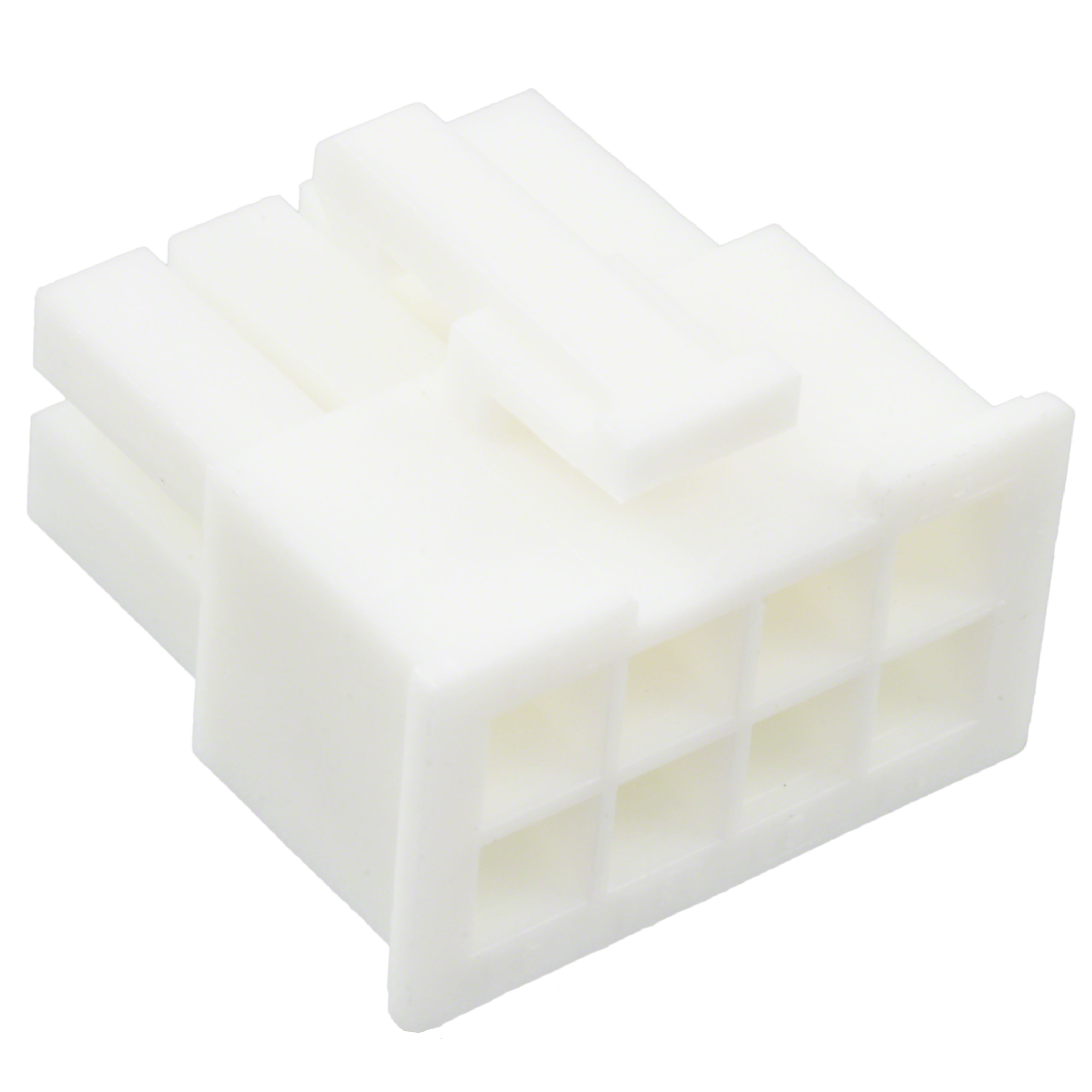

The TE Connectivity 1969614-8 is an 8-position rectangular connector receptacle housing from the VAL-U-LOK series. This component serves as the insulation housing for female socket contacts in applications requiring a 0.165" (4.20mm) pitch configuration with dual-row arrangement. The part is Active in product status with 996 pieces currently in stock. Substitute parts are identified based on matching electrical and mechanical parameters that enable direct functional replacement in connector assemblies.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	8
Pitch	0.165" (4.20mm)
Number of Rows	2
Row Spacing	0.165" (4.20mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6
Operating Temperature Range	-40°C ~ 105°C
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts for the 1969614-8 are qualified based on the following critical parameters that determine functional interchangeability:

Core Electrical and Mechanical Criteria:

Connector Type: Receptacle
Contact Type: Female Socket
Number of Positions: 8
Pitch: 0.165" (4.20mm)
Number of Rows: 2
Row Spacing: 0.165" (4.20mm)
Mounting Type: Free Hanging (In-Line)
Contact Termination: Crimp
Fastening Type: Latch Lock

All substitute parts listed maintain these core parameters. Variations in color (Natural, Black, White) and insulation material composition (PA66 versus PA) do not affect functional compatibility in applications where the housing provides the same mechanical interface and electrical isolation properties. Operating temperature range and RoHS compliance are provided for design verification but do not restrict substitution eligibility.

Parameter Comparison

Manufacturer Part Number	Manufacturer	Series	Color	Insulation Material	Operating Temperature	RoHS Status	Inventory (Pcs)
1969614-8	TE Connectivity AMP Connectors	VAL-U-LOK	Natural	Polyamide (PA66), Nylon 6/6	-40°C ~ 105°C	ROHS3 Compliant	996
1969597-8	TE Connectivity AMP Connectors	VAL-U-LOK	Natural	Polyamide (PA66), Nylon 6/6	-40°C ~ 105°C	ROHS3 Compliant	3501
0039012085	Molex	Mini-Fit Jr 5557	Natural	Polyamide (PA66), Nylon 6/6	-40°C ~ 105°C	ROHS3 Compliant	2777
0469920810	Molex	Mini-Fit Jr 46992	Black	Polyamide (PA), Nylon	-40°C ~ 105°C	ROHS3 Compliant	19467
1727080008	Molex	Mini-Fit TPA2 172708	Black	Polyamide (PA), Nylon	-40°C ~ 105°C	ROHS3 Compliant	5193
649008113322	Würth Elektronik	WR-MPC4	White	Polyamide (PA66), Nylon 6/6	-40°C ~ 105°C	ROHS3 Compliant	1456
CP-01108010	Cvilux USA	CP-01	Natural	Polyamide (PA66), Nylon 6/6	-25°C ~ 85°C	ROHS3 Compliant	2124
CP-01108030	Cvilux USA	CP-01	Natural	Polyamide (PA66), Nylon 6/6	-40°C ~ 105°C	ROHS3 Compliant	3838

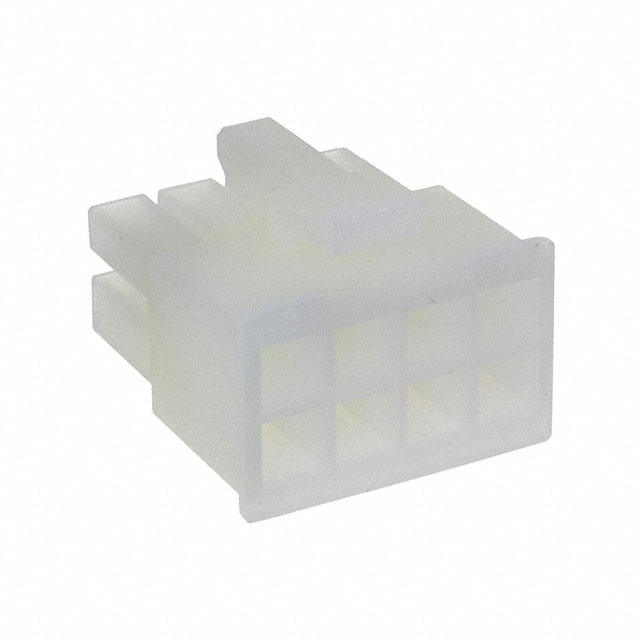

DMH-08	Adam Tech	DMH	Natural	Polyamide (PA66), Nylon 6/6	-40°C ~ 105°C	ROHS3 Compliant	1589

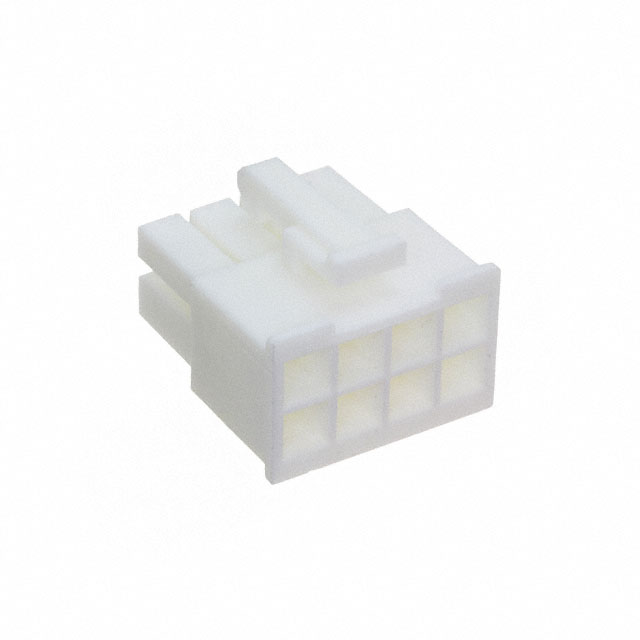

DMH-08-V0	Adam Tech	DMH	Natural	Polyamide (PA66), Nylon 6/6	-40°C ~ 105°C	ROHS3 Compliant	2121

Engineering Selection Recommendations

All listed substitute parts maintain Active product status and ROHS3 compliance, qualifying them for use in applications subject to RoHS regulations. Selection among substitutes should be based on the following factors:

Inventory Availability: The Molex 0469920810 offers the highest inventory level at 19,467 pieces, followed by TE Connectivity 1969597-8 at 3,501 pieces and Cvilux USA CP-01108030 at 3,838 pieces. These options provide supply security for high-volume requirements.

Temperature Range Compatibility: The Cvilux USA CP-01108010 operates within a reduced temperature range of -25°C ~ 85°C compared to the standard -40°C ~ 105°C range of the primary part and most substitutes. This part is suitable only for applications within its specified thermal envelope.

Manufacturer Series Consistency: TE Connectivity 1969597-8 maintains the same VAL-U-LOK series as the primary part 1969614-8, offering design continuity within the same connector family. Molex alternatives (0039012085, 0469920810, 1727080008) represent different series within the Molex product line but maintain identical mechanical and electrical parameters.

Color and Material Specifications: Natural-colored housings (1969614-8, 1969597-8, 0039012085, CP-01108010, CP-01108030, DMH-08, DMH-08-V0) match the primary part specification. Black-colored alternatives (0469920810, 1727080008) and white-colored alternative (649008113322) are suitable where color coding or visual identification requirements differ from the original specification.

Frequently Asked Questions (FAQ)

Q: Can I substitute a black-colored connector housing for the natural-colored 1969614-8?

A: Yes. The Molex 0469920810 and 1727080008 are functionally equivalent substitutes with identical electrical and mechanical parameters. Color variation does not affect connector performance. Selection should be based on application requirements for visual identification or aesthetic specifications.

Q: What is the difference between TE Connectivity 1969614-8 and 1969597-8?

A: Both parts are from the TE Connectivity VAL-U-LOK series with identical electrical and mechanical specifications. The primary difference is inventory availability, with 1969597-8 offering 3,501 pieces compared to 996 pieces for 1969614-8. Both are suitable for direct substitution.

Q: Are Cvilux USA CP-01108010 and CP-01108030 interchangeable?

A: Both Cvilux parts are mechanically and electrically equivalent. The primary difference is operating temperature range: CP-01108010 operates from -25°C ~ 85°C, while CP-01108030 operates from -40°C ~ 105°C. Selection depends on the thermal requirements of the application. For applications requiring the full -40°C ~ 105°C range, CP-01108030 is the appropriate choice.

Q: Do all substitute parts include contacts?

A: No. All listed parts, including the primary 1969614-8, are housings only. Contacts are not included and must be sourced separately. Ensure that selected contacts are compatible with the 0.165" (4.20mm) pitch and crimp termination specification.

Q: What is the significance of the Moisture Sensitivity Level (MSL) rating?

A: The primary part 1969614-8 and most substitutes carry an MSL rating of 1 (Unlimited), indicating no moisture sensitivity restrictions during storage or handling. The Würth Elektronik 649008113322 carries an MSL rating of Not Applicable, also indicating no moisture sensitivity concerns. These parts do not require special dry-storage conditions.

Q: Can I use the Würth Elektronik 649008113322 white housing in place of the natural-colored 1969614-8?

A: Yes. The 649008113322 is a functional equivalent with identical electrical and mechanical parameters. The white color is the only visual difference. This part is suitable for applications where color coding or visual identification requirements permit white housings.

Q: Are there any compliance differences between the substitute parts?

A: All listed parts are ROHS3 compliant. The Molex and Würth Elektronik parts carry REACH Unaffected status, while TE Connectivity and Adam Tech parts show Vendor Undefined or REACH Unaffected status. All parts carry the same ECCN classification (EAR99). Compliance differences do not restrict substitution eligibility for standard applications.
