TE Connectivity 1-968699-1 Rectangular Connector Plug Housing Equivalent & Substitute Parts

Part Overview

The TE Connectivity 1-968699-1 is a 2-position rectangular connector plug housing designed for 0.100" (2.54mm) pitch applications. This component is a black polybutylene terephthalate (PBT) glass-filled housing for male pin contacts, configured as a free-hanging in-line connector with crimp termination. The part is classified as Active product status with RoHS compliance and unlimited moisture sensitivity rating (MSL 1).

Substitute parts are identified when equivalent rectangular connector housings share identical functional parameters: 2-position configuration, 0.100" (2.54mm) pitch, single-row layout, plug connector type with male pin contacts, black color, crimp termination, and free-hanging mounting. Alternative housings may utilize different insulation materials while maintaining electrical and mechanical compatibility within the specified pitch and position requirements.

Key Parameters

Parameter	Value	Substitution Relevance
Connector Type	Plug	Critical - determines mating interface
Number of Positions	2	Critical - defines contact count
Pitch	0.100" (2.54mm)	Critical - determines mechanical fit
Contact Type	Male Pin	Critical - defines contact gender
Number of Rows	1	Critical - defines contact arrangement
Mounting Type	Free Hanging (In-Line)	Critical - determines installation method
Contact Termination	Crimp	Critical - specifies wire attachment method
Color	Black	Secondary - visual identification
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Secondary - material composition
RoHS Status	RoHS Compliant	Regulatory - compliance requirement
MSL Rating	1 (Unlimited)	Secondary - moisture handling

Substitute Part Grouping Explanation

Rectangular connector plug housings are substitutable when they maintain identical critical parameters across connector type, position count, pitch spacing, contact gender, row configuration, mounting method, and termination type. These parameters establish mechanical and electrical compatibility with mating receptacle housings and contact systems.

The 1-968699-1 operates within the 2-position, 0.100" (2.54mm) pitch rectangular connector category. Substitute parts 1452601-1 and 280628 share all critical parameters with the main part:

Critical Matching Parameters:

Connector Type: Plug
Number of Positions: 2
Pitch: 0.100" (2.54mm)
Contact Type: Male Pin
Number of Rows: 1
Mounting Type: Free Hanging (In-Line)
Contact Termination: Crimp

Secondary parameters including insulation material composition and operating temperature range may vary between substitutes without affecting functional compatibility, provided the housing maintains structural integrity and electrical isolation properties required for the application.

Parameter Comparison

Parameter	1-968699-1 (Main Part)	1452601-1 (Substitute)	280628 (Substitute)
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors
Category	Rectangular Connectors	Rectangular Connectors	Rectangular Connectors
Description	CONN PLUG HSG 2POS 2.54MM	CONN PLUG HSG 2POS 2.54MM	CONN PLUG HSG 2POS 2.54MM
Connector Type	Plug	Plug	Plug
Contact Type	Male Pin	Male Pin	Male Pin
Number of Positions	2	2	2
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	1	1	1
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp
Color	Black	Black	Black
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polyamide (PA), Nylon, Glass Filled	Not Specified
Operating Temperature	Not Specified	-40°C ~ 100°C	Not Specified
Product Status	Active	Active	Active
RoHS Status	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant
MSL Rating	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
ECCN	EAR99	EAR99	EAR99
HTSUS Code	8536.69.8000	8536.69.8000	8536.69.8000
Inventory Status	10950 Pcs New Original In Stock	1153 Pcs New Original In Stock	10276 Pcs New Original In Stock

Engineering Selection Recommendations

All three parts—1-968699-1, 1452601-1, and 280628—are classified as Active product status with full RoHS compliance certification. Selection between these substitutes is based on availability, material composition requirements, and regulatory compliance needs.

1-968699-1 (Primary Part): RoHS Compliant status with PBT glass-filled insulation material. Highest inventory availability at 10,950 pieces. Suitable for applications requiring PBT material specifications.

1452601-1 (Substitute): ROHS3 Compliant status with polyamide (PA) nylon glass-filled insulation material. Specified operating temperature range of -40°C to 100°C. Lower inventory at 1,153 pieces. Suitable for applications requiring polyamide material or documented temperature range specifications.

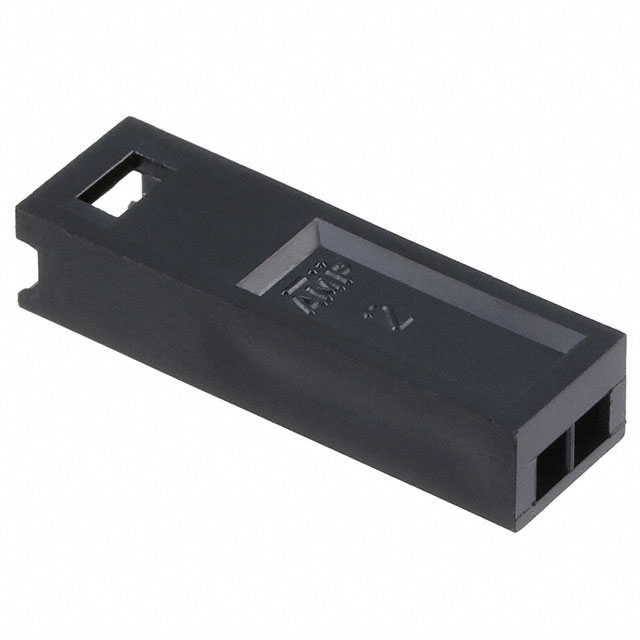

280628 (Substitute): ROHS3 Compliant status with unspecified insulation material. Part of the AMPMODU Mod II series. High inventory availability at 10,276 pieces. Suitable for applications where material composition is not a critical specification.

All parts share identical electrical and mechanical parameters for 2-position, 0.100" (2.54mm) pitch rectangular connector plug housings with male pin contacts and crimp termination. Selection should prioritize material compatibility with existing connector systems and application environmental requirements.

Frequently Asked Questions (FAQ)

Q: Can 1452601-1 replace 1-968699-1 in existing assemblies?

A: Yes. Both parts are 2-position rectangular connector plug housings with 0.100" (2.54mm) pitch, male pin contacts, and crimp termination. The primary difference is insulation material composition: 1-968699-1 uses PBT glass-filled material while 1452601-1 uses polyamide (PA) nylon glass-filled material. Mechanical and electrical compatibility is maintained across both parts.

Q: What is the significance of the operating temperature specification on 1452601-1?

A: The 1452601-1 specifies an operating temperature range of -40°C to 100°C. The main part 1-968699-1 and substitute 280628 do not include operating temperature specifications in their documentation. If application requirements mandate a documented temperature range, 1452601-1 provides explicit thermal performance data.

Q: Are all three parts RoHS compliant?

A: Yes. The main part 1-968699-1 carries RoHS Compliant certification. Substitutes 1452601-1 and 280628 carry ROHS3 Compliant certification. All three parts meet RoHS regulatory requirements and are suitable for applications requiring RoHS compliance.

Q: What is the difference between the series designations?

A: The main part 1-968699-1 belongs to the Micro Quadlok series. Substitute 1452601-1 does not specify a series designation. Substitute 280628 belongs to the AMPMODU Mod II series. Series designation indicates product family grouping but does not affect substitution compatibility when critical parameters match.

Q: Do these connector housings include contacts?

A: No. All three parts—1-968699-1, 1452601-1, and 280628—are connector housings only. Contacts are not included and must be sourced separately. The housings are designed for crimp termination with compatible male pin contacts.

Q: How do inventory levels affect part selection?

A: Inventory availability varies: 1-968699-1 has 10,950 pieces in stock, 1452601-1 has 1,153 pieces, and 280628 has 10,276 pieces. For applications requiring immediate availability or high-volume procurement, 1-968699-1 and 280628 offer superior stock levels. 1452601-1 may require longer lead times for larger orders.

Q: Are there any REACH or environmental compliance differences?

A: The main part 1-968699-1 lists REACH status as Vendor Undefined. Substitute 1452601-1 lists REACH status as REACH Unaffected. Substitute 280628 lists REACH status as Vendor Undefined. All three parts carry identical ECCN (EAR99) and HTSUS (8536.69.8000) classifications.
