TE Connectivity Deutsch Connectors 1-967626-1 Equivalent & Substitute Parts

Part Overview

The TE Connectivity Deutsch Connectors 1-967626-1 is a 9-position rectangular connector housing designed for plug applications with a 5.00mm pitch. This connector is part of the MCP series and features crimp-style tab contacts with a free-hanging, in-line mounting configuration. The housing is constructed from glass-filled polyamide (PA66) and is rated for operating temperatures between -40°C and 120°C. The part is currently in active production status with ROHS3 compliance and unlimited moisture sensitivity rating (MSL 1). Substitute parts are identified when equivalent electrical and mechanical parameters are required but alternative housing colors or inventory considerations necessitate component selection alternatives.

Substiute Parts

1-967626-1

TE Connectivity Deutsch ConnectorsIn Stock: 22561-967626-1 Datasheet

Current PartRFQ

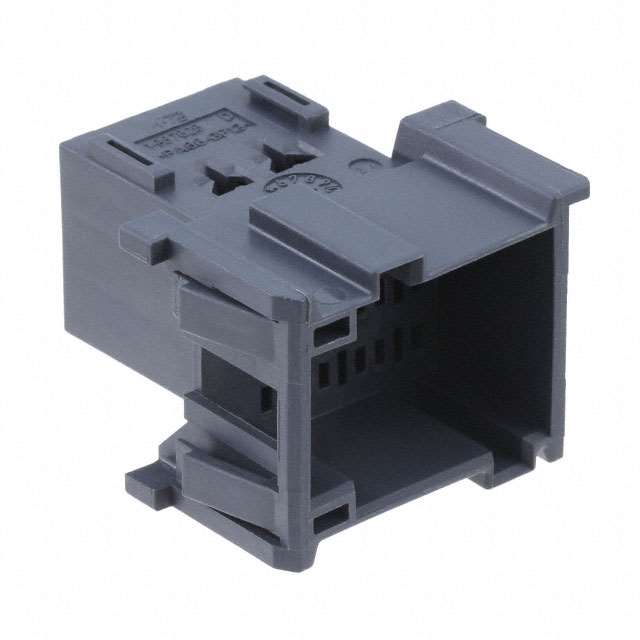

1-967626-4

TE Connectivity Deutsch ConnectorsIn Stock: 18811-967626-4 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of rectangular connector housings within the TE Connectivity Deutsch Connectors MCP series is determined by strict equivalence across the following critical parameters:

Electrical and Mechanical Equivalence Criteria:

• Connector type (Plug)
• Number of positions (9)
• Pitch specification (0.197" / 5.00mm)
• Number of rows (2)
• Row spacing (0.217" / 5.51mm)
• Contact type (Tab)
• Contact termination method (Crimp)
• Mounting configuration (Free Hanging, In-Line)

Material and Environmental Equivalence Criteria:

• Insulation material (Polyamide PA66, Glass Filled)
• Operating temperature range (-40°C ~ 120°C)
• Moisture sensitivity level (MSL 1)
• RoHS compliance status (ROHS3)

The substitute part 1-967626-4 maintains complete equivalence across all electrical, mechanical, material, and environmental parameters. The only distinction between the main part and its substitute is the housing color (Yellow versus Gray), which does not affect functional compatibility or performance characteristics.

Parameter Comparison

Engineering Selection Recommendations

Both the 1-967626-1 and 1-967626-4 are active production parts manufactured by TE Connectivity Deutsch Connectors and maintain full ROHS3 compliance. Selection between these parts should be based on the following factors:

Inventory Availability: The 1-967626-1 (Yellow housing) has 2200 pieces in stock, while the 1-967626-4 (Gray housing) has 1868 pieces in stock. Both quantities support production requirements for the MCP series connector applications.

Compliance and Certification: Both parts carry identical compliance certifications including ROHS3 compliance and MSL 1 rating, ensuring equivalent performance in regulated applications and standard storage conditions.

Application-Specific Considerations: Housing color selection (Yellow or Gray) may be determined by application requirements, assembly documentation, or system integration specifications. The functional and electrical characteristics remain unchanged between the two options.

Interchangeability: The 1-967626-4 serves as a direct functional equivalent to the 1-967626-1 for all electrical and mechanical applications where the MCP series 9-position, 5.00mm pitch plug housing is specified.

Frequently Asked Questions (FAQ)

Q: Are the 1-967626-1 and 1-967626-4 fully interchangeable in circuit applications?

A: Yes. Both parts are electrically and mechanically equivalent. They share identical connector type, position count, pitch, row configuration, contact type, termination method, mounting style, insulation material, and operating temperature range. The only difference is housing color, which does not affect electrical performance or mechanical compatibility.

Q: What determines whether a part can substitute for the 1-967626-1?

A: Substitution is valid when all of the following parameters match: connector type (Plug), number of positions (9), pitch (5.00mm), number of rows (2), row spacing (5.51mm), contact type (Tab), contact termination (Crimp), mounting type (Free Hanging, In-Line), insulation material (PA66 glass-filled), operating temperature range (-40°C to 120°C), and RoHS compliance status (ROHS3).

Q: Can I use the 1-967626-4 if my assembly drawing specifies the 1-967626-1?

A: The 1-967626-4 is functionally equivalent and can be used in applications where the MCP series 9-position connector housing is required. However, assembly documentation or system integration specifications may require color-specific identification. Verify application requirements before substitution.

Q: Are both parts suitable for the full operating temperature range of -40°C to 120°C?

A: Yes. Both the 1-967626-1 and 1-967626-4 are rated for continuous operation across the -40°C to 120°C temperature range. The polyamide PA66 glass-filled insulation material supports this specification for both parts.

Q: What is the significance of the MSL 1 rating for these connectors?

A: MSL 1 (Moisture Sensitivity Level 1) indicates unlimited shelf life under standard storage conditions. Both parts do not require special moisture-controlled storage and can be stored and handled under normal warehouse conditions without degradation.

Q: Do these connector housings include contacts?

A: No. Both the 1-967626-1 and 1-967626-4 are housings only. Contacts must be procured separately and installed using the crimp termination method specified for the MCP series.

Q: What is the difference between the two parts?

A: The only difference is the housing color: 1-967626-1 features a Yellow housing, while 1-967626-4 features a Gray housing. All other specifications, including electrical characteristics, mechanical dimensions, material composition, and compliance certifications, are identical.
