Phoenix Contact 1964006 MSTBV 2,5/ 8-G THT Terminal Block - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 1964006 is an 8-position terminal block in the MSTBV series, designed for through-hole mounting applications. This component is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system maintenance and new design implementations. The part maintains RoHS compliance and MSL Level 1 rating, indicating suitability for standard industrial applications without moisture sensitivity constraints.

Substiute Parts

1964006

Phoenix ContactIn Stock: 11601964006 Datasheet

Current PartRFQ

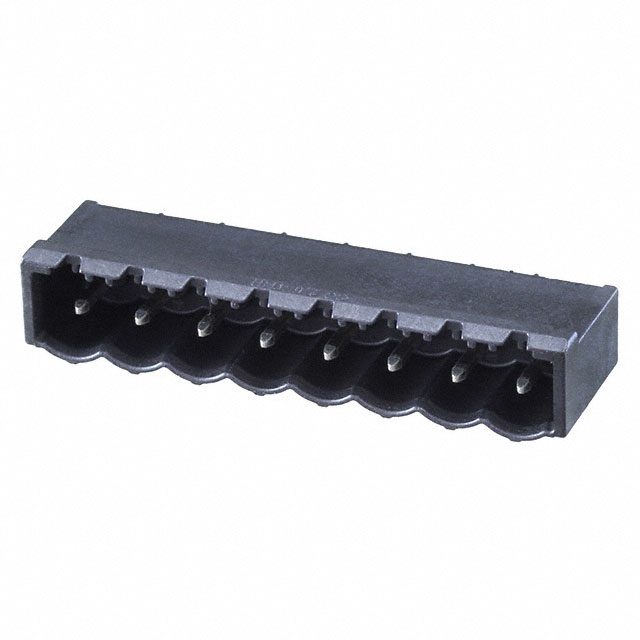

1837080

Phoenix ContactIn Stock: 10841837080 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The Phoenix Contact 1964006 can be substituted with the CCVA 2,5/ 8-G P20 THR (part number 1837080) based on the following critical parameters:

• Number of Positions: Both components feature 8-position configurations
• Pitch Specification: Both maintain 0.197" (5.00mm) pitch spacing
• Mounting Technology: Both utilize through-hole termination for PCB integration
• Manufacturer Consistency: Both are Phoenix Contact products, ensuring design philosophy alignment
• Compliance Standards: Both maintain RoHS compliance and MSL Level 1 rating

The substitution is valid within the scope of these electrical and mechanical parameters. The CCVA series represents an active product line, providing long-term availability compared to the obsolete MSTBV series.

Parameter Comparison

Engineering Selection Recommendations

The CCVA 2,5/ 8-G P20 THR (1837080) is the designated substitute for the obsolete Phoenix Contact 1964006. Selection of this alternative is supported by:

• Active Product Status: The CCVA series maintains active manufacturing status, ensuring supply chain continuity and long-term availability
• Compliance Alignment: Both components meet RoHS requirements and maintain identical MSL Level 1 ratings
• Electrical Specifications: The substitute provides defined current ratings (12A IEC, 16A UL) and 300V voltage rating, establishing clear operational boundaries
• Mechanical Compatibility: Identical 8-position, 5.00mm pitch configuration ensures direct footprint compatibility in through-hole PCB applications
• Material Specifications: LCP housing and copper alloy contacts provide established reliability characteristics for industrial terminal block applications

Frequently Asked Questions (FAQ)

Q: Can the CCVA 1837080 directly replace the MSTBV 1964006 in existing designs?

A: Yes, within the scope of the specified electrical and mechanical parameters. Both components share identical position count (8), pitch spacing (5.00mm), and through-hole mounting configuration. PCB footprint compatibility is maintained.

Q: What are the key differences between these two terminal block series?

A: The primary differences are product status and electrical specification documentation. The MSTBV 1964006 is obsolete with limited parameter data, while the CCVA 1837080 is an active product with fully specified current ratings (12A IEC, 16A UL) and voltage rating (300V UL).

Q: Are there any packaging or inventory considerations?

A: The CCVA 1837080 is supplied in bulk packaging with 987 pieces currently in stock. The MSTBV 1964006 is obsolete. For new procurement, the CCVA series should be specified.

Q: Do both components meet the same compliance standards?

A: Yes. Both the MSTBV 1964006 and CCVA 1837080 are RoHS compliant and maintain MSL Level 1 (unlimited moisture sensitivity) ratings.

Q: What is the contact material composition in the substitute part?

A: The CCVA 1837080 features copper alloy contacts with tin mating finish, providing standard corrosion resistance for industrial terminal block applications.
