TE Connectivity AMP Connectors 1-963214-1 Equivalent & Substitute Parts

Part Overview

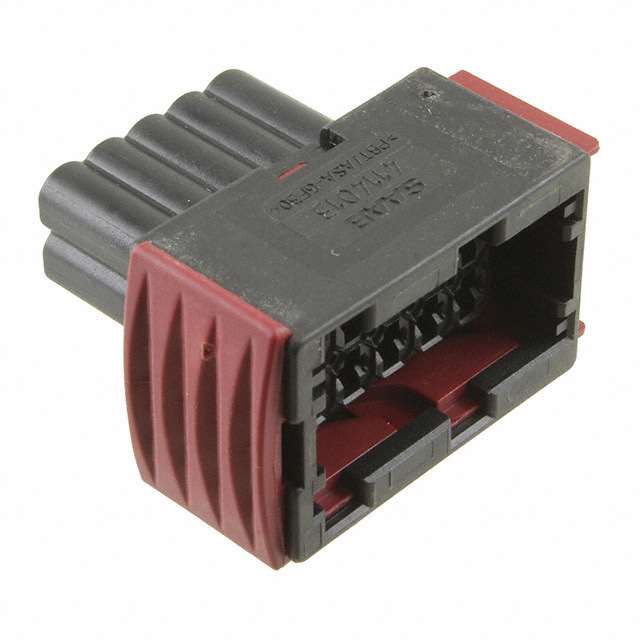

The TE Connectivity AMP Connectors 1-963214-1 is a rectangular connector receptacle housing designed for the Junior Power Timer series. This component is a 10-position receptacle housing with a 5.00mm pitch configuration, featuring a sealed design with crimp-type contact termination. The part is classified as Active product status and is RoHS3 compliant.

Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across connector housings within the same series and category. Identifying equivalent parts ensures design flexibility, supply chain continuity, and component availability across manufacturing environments.

Substiute Parts

1-963214-1

TE Connectivity AMP ConnectorsIn Stock: 10551-963214-1 Datasheet

Current PartRFQ

2-963214-1

TE Connectivity AMP ConnectorsIn Stock: 20282-963214-1 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of rectangular connector housings is determined by equivalence across the following critical parameters:

Electrical Parameters:

• Connector type (Receptacle)
• Contact type (Female Socket)
• Number of positions (10)
• Pitch specification (0.197" / 5.00mm)
• Row configuration (2 rows with 0.236" / 6.00mm spacing)

Mechanical Parameters:

• Mounting type (Free Hanging / In-Line)
• Contact termination method (Crimp)
• Insulation material (Polybutylene Terephthalate, Glass Filled)
• Housing color (Black)
• Sealed feature

Compliance Parameters:

• Series designation (Junior Power Timer)
• RoHS compliance status
• REACH compliance status
• Moisture sensitivity level (MSL 1)

The substitute part 2-963214-1 maintains identical electrical and mechanical specifications across all critical parameters, confirming direct substitution capability within the Junior Power Timer series.

Parameter Comparison

Engineering Selection Recommendations

Both the primary part 1-963214-1 and the substitute part 2-963214-1 are classified as Active products from TE Connectivity AMP Connectors. Both components maintain full compliance with RoHS directives and REACH regulations, with MSL rating of 1 (Unlimited moisture sensitivity level).

The substitute part 2-963214-1 demonstrates equivalent performance across all electrical, mechanical, and environmental parameters. Selection between these parts may be based on inventory availability, supply chain logistics, or procurement requirements, as both parts are functionally interchangeable within the Junior Power Timer series.

Current inventory status shows 1040 pieces of 1-963214-1 and 1942 pieces of 2-963214-1 available as new original stock.

Frequently Asked Questions (FAQ)

Q: Are parts 1-963214-1 and 2-963214-1 electrically interchangeable?

A: Yes. Both parts are 10-position receptacle housings with identical pitch (5.00mm), row configuration (2 rows at 6.00mm spacing), contact type (female socket), and termination method (crimp). They are electrically equivalent within the Junior Power Timer series.

Q: Do these parts have the same physical dimensions and mounting characteristics?

A: Yes. Both parts share identical mechanical specifications including mounting type (free hanging in-line), housing color (black), insulation material (glass-filled PBT), and sealed design features.

Q: Are there compliance differences between the two parts?

A: Both parts are RoHS compliant and REACH unaffected. The primary part carries ROHS3 designation while the substitute carries RoHS designation. Both maintain MSL rating of 1 (Unlimited). Both are Active products.

Q: Do these housings include contacts?

A: No. Both parts are housings only. Contacts are not included and must be sourced separately.

Q: Can I use these parts interchangeably in existing designs?

A: Yes. The identical electrical and mechanical parameters across connector type, position count, pitch, row spacing, mounting configuration, and termination method confirm direct interchangeability.

Q: What is the difference between the part numbers 1-963214-1 and 2-963214-1?

A: The parts share the same base product number (963214) and are functionally equivalent. The numeric prefix differentiates manufacturing batches or supply chain variants within the same product specification.
