Phoenix Contact 1948792 Terminal Block Plug - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 1948792 is a 10-position terminal block plug with female sockets, 0.200" (5.08mm) pitch, designed for 180° free-hanging in-line applications. This component features screw-type rising cage clamp termination and supports wire gauges from 12-30 AWG (0.2-2.5mm²). The part is classified as obsolete, making identification of active equivalent components essential for procurement and system continuity.

Substiute Parts

1948792

Phoenix ContactIn Stock: 9761948792 Datasheet

Current PartRFQ

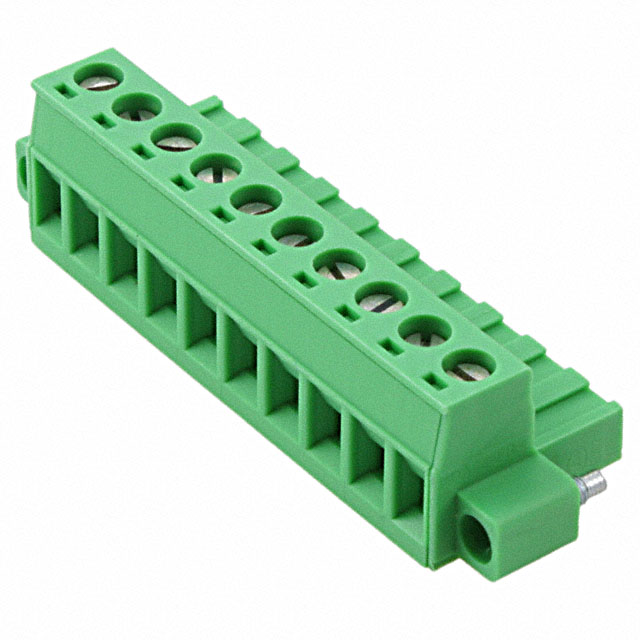

1778069

Phoenix ContactIn Stock: 12731778069 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1948792 is determined by strict alignment of the following critical parameters:

• Connector Type & Configuration: 10-position plug with female sockets, 0.200" (5.08mm) pitch
• Termination Method: Screw-type rising cage clamp
• Wire Entry Orientation: 180° free-hanging in-line mounting
• Wire Gauge Compatibility: 12-30 AWG (0.2-2.5mm²)
• Electrical Ratings: Current and voltage ratings must meet or exceed application requirements
• Material & Safety Compliance: UL94 V-0 flammability rating
• Series Compatibility: COMBICON MSTB series

The substitute part Phoenix Contact 1948792 meets all critical substitution criteria. It maintains identical mechanical and electrical specifications while offering active product status and enhanced availability.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1778069 serves as the direct active equivalent to the obsolete 1948792. Both components share identical mechanical interfaces, electrical termination methods, and wire gauge specifications within the COMBICON MSTB series.

The 1778069 provides enhanced electrical performance with increased IEC voltage rating (630 V versus 250 V) and higher UL current rating (15 A versus 10 A), making it suitable for applications requiring the original 1948792 specifications. The substitute maintains UL94 V-0 flammability compliance and is RoHS3 compliant with REACH unaffected status.

Product status transition from obsolete to active ensures long-term supply chain stability and continued technical support. The 1778069 is available in bulk packaging with 1228 units in current inventory.

Frequently Asked Questions (FAQ)

Q: Can the 1778069 directly replace the 1948792 in existing applications?

A: Yes. Both components maintain identical 10-position configuration, 0.200" (5.08mm) pitch, 180° wire entry orientation, and screw-type rising cage clamp termination. Mechanical and electrical interfaces are fully compatible for applications operating within the original 1948792 specifications.

Q: What are the key differences between these parts?

A: The 1778069 offers higher electrical ratings (630 V IEC, 15 A UL versus 250 V IEC, 10 A UL) and includes a mating flange feature. The substitute is active product status with RoHS3 compliance and defined torque specifications (0.5-0.6 Nm) and wire strip length (7mm).

Q: Are there packaging considerations for the substitute?

A: The 1948792 was supplied in standard packaging, while the 1778069 is available in bulk packaging. Both maintain identical component dimensions and electrical characteristics.

Q: Does the 1778069 meet the same safety standards?

A: Yes. Both components carry UL94 V-0 material flammability rating. The 1778069 additionally provides RoHS3 compliance and REACH unaffected status, meeting current regulatory requirements.

Q: What wire gauges are supported?

A: Both the 1948792 and 1778069 support 12-30 AWG wire gauge range (0.2-2.5mm²), maintaining full compatibility for existing wiring specifications.
