Phoenix Contact 1946367 Terminal Block Plug - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 1946367 is a 2-position terminal block plug with female sockets, 5mm pitch, designed for free-hanging in-line applications. This component features screw-type rising cage clamp termination and supports wire gauges from 12-30 AWG (0.2-2.5mm²). The part is classified as obsolete, making identification of active equivalent models essential for procurement and system continuity.

Key Parameters

Parameter	Value
Manufacturer Part Number	1946367
Manufacturer	Phoenix Contact
Series	COMBICON MSTB
Category	Terminal Blocks
Type	Plug, Female Sockets
Number of Positions	2
Pitch	0.197" (5.00mm)
Plug Wire Entry	180°
Termination Style	Screw - Rising Cage Clamp
Mounting Type	Free Hanging (In-Line)
Current - IEC	12A
Voltage - IEC	630 V
Wire Gauge Range	12-30 AWG (0.2-2.5mm²)
Housing Material	Polyamide (PA), Nylon
Flammability Rating	UL94 V-0
Product Status	Obsolete

Substitute Part Grouping Explanation

The Phoenix Contact 1946367 can be substituted with part number 1786831 based on the following critical parameters that determine functional equivalence:

Matching Parameters:

Identical pitch: 0.197" (5.00mm)
Identical number of positions: 2
Identical plug wire entry orientation: 180°
Identical termination style: Screw - Rising Cage Clamp
Identical mounting type: Free Hanging (In-Line)
Identical IEC current rating: 12A
Identical IEC voltage rating: 630 V
Identical wire gauge range: 12-30 AWG (0.2-2.5mm²)
Identical housing material: Polyamide (PA), Nylon
Identical flammability rating: UL94 V-0
Identical screw size: M3
Identical torque specification: 0.5-0.6 Nm (4.4-5.3 Lb-In)
Identical wire strip length: 7mm
Identical contact mating finish: Tin
Identical series: COMBICON MSTB

The substitute part 1786831 is currently active in production, whereas the original 1946367 is obsolete.

Parameter Comparison

Parameter	1946367 (Original)	1786831 (Substitute)
Manufacturer Part Number	1946367	1786831
Manufacturer	Phoenix Contact	Phoenix Contact
Series	COMBICON MSTB	COMBICON MSTB
Type	Plug, Female Sockets	Plug, Female Sockets
Number of Positions	2	2
Pitch	0.197" (5.00mm)	0.197" (5.00mm)
Plug Wire Entry	180°	180°
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Current - IEC	12A	12A
Current - UL	10A	15A
Voltage - IEC	630 V	630 V
Voltage - UL	300 V	300 V
Wire Gauge Range	12-30 AWG (0.2-2.5mm²)	12-30 AWG (0.2-2.5mm²)
Color	Green	Green
Contact Mating Finish	Tin	Tin
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Flammability Rating	UL94 V-0	UL94 V-0
Screw Size	M3	M3
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)	0.5-0.6 Nm (4.4-5.3 Lb-In)
Wire Strip Length	7mm	7mm
Product Status	Obsolete	Active
RoHS Status	RoHS Compliant	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)
ECCN	EAR99	EAR99
HTSUS	8536.90.4000	8536.90.4000

Engineering Selection Recommendations

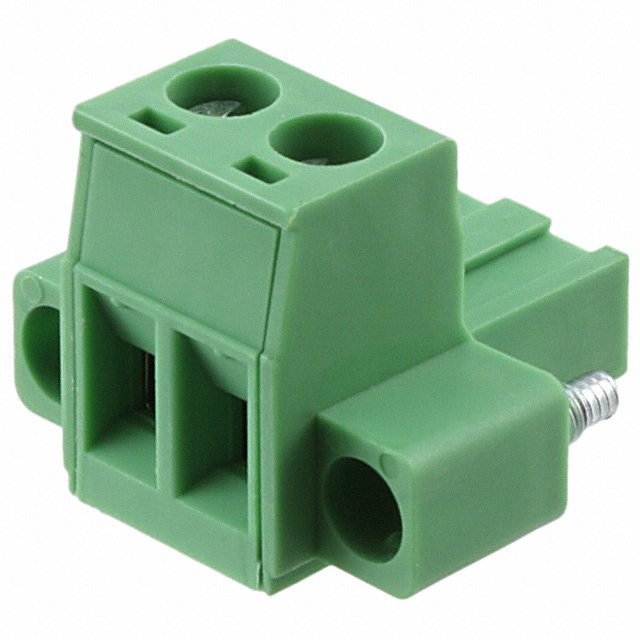

The Phoenix Contact 1786831 is the direct substitute for the obsolete 1946367. Both components share identical electrical and mechanical specifications across all critical parameters. The 1786831 offers the following advantages:

Active product status ensures ongoing availability and supply chain continuity
ROHS3 compliance provides enhanced regulatory alignment compared to RoHS compliance
UL current rating of 15A (versus 10A on the original) provides additional margin in UL-regulated applications
Identical IEC ratings maintain full compatibility with IEC-based system designs
Mating flange feature on the substitute provides mechanical retention without wire-side latches

The substitute part is suitable for direct replacement in all applications where the original 1946367 was specified.

Frequently Asked Questions (FAQ)

Q: Can the 1786831 be used as a direct replacement for the 1946367?

A: Yes. Both parts share identical pitch (5mm), position count (2), wire entry angle (180°), termination method (screw rising cage clamp), mounting type (free hanging in-line), IEC current (12A), IEC voltage (630V), wire gauge range (12-30 AWG / 0.2-2.5mm²), housing material (Polyamide/Nylon), and flammability rating (UL94 V-0). The 1786831 is the active equivalent.

Q: What is the difference in UL current ratings between these parts?

A: The 1946367 is rated for 10A under UL standards, while the 1786831 is rated for 15A. Both maintain the same 12A IEC rating. The higher UL rating on the substitute provides additional capacity margin for UL-compliant applications.

Q: Are there packaging differences between these parts?

A: The 1946367 was supplied with standard packaging (not specified), while the 1786831 is supplied in bulk packaging. This difference does not affect electrical or mechanical compatibility.

Q: Do both parts have the same compliance certifications?

A: Both parts are RoHS compliant. The 1786831 carries ROHS3 compliance, which represents a more current regulatory standard. Both parts share identical ECCN (EAR99) and HTSUS (8536.90.4000) classifications.

Q: What is the significance of the mating flange feature difference?

A: The 1946367 includes both mating flange and retention latches (non-wire side), while the 1786831 includes only the mating flange. Both designs provide mechanical retention; the difference reflects design evolution in the COMBICON MSTB series without affecting functional compatibility.

Q: Are the screw torque specifications identical?

A: Yes. Both parts specify M3 screws with identical torque range of 0.5-0.6 Nm (4.4-5.3 Lb-In) and wire strip length of 7mm.
