Equivalent & Substitute Parts for ITT Cannon 192993-0021

Part Overview

The ITT Cannon 192993-0021 is a 4-position circular connector receptacle housing designed for panel mount applications within the Trident Neptune Metal (TNM) series. This shielded receptacle housing accommodates female sockets and features a keyed orientation with detent lock fastening. The component is classified as Active product status with full RoHS compliance and unlimited moisture sensitivity rating (MSL 1).

Substitute parts are identified to provide alternative sourcing options when the primary part is unavailable, while maintaining functional and mechanical compatibility within the specified parameter constraints.

Substiute Parts

192993-0021

ITT Cannon, LLCIn Stock: 1019192993-0021 Datasheet

Current PartRFQ

RT00104SNH

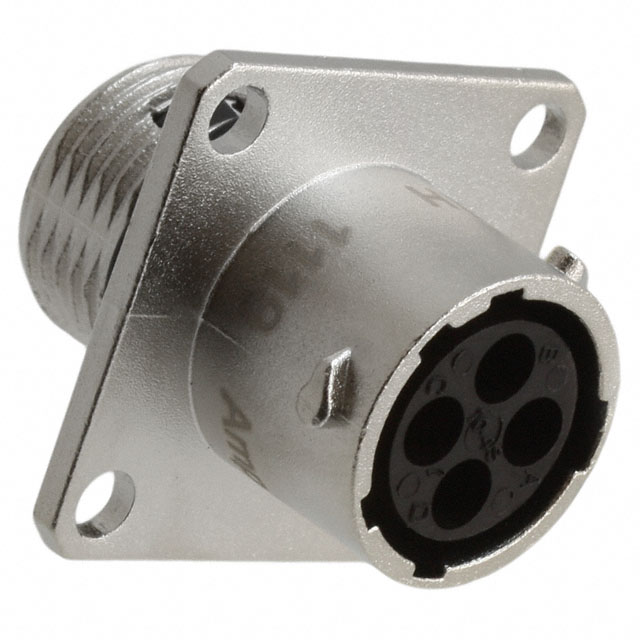

Amphenol Sine Systems CorpIn Stock: 1369RT00104SNH Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the ITT Cannon 192993-0021 is determined by the following critical parameters:

Mandatory Matching Parameters:

• Connector Type: Receptacle Housing for female sockets
• Number of Positions: 4
• Mounting Type: Panel Mount with flange feature
• Shell Material: Zinc Alloy with nickel finish
• Shielding: Shielded configuration
• Material Flammability: UL94 V-0 rating
• Moisture Sensitivity: MSL 1 (Unlimited)

Allowable Variations:

• Shell Size - Insert: Equivalent sizes within circular connector standards (10-0004 to 10-4 conversion acceptable)
• Fastening Type: Detent Lock or Bayonet Lock (both provide secure mating)
• Orientation: Keyed or Normal (both provide polarization control)
• Contact Type: Crimp, Solder, Solder Cup, or Crimp alone (all support electrical continuity)
• Operating Temperature: Minimum -40°C acceptable (substitute range -40°C ~ 105°C vs. -55°C ~ 105°C)
• Ingress Protection: IP67 rating acceptable as enhancement over unspecified rating

The Amphenol Sine Systems RT00104SNH qualifies as a direct substitute based on these parameters.

Parameter Comparison

Engineering Selection Recommendations

Primary Part (ITT Cannon 192993-0021):

• Active product status with established supply chain
• RoHS Compliant certification
• Extended operating temperature range (-55°C minimum)
• Keyed orientation for enhanced polarization control
• Detent lock fastening mechanism

Substitute Part (Amphenol Sine Systems RT00104SNH):

• Active product status with confirmed availability (1330 pcs in stock)
• ROHS3 Compliant certification (meets current regulatory requirements)
• IP67 ingress protection rating (enhanced environmental sealing)
• Bayonet lock fastening (alternative secure mating method)
• Normal orientation (standard polarization approach)
• Minimum operating temperature of -40°C (acceptable for most industrial applications)

Selection between these parts should be based on application-specific requirements regarding minimum operating temperature, fastening mechanism preference, and ingress protection needs. Both parts satisfy the core functional and compliance requirements for 4-position shielded circular connector receptacle housings with panel mount configuration.

Frequently Asked Questions (FAQ)

Q: Can the Amphenol RT00104SNH directly replace the ITT Cannon 192993-0021 in all applications?

A: The Amphenol part qualifies as a substitute for applications where the operating temperature does not fall below -40°C. If your application requires operation at temperatures between -55°C and -40°C, the ITT Cannon part is required. Both parts are mechanically and electrically compatible for 4-position shielded circular connector receptacle housing functions.

Q: What is the difference between Detent Lock and Bayonet Lock fastening?

A: Both fastening types provide secure mating connections. Detent lock uses a spring-loaded mechanism for engagement, while bayonet lock uses a twist-and-lock mechanism. Selection depends on application requirements for mating frequency and user interface preference.

Q: Are the shell sizes 10-0004 and 10-4 interchangeable?

A: Yes. These designations refer to equivalent shell sizes within circular connector standards. Both accommodate 4-position configurations with identical contact spacing and mechanical interfaces.

Q: Does the difference in insert material (Polyamide vs. Thermoplastic) affect performance?

A: Both materials meet UL94 V-0 flammability requirements and provide equivalent electrical insulation properties. The thermoplastic insert in the Amphenol part offers comparable performance for the specified operating temperature and environmental conditions.

Q: What does the IP67 rating on the Amphenol part provide?

A: IP67 certification indicates dust-tight and waterproof performance. This represents an enhancement over the unspecified ingress protection of the ITT Cannon part and is beneficial for applications requiring environmental sealing.

Q: Are both parts RoHS compliant?

A: Yes. The ITT Cannon part carries RoHS Compliant status, and the Amphenol part carries ROHS3 Compliant status. Both meet current regulatory requirements for restricted substances.
