TE Connectivity 1-925369-2 Rectangular Connector Receptacle Housing – Equivalent & Substitute Parts
Part Overview
The TE Connectivity 1-925369-2 is a 12-position rectangular connector receptacle housing with 0.100" (2.54mm) pitch, designed for free-hanging in-line applications. This component belongs to the AMPMODU Mod IV series and features crimp-type female socket contacts with polyamide (PA66) insulation material. The part is actively produced and RoHS compliant, with unlimited moisture sensitivity rating (MSL 1).
Substitute parts are identified when equivalent rectangular connector housings share the same critical electrical and mechanical parameters: 12-position count, 0.100" (2.54mm) pitch, receptacle type with female socket contacts, single-row configuration, free-hanging in-line mounting, and crimp termination. Alternative housings may differ in color, insulation material composition, operating temperature range, and manufacturer series designation while maintaining functional interchangeability.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Manufacturer Part Number | 1-925369-2 |
| Manufacturer | TE Connectivity AMP Connectors |
| Category | Rectangular Connectors |
| Series | AMPMODU Mod IV |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Number of Positions | 12 |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Color | Green |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Operating Temperature Range | -65°C ~ 105°C |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Status | Active |
Substitute Part Grouping Explanation
Substitute parts for the TE Connectivity 1-925369-2 are qualified based on strict equivalence of the following critical parameters:
Mandatory Matching Parameters:
- Number of Positions: 12
- Pitch: 0.100" (2.54mm)
- Connector Type: Receptacle
- Contact Type: Female Socket
- Number of Rows: 1
- Mounting Type: Free Hanging (In-Line)
- Contact Termination: Crimp
Variable Parameters (Substitution Allowed):
- Color (Green, Black, or Blue)
- Insulation Material (Polyamide, Thermoplastic, Polybutylene Terephthalate, Polyester)
- Operating Temperature Range (within application requirements)
- Manufacturer Series designation
- Manufacturer identity
All identified substitute parts maintain the core electrical and mechanical interface specifications required for functional interchangeability with the main part number 1-925369-2.
Parameter Comparison
| Manufacturer Part Number | Manufacturer | Series | Connector Type | Contact Type | Positions | Pitch | Rows | Mounting Type | Termination | Color | Insulation Material | Operating Temperature | RoHS Status | MSL | Inventory (Pcs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1-925369-2 | TE Connectivity AMP Connectors | AMPMODU Mod IV | Receptacle | Female Socket | 12 | 0.100" (2.54mm) | 1 | Free Hanging (In-Line) | Crimp | Green | Polyamide (PA66), Nylon 6/6 | -65°C ~ 105°C | RoHS Compliant | 1 | 1014 |
| 1-103648-1 | TE Connectivity AMP Connectors | AMPMODU MTE | Receptacle | Female Socket | 12 | 0.100" (2.54mm) | 1 | Free Hanging (In-Line) | Crimp | Black | Thermoplastic | -65°C ~ 105°C | RoHS Compliant | 1 | 889 |

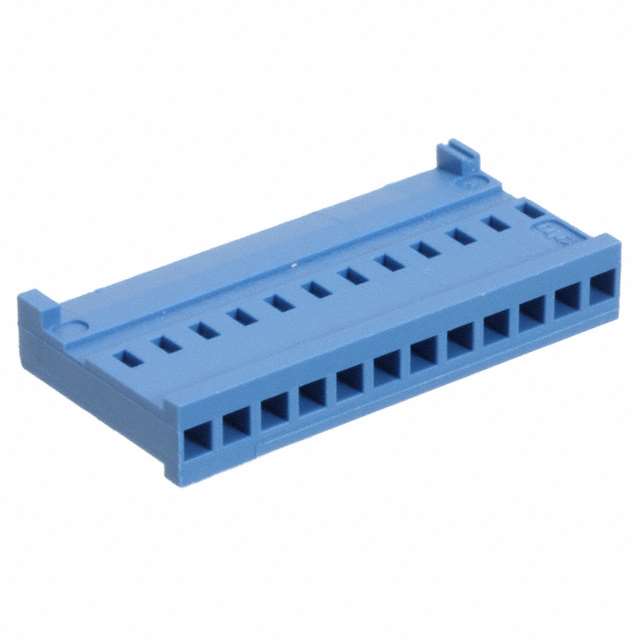

| 1-281838-2 | TE Connectivity AMP Connectors | HE13/HE14 | Receptacle | Female Socket | 12 | 0.100" (2.54mm) | 1 | Free Hanging (In-Line) | Crimp | Blue | Polybutylene Terephthalate (PBT), Glass Filled | -55°C ~ 125°C | ROHS3 Compliant | 1 | 2069 |
| 0050579012 | Molex | SL 70066 | Receptacle | Female Socket | 12 | 0.100" (2.54mm) | 1 | Free Hanging (In-Line) | Crimp | Black | Polyester, Glass Filled | -40°C ~ 105°C | ROHS3 Compliant | 1 | 12212 |
| 0050579212 | Molex | SL 70066 | Receptacle | Female Socket | 12 | 0.100" (2.54mm) | 1 | Free Hanging (In-Line) | Crimp | Black | Polyester, Glass Filled | -40°C ~ 105°C | ROHS3 Compliant | 1 | 25914 |
| 0050579312 | Molex | SL 70066 | Receptacle | Female Socket | 12 | 0.100" (2.54mm) | 1 | Free Hanging (In-Line) | Crimp | Black | Polyester, Glass Filled | -40°C ~ 105°C | ROHS3 Compliant | 1 | 6416 |
| 65039-025LF | Amphenol ICC (FCI) | Mini-PV™, Basics+ | Receptacle | Female Socket | 12 | 0.100" (2.54mm) | 1 | Free Hanging (In-Line) | Crimp | Black | Polyphenylene, Modified | -40°C ~ 105°C | RoHS Compliant | 1 | 848 |
| 65240-012LF | Amphenol ICC (FCI) | DUBOX™, MezzSelect™, Basics+ | Receptacle | Female Socket | 12 | 0.100" (2.54mm) | 1 | Free Hanging (In-Line) | Crimp | Blue | Thermoplastic, Glass Filled | -65°C ~ 125°C | RoHS Compliant | 1 | 4380 |
| M20-1061200 | Harwin Inc. | M20 | Receptacle | Female Socket | 12 | 0.100" (2.54mm) | 1 | Free Hanging (In-Line) | Crimp | Black | Thermoplastic | -25°C ~ 85°C | ROHS3 Compliant | 1 | 3074 |
Engineering Selection Recommendations
Primary Substitutes (TE Connectivity Manufacturer Family):
The TE Connectivity parts 1-103648-1, 1-281838-2 maintain identical electrical and mechanical specifications to the main part 1-925369-2 while differing only in housing color and insulation material composition. Both are actively produced and RoHS compliant. Part 1-281838-2 offers an extended upper operating temperature limit of 125°C compared to 105°C for the main part, with ROHS3 compliance status.
Secondary Substitutes (Molex SL 70066 Series):
The Molex parts 0050579012, 0050579212, and 0050579312 provide functional equivalence with identical position count, pitch, and mounting configuration. All three are ROHS3 compliant with unlimited MSL rating. Operating temperature range is -40°C to 105°C, which narrows the lower temperature specification by 25°C compared to the main part. These parts feature polyester glass-filled insulation and are available in high inventory quantities.
Tertiary Substitutes (Amphenol ICC and Harwin):
Part 65039-025LF (Amphenol ICC Mini-PV series) and 65240-012LF (Amphenol ICC DUBOX series) maintain full electrical and mechanical compatibility. Part 65240-012LF extends the upper operating temperature to 125°C with RoHS compliance and REACH unaffected status. Part M20-1061200 (Harwin M20 series) is ROHS3 compliant but operates within a narrower temperature range of -25°C to 85°C.
Compliance Considerations:
All substitute parts maintain MSL 1 (unlimited) moisture sensitivity rating. RoHS compliance is universal across all options. REACH status varies: TE Connectivity and Amphenol ICC parts show vendor undefined or unaffected status, while Molex and Harwin parts are REACH unaffected. ECCN classification is EAR99 for all parts.
Frequently Asked Questions (FAQ)
Q: What are the critical parameters that determine if a part can substitute for the 1-925369-2?
A: The following parameters must match exactly: 12-position count, 0.100" (2.54mm) pitch, receptacle connector type, female socket contact type, single-row configuration, free-hanging in-line mounting, and crimp contact termination. Color, insulation material, operating temperature range, and manufacturer series may vary.
Q: Can I use a substitute part with a different operating temperature range?
A: Yes, provided the substitute part's operating temperature range encompasses your application requirements. For example, if your application operates between -40°C and 85°C, parts with ranges of -65°C to 105°C, -40°C to 105°C, or -25°C to 85°C are all acceptable. Parts with narrower ranges may not be suitable for all applications.
Q: Are all substitute parts RoHS compliant?
A: Yes. The main part 1-925369-2 is RoHS compliant, and all identified substitute parts are either RoHS compliant or ROHS3 compliant, meeting current regulatory requirements.
Q: What is the difference between RoHS and ROHS3 compliance?
A: Both designations indicate compliance with Restriction of Hazardous Substances regulations. ROHS3 represents the current version of the directive. All parts listed are compliant with applicable RoHS standards.
Q: Do all substitute parts have the same moisture sensitivity level?
A: Yes. The main part and all substitute parts carry MSL 1 (unlimited) rating, indicating no moisture sensitivity restrictions during storage or handling.
Q: Can I mix different substitute parts in the same assembly?
A: Yes, provided all parts meet your application's electrical, mechanical, and environmental requirements. All listed substitutes are functionally interchangeable based on the critical parameters specified.
Q: What does "Contacts Not Included" mean?
A: This indicates that the housing component is supplied without pre-installed crimp contacts. Contacts must be sourced separately and crimped into the housing according to the manufacturer's specifications.
Q: Which substitute offers the highest inventory availability?
A: Molex part 0050579212 has the highest inventory with 25,914 pieces in stock, followed by 0050579012 with 12,212 pieces.
Q: Are there any temperature-related limitations I should consider?
A: The main part 1-925369-2 operates from -65°C to 105°C. Molex parts operate from -40°C to 105°C (25°C narrower at the lower end). Harwin part M20-1061200 operates from -25°C to 85°C (40°C narrower at the lower end and 20°C narrower at the upper end). Select substitutes based on your specific temperature requirements.
Q: What is the difference between the three Molex part numbers (0050579012, 0050579212, 0050579312)?
A: All three Molex parts share identical electrical and mechanical specifications, insulation material, operating temperature range, and compliance status. They differ only in internal design or manufacturing revision. All are functionally equivalent for the 1-925369-2 application.
